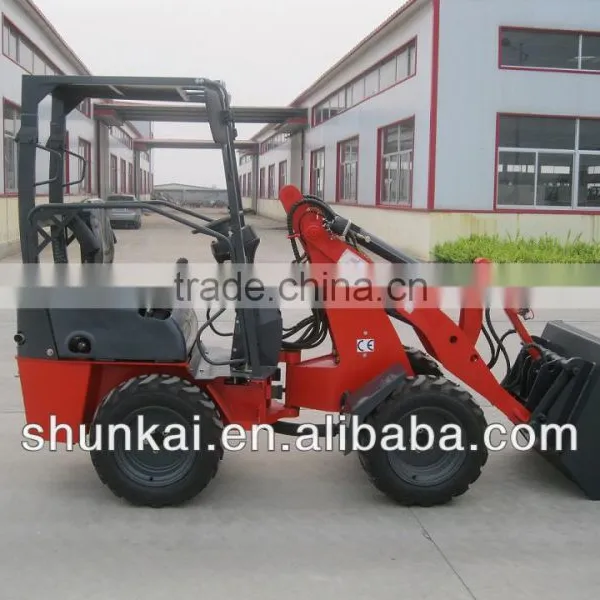

Help CenterNew Style CE 4WD Mini Wheel Loader , Optional Equipments
Related Products
-
CE Mini Skid Steer LoaderUS$ 8,050 - 8,500MOQ: 1 Unit -
CE Mini Skid Steer LoaderUS$ 8,050 - 8,500MOQ: 1 Unit
-
China Good Quality With CE Paper Mini Skid Steer LoaderUS$ 8,050 - 8,500MOQ: 1 Unit
-
Chinese Multifunctional Mini Loader With CE European StyleUS$ 12,000 - 15,000MOQ: 1 Unit
-
Chinese CE 4WD Good Quality Mini Wheel LoaderUS$ 11,500 - 13,500MOQ: 1 Unit

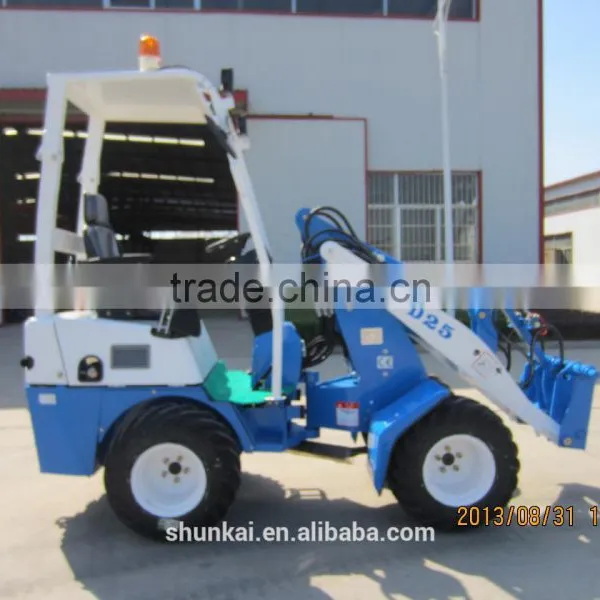

D25 Mini wheel loader with CE paper, hot selling in European Market:
Perkins Disel Engine |
|
Performance parameters |
||
Model |
403D-11 |
Bucket |
0.5m3 |
|
Rated power |
18.5kw(24.8BHP) |
Tipping load in shovel, vehiclestraight raight straight |
798kg |
|
Rated speed |
2800rpm |
Tipping load in shovel,vehicle at 68° |
498kg |
|
Maximum torque |
67Nm |
Operating weight |
1470kg |
|
The ratio of fuel consumption |
252g/kwhr |
The sum of the work device |
8s |
|
Dimensions |
Driving speed |
0-12km/h |
||
Overall size |
3690*1050/970*2300mm |
Minimum turning-circle radius |
||
Minimum ground clearance |
200mm |
Outside face of bucket |
1989mm |
|
Maximum dumping height |
2000mm |
Outside face of tyre |
1469mm |
|
Dumping reach |
600mm |
Tyre specifications |
27*8.5-15TL |
|
Wheel base |
1340mm |
Maximum turning angle |
±68° |
|
JOYSTICK AND QUICK HITCH
4 IN 1 BUCKET
ELECT POWER SWITCH
MINI EXCAVATOR
WITH CABIN AND GRASS FORK
LEFT AND RIGHT SIDE VIEW
ONE SET PACKAGE
ORIGINAL PERKINS ENGINE
FRONT VIEW
QUICK HITCH BUCKET AND FORLIFT
