High Efficiency flour mill plant
Application and Features of flour mill plant
This flour mill plant mainly uses in flour processing. This product strctures compact, design reasonable, contour artistic.
- Computerized auto-control,you can also manual cotrol or remote control in front of the mill.
- The rotate speed of feeding rollers will speed governing automaticly between 33r/min and 260r/min.
- The horizontal rollers constitute separate self-maintaining institution with the damping girder.
- Liquid crystal show the roll clearance,rotate speed of feeding rollers and percent of load power.
- It is equipped with denti-wedge belt drive of slow and quick roller
- The body of mill is welded with the high quality steel plate,sturdy and durable,beautiful apperance.
- The main control element and bearing are adopted the famous brand at home and abroad
Use reliable, smooth working, save power. Feeding series adopts double roller, and feeding uniformity, antomatism control, easy to operate, in the mill feed materials, resistance, It is a new equipment for wheat processing.
Technical data of flour mill plant
Project |
Unit |
specification |
||
Type |
|
FM30/1250 |
FM30/1000 FM25/800 |
|
Roller(diameter×long) |
mm |
Φ300×1250 |
Φ300×1000
|
|
Roller using range |
mm |
Φ300-Φ270 |
||
Fast roller speed |
r/min |
450-650 |
||
The fast and slow roller speed ratio |
|
1.25:1 1.5:1 2:1 2.5:1 |
||
Feeding roller speed ratio |
|
1:1 1.4:1 2:1 |
||
Half equipped with power |
electromotor |
|
6 level |
|
Power |
KW |
37,30,22,18.5,15,11,7.5,5.5 |
||
Main driver wheel |
diameter |
mm |
Φ360 |
|
|
Groove slot number
|
|
15N(5v)type 6 groove 4 groove |
||
Pneumatic working pressure |
Mpa |
0.6 |
||
Shape dimension(Long x width x high) |
mm |
2060×1590×1914 |
1810×1590×1914 |
|
Weight (about) |
Kg |
4500 |
4000 |
|

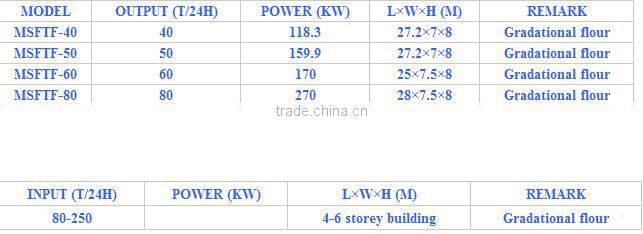

Photos of flour mill plant
