Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Multi-function Dry Ore Powder Ball Press Machine

Multi-function Dry Ore Powder Ball Press Machine

US$ 1,000 - 500,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Condition:

New

Contact Supplier Request Quote Chat Now

Henan Machinery & Equipment Company Limited

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN/QINGDAO/SHANGHAI PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name MS

Condition New

After-sales Service Provided Engineers available to service machinery overseas

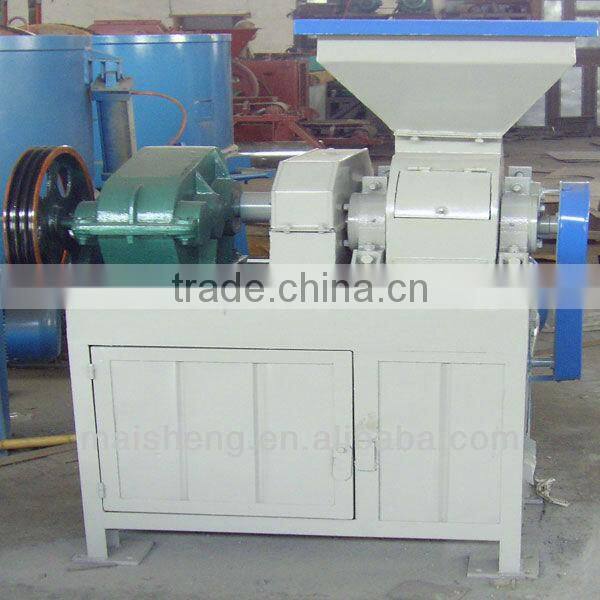

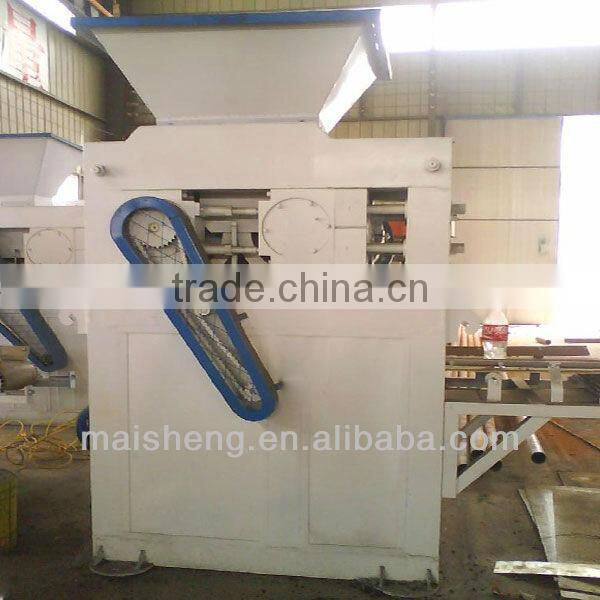

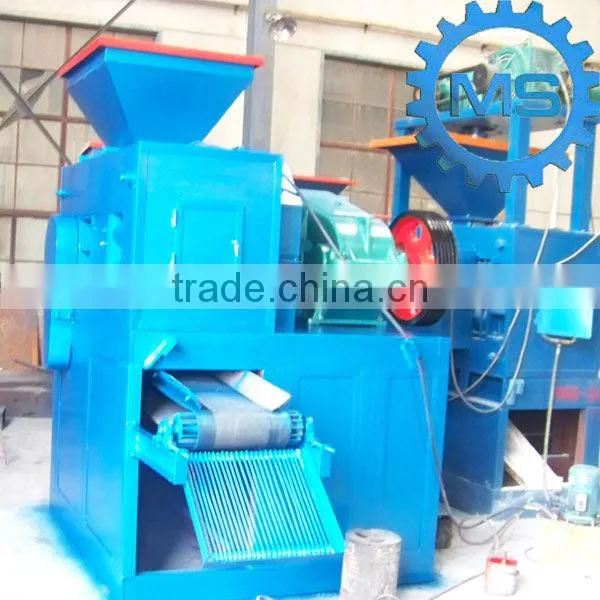

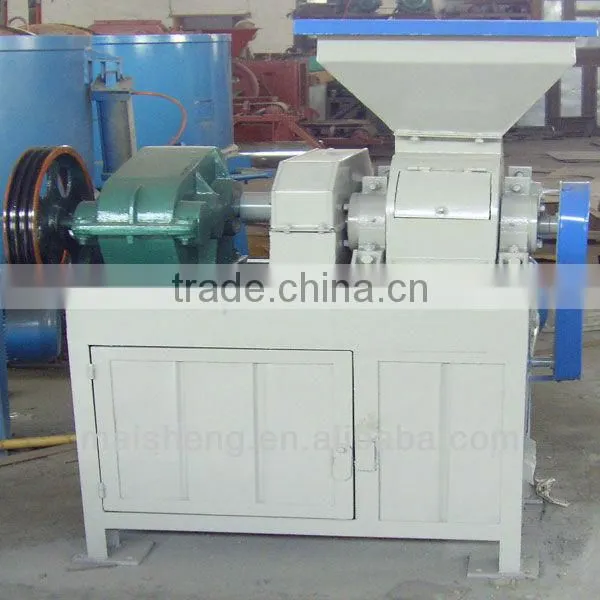

Multi-function dry ore powder ball press machine

Introduction of Multi-function dry ore powder ball press machine :

The machine can supress all kinds of mineral powder, metal powder, coal powder, coke powder and other materials to make them molded. Because of the mandatory squeeze rollers , so the products have the three high characteristics : high density ,high strength ,high hardness.Because of the mandatory squeeze rollers, so the products have high density, high strength, high hardness, and the local roll is used in 650Mn hard materials with good wear resistance. Effectively improve the life of a roll.

Working principles of Multi-function dry ore powder ball press machine :

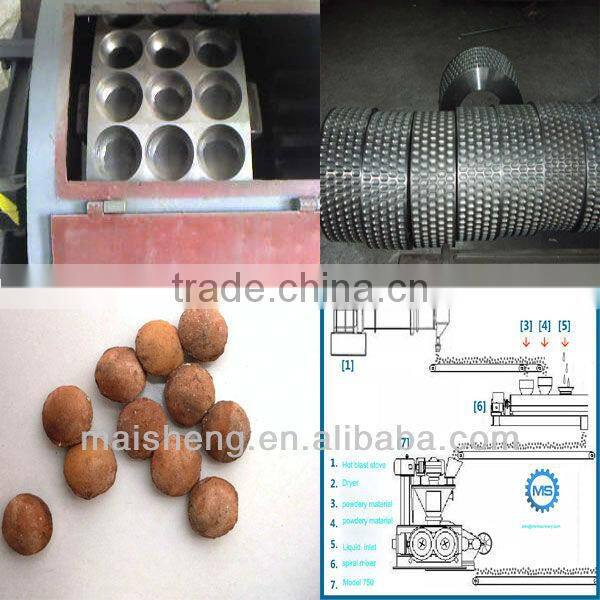

This series of briquetting machine will pass the power on to the two pressure roller through the reduction gears. The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

Technical parameters of Multi-function dry ore powder ball press machine

Spec Function	WLXM-360	WLXM-400	WLXM-500	WLXM-650	WLXM-750	WLXM-850	WLXM-1250
Capacity / hour	4t/h	8t/h	11t/h	18t/h	25t/h	35t/h	70t/h
Roller Width	250mm	280mm	300mm	336mm	400mm	500mm	650mm
Roller Dia	360mm	400mm	500mm	650mm	750mm	850mm	1250mm
Power	7.5kw	11-15kw	18.5-22kw	20-30kw	45kw	75kw	130kw
speed of mainshaft	18 t/m	15 t/m	13 t/m	13 t/m	13 t/m	10 t/m	10 t/m
Reducer	ZQ350	ZQ400	ZQ500	ZQ650	ZQ750	ZQ850	ZQ1250
Reducer	ZQ400	ZQ500	ZQ650	ZQ750
Pressure	Oblique iron constant pressure	Oblique iron constant pressure	Oblique iron constant pressure	Oblique iron constant pressure	Oblique iron constant pressure	Oblique iron constant pressure	Oblique iron constant pressure
	Axle draw bar	Axle draw bar	Axle draw bar	hydraulic type	hydraulic type	hydraulic type	hydraulic type
	H&C exchange	H&C exchange	H&C exchange	H&C exchange	H&C exchange	H&C exchange	H&C exchange
Roller bar	65Mn	65Mn	65Mn	65Mn	65Mn	65Mn	65Mn
			9cr2mn	9cr2mn	9cr2mn	9cr2mn	9cr2mn
	Alloy steel	Alloy steel	Alloy steel	Alloy steel	Alloy steel	Alloy steel	Alloy steel
structural style	Double shaft	Double shaft	Double shaft	Double shaft	Double shaft	Double shaft	Double shaft
structural style	Four-axis	Four-axis	Four-axis	Four-axis	Four-axis	Four-axis	Four-axis
Bearing	319*4	319*4	2097724*4	2097732*4	2097732*4	2097734*4	2097744*4
principal axis	95mm	110mm	135mm	165mm	165mm	180mm	225mm
principal axis	45# steel	45# steel	forging	forging	forging	forging	forging

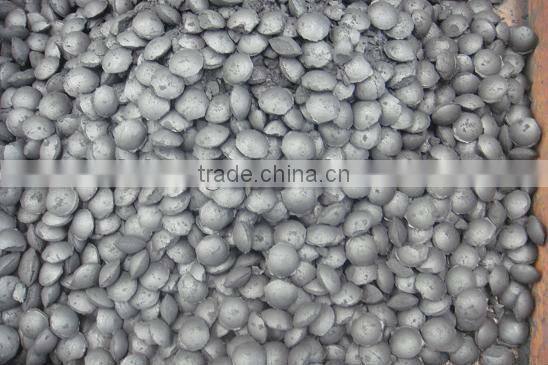

Sphere size	30-60mm	30-60mm	30-60mm	30-60mm	30-60mm	30-60mm	30-60mm
