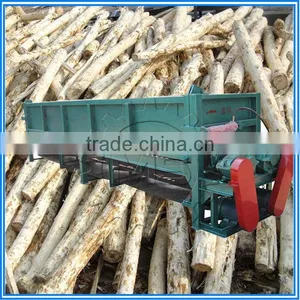

Single Roller Wood Debarker Wood Peeling Machine

Single Roller Wood Debarker Wood Peeling Machine photo-1
US$ 500 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Spindle Speed:
40-450 mm
Wood Diameter Range:
more than 30mm
Payment & Shipping
Payment Methods:
Port of Shipment:
All Chinese Main Ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Spindle Speed 40-450 mm
Wood Diameter Range more than 30mm
Peeling Rate >95% wood log debarker
Wood Loss Rate <2% wood log debarker
Wood Length Range more than 50cm
Place of Origin Henan, China
Brand Name MS BRAND
Model Number LM-9
Voltage 220/380 V
Power(W) according to model
Dimension(L*W*H) longer chute optional
Weight according to model, 3-4t
Certification ISO certificate
After-sales Service Provided Engineers available to service machinery overseas

Single roller  wood debarker wood peeling machine



 Operating Principle of  wood debarker wood peeling machine :

1. The  wood bark stripper  adopts open silo --wood stripper machine--wood is feeded from one side amd discharged from the other side.

2. Due to the impact of gear teeth on wood, wood in the casing not only do circulating movement, but turn around their own aix, so stripping efficiency is high. Species of difficult stripping trees such as eucalyptus wood and poplar can be peeled off with high rate.



Feature of  wood debarker wood peeling machine :



1.Using four point tool, easy to use, low cost.



2.Voltage controlled by the hydraulic cutter, advanced structure, reliable performance.



3.Continuously variable feeding mechanism of frozen material, bent wood, eucalyptus, oak, elm and other trees with

good hard peeling peeling effect.



4.Peeling high net production rate, a small wood damage.we Henan Machinery&Equipment company produces high efficiency and strong strucuture Wood Tree Skin Peeling Machine , Wood Skin Peeling Machine/Tree Debarking Machine .



Technical parameters of wood debarker wood peeling machine :

Specification

6Meters

(Single roller)

6Meters

(Double roller)

Capacity(t/h)

5-10

7-15

Power(kw)

7.5*2

7.5*2

Length(mm)

6300

6300

Width(mm)

1310

1310

Height(mm)

1550

1550

Weight(t)

3

4

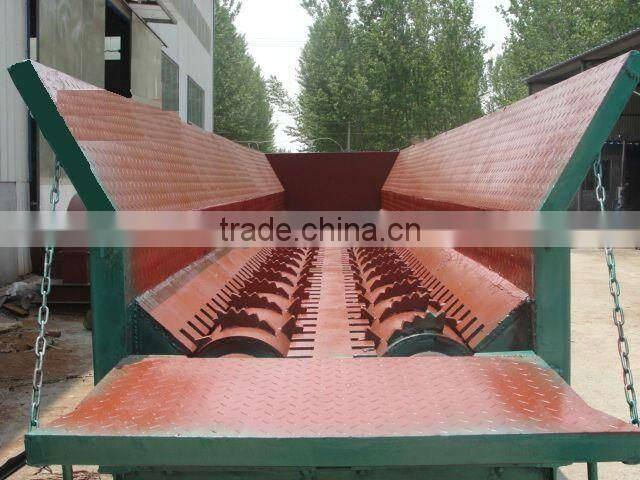

Single roller wood debarker wood peeling machine

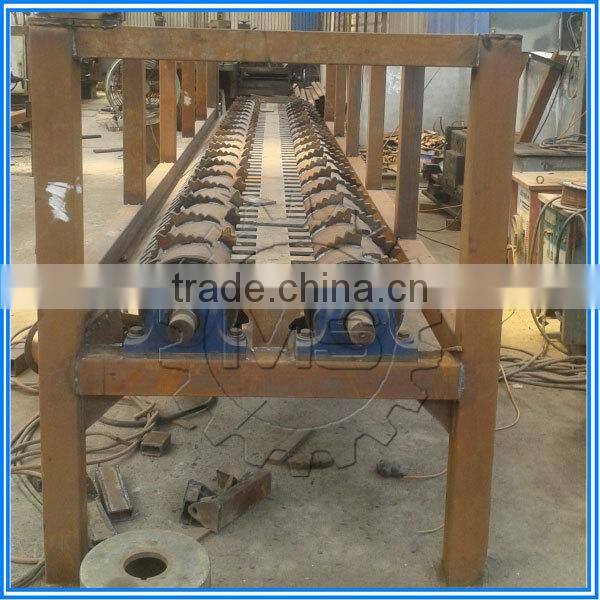

 Single roller wood debarker wood peeling machine

Single roller wood debarker wood peeling machineSingle roller wood debarker wood peeling machine



Should you have any interests,please feel free to contact us fo possible deal!



...
