Specifications
1.Technology corona discharge with ceramic plate2.Manufacturer
3.CE aproved
4 24 hours timer
5.0-35g adjustable ozone
Efficient air treatment machine
Technical specification:
Voltage : 220/110V 50/60Hz
Ozone output :0-35G/Hr which is adjustable
Ozone produce Medium : ceramic plate
Technology : corona discharge
Air flow : 240M3/Hr
Size :400*320*600mm
NW: 20.3Kg
Disinfection space:800-2500m3
Power:350w
Introduction
The electrostatic filter is removing only the solid particles and part of the odour generated by the cooking process. The remaining odour is a gas that needs to be treated with a very strong neutralizer. Ozone is a well-known powerful disinfectant. It will remove the smell from the kitchen exhaust system.
The generator ozone outlet is connected to the exhaust duct after the exhaust hood. The ozone needs a minimum contact time with the odour to be able to change its structure and destroy it. Two seconds is the ideal timing.
The ozone generator can be installed without an electrostatic filter if the cooking only generates grease mist (no smoke). The ozone breaks down the grease and odour by oxidation
Features:
1.Stainless steel 304 case
2. With high ozone concentration,high airoutput,far conveying distance
3. Large dust-proof and radiator-grid,with excellent heat dissipation and longlife
4. Lags welded for installation against wall
5. Side openning fans with dust filter
6. 100mm tube filter on top for ozone output
7.With 24 hours timer control
CONTROL PANEL INCLUDES
1. On/off switch with LED
2. Voltmeter
3. Ampermeter
4. Ozone output LED
5. Remote control
5. Ozone output adjustable switch
6. timer

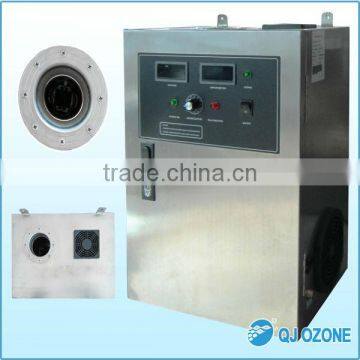

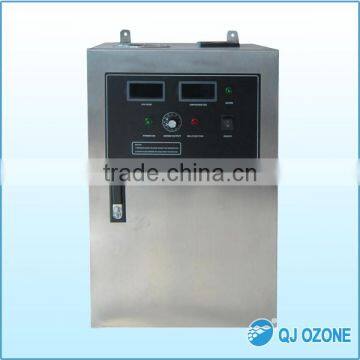

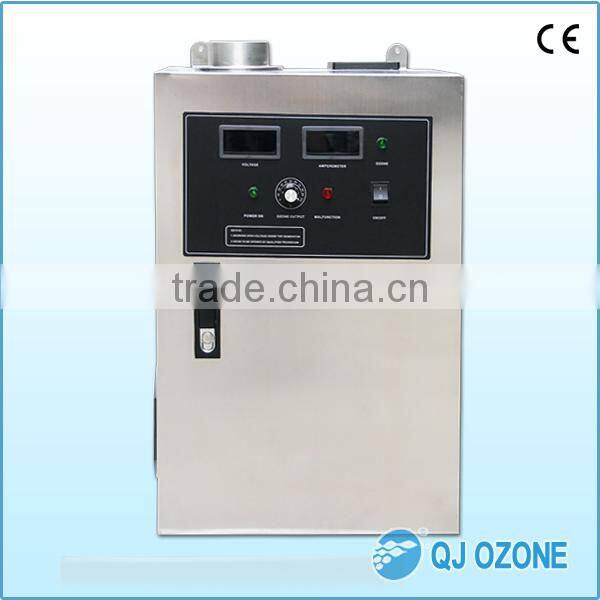

Machine picture

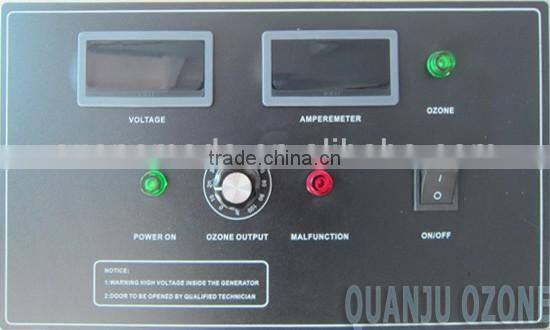

Control panel

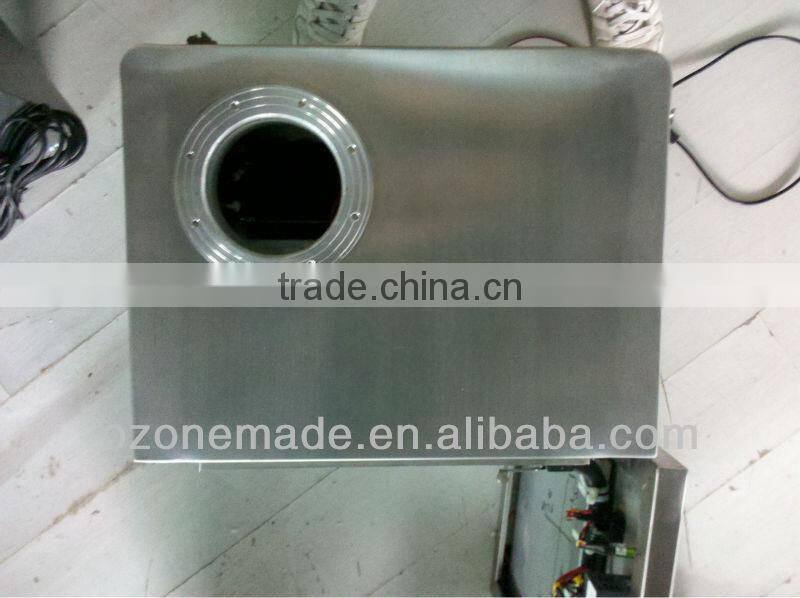

Ozone output outlet

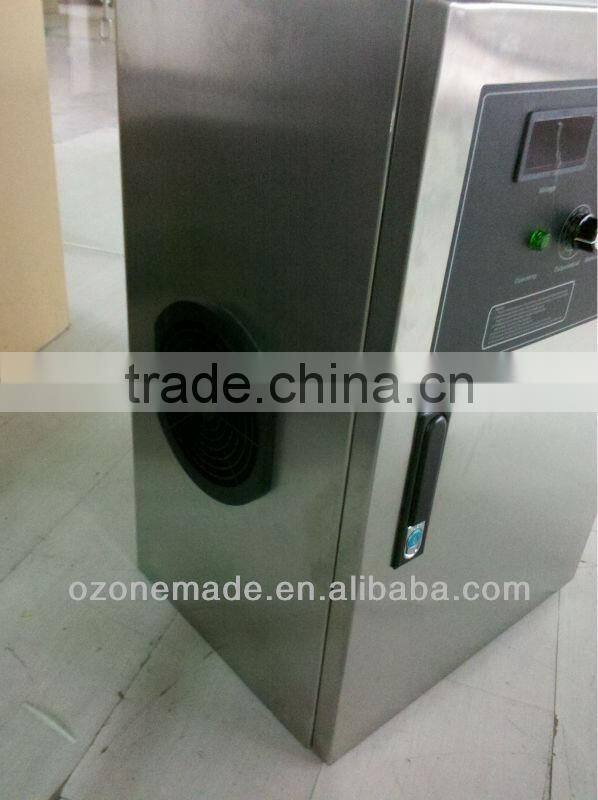

Cooling fan with dust filter
Application areas:
.animal breeding
.vegetable greenhouse
.mushroom cultivation
.industry space sterilization
.exhaust fumes treatment
Quanju Ozone specializes in manufacturing of ozone generator, PSA oxygen generator,car air purifier from 2003,with over 10 years hard working,we have grown into Guangzhou largest ozone generator manufacturer .covering area over 5,000 Sqm,with 90 workers.we can supply all kinds of ozone generator ,from 1g-2kg/Hr.Welcome your inquiry!
We can manufacture ozone genetator varied from 5grams to 2kg/hr ozone with oxygen feeding.also we can supply 500mg/hr to 2kg/hr ozone generator with air feeding, 3LPM to 300LPM PSA oxygen generator/concentrator,car air purifier with ozonizer and ionizer.
Guangzhou Quanju Ozone Tech Co. has been lined in small and medium size ozone generator manufacturer for over 7years,with high quality and resonable price for our dear customers.
Quanju ozone generators have been exported to many countries:
Chile,UAE,Korean,Malaysia,Hongkong,India, Indonesia, Australia, Brazil, Israel, Ghana, Italy, Turkey, Iran, England, Canada, Nigeria,USA, etc.
Ozone generaor packing : factory original package wooden case
Shipping:5-7 workingdays after payment.
