Construction Equipment Manufacturer mobile cement silo

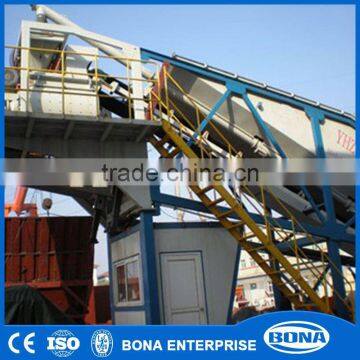

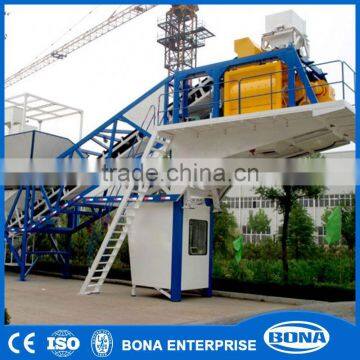

Bona YHZS series mobile concrete plant which adopts advanced technologies and scientific researching results from home and abroad and combines our company's year's mixing station producing experience,which is a new type mobile concrete mixing station designed by our company independently.It is convenient to move and easy to install.
Our senior engineers to ensure quality and durability.
- electric cheap concrete mixer plant for sale is built on a single sturdy
- chassis,no foundation required, 80% less than stationary concrete batching plants
- foundation costs.
- Compact modular design ensure less installation area and quick to easy installation-3
- days to start concrete production and 1 day for disassembling.
- Direct feeding of mixed material into transit mixer or concrete pump, ensure
- minimized concrete transportation costs.
- With twin shaft mixer as mixing device, these planetary 35m3/h mobile mini concrete
- batching plants have high efficiency and good performance
- Clean with high-pressure automatic cleaning system and support spare parts, Less
- maintenance and operating costs.
- low prices of electric cheap concrete mixer plant for sale.
- Fast return on investment.
Mobile Concrete Mixing Plant Main specification | ||||
model | YHZS25 | YHZS35 | YHZS50/60 | YHZS75 |
Theoretical capacity | 25m3/h | 35m3/h | 60m3/h | 75m3/h |
Mixing unit | JS500 | JS750 | JS1000 | JS1500 |
Max. aggregate size | 60mm | 60mm | 80mm | 80mm |
Size of aggregate silo | 4x4m3/2x11m3 | 4x5.5m3/2x11m3 | 2×11m3 | 2×11m3 |
Scale of aggregate | 1000Kg ±2% | 2500Kg ±2% | 3000Kg ±2% | 3750Kg ±2% |
Scale of cement | 300Kg ±1% | 600Kg ±1% | 720Kg ±1% | 900Kg ±1% |
Scale of water | 200Kg ±1% | 300Kg ±1% | 360Kg ±1% | 450Kg ±1% |
Scale of additive agent | 20Kg ±1% | 20Kg ±1% | 36Kg ±1% | 45Kg ±1% |
Power of whole unit | 35Kw | 60Kw | 85Kw | 105Kw |
Quality of whole unit | 20T | 24T | 24T | 27T |
Transport way | Semi-trailer | Semi-trailer | Semi-trailer | Semi-trailer |
Outline (working statue: | 17.3mX3.4m X7.41m | 17.3mX3.4m X7.41m | 17.7m×3.6m ×8.2m | 18.1m×3.6m ×8.2m |
length×width×height) | ||||
Outline (transport statue: | 17mX2.4mX4.34m | 17mX2.4mX4.34m | 18.3m×2.4m×4.35m | 18.6m×2.4m×4.35m |
length×width×height | ||||
The cemnt silo is a new model silo which is transported to ther work site to connect by bolts after through the modular production and processing.Small area occupancy,Height and diameter are optional in a wide range.the normal service life up to 30 years. | The screw conveyor is LSY type screw conveyor,it adopt high quality steel pipe,double pitch paddles,high quality reduction gear box and optional universal ball joint.It specially apply for transporting power material from concrete bin to mixer in mobile cement silo. | The weighting system is one important part in concrete batching plant,so we have an very accurate weighting system,This system includes water weighing,cement weighting,fly ash weighting.It’s accurate let you complete your project perfect. |
The mobile concrete batching plant use JS series concrete mixer as main engine.This kind of mixer is twin shaft compulsory concrete mixer,advanced production technology to ensure the clearance uniformity between mixing blades and liners. | The main function of belt conveyor in concrete bachting plant is transfering the aggregate,let it be more convenient and fast,improve the efficient of production.Our belt conveyor use tough belt conveyor,can bear long time work time. | PLD batching machine is the sand batching device with loading machine or belt conveying machine feeding,it can be configured cumulative measuring method and independent measuring method according to the size of concrete plant. |
Package terms: Easily damaged part use sturdy wooden case and cartons packing.
Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time: 10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.
Established in 2005, Zhengzhou Bona Enterprise Co., Ltd is one of the major Construction and Engineering Machinery Manufacturers and Exporters in Henan.We come from the largest manufacturing base of Construction Machine in Zhengzhou, China, and we have built firm relationships with our suppliers of materials & components. Thus we can reduce the cost of our products and ensure the benefit of our customers.As an ISO 9001:2000 certified company, we insist on “Innovating, Perfect, Quality and Service”, and earn a good reputation in the worldwide market.....Read more
1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)
4. Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer spare parts free of charge
If spare part of mobile cement silo is broken and the problems caused by our quality. we will repair in free of charge.
