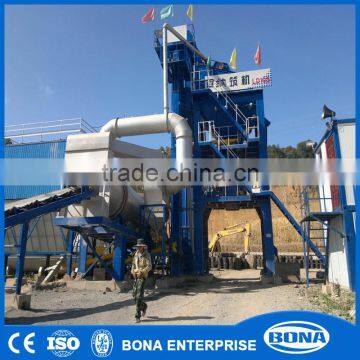

Cold asphalt mix design asphalt plants in nj

FOB Price

USD $100,000 - $260,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Unit / Units per Month
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	BONA	Model Number	LB1200
Voltage	380v	Power(W)	230kw
Dimension(LWH)	10*40HQ	Weight	120t
Certification	ISO&CE	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Cold asphalt mix design asphalt plants in nj

LB series asphalt plants nj includes 12 systems: Cold aggregate batching system; Heating and Drying
System; Lifting System;Screening System; Weighing System; Mixing System; Dust Filter System; Powder Supply System;
Asphalt Supply System, Finished Products Storage System; Air Circuit System and Electrical Control System.
LB1500 asphalt mixing plant is a middle-type stationary batch asphalt mixing plant, widely used in road construction,
like expressway or highway build and maintenance.

Senior engineers to ensure quality and durability.

User-friendly control
Low manpower involvement
Fast and easy installation and start up
Durable and reliable
Low maintenance cost
Excellent fuel efficiency

LB asphalt plants nj Technical Specification
Model	LB750	LB1000	LB1200	LB1500	LB2000	LB2500	LB3000
Rated capacity(t/h)	45-60	60-90	90-105	110-125	140-175	180-200	200-240
Mixer capacity(kg)	800	1100	1250	1600	2200	2500	3000
Cold hopper(m3)	4*6.5	4*6.5	4*6.5	4*8	5*8	5*8	5*10
Drying drum(Diameter*Length)	1.2*5.2	1.5*6.6	1.8*8.0	1.8*8.0	2.2*9.0	2.6*9.5	2.6*9.5
Bag filtering area(m2)	230	420	420	450	560	620	917
Vibrating screen	4	4	4	4	5	5	5
Bitumen heating boiler(*104Kcal/h)	15	30	30	40	50	50	75
Bitumen tank Capacity(L)	1*30,000	1*40,000	1*40,000	2*40,000	3*40,000	3*40,000	5*40,000
Hot mixture storage silo(ton)	15	30	30	30	30	70	80
Control system	PLC+ colorized touching screen/computer

Product Description

1	The cold material ration system	5	Measuring system	9	Asphalt feeding system
2	Dry heating system	6	Mixing system	10	gas path system
3	Hoisting system	7	Dust pelletizing system	11	electrical control system
4	Screening system	8	Filler feeding system

Product details

The optimal design of lifting blades repeatedly (patent no. 200520031574.1), and a new aluminum foil coated insulating layer, effectively reduce the heat losses in drying drum, save fuel consumption, improve the thermal efficiency Drying cylinder combustion zone adopts wear-resisting, heat-resisting material, long service life

Chain bucket elevator with spring tensioner automatically, smooth running.

High strength and durable screen mesh; segmented mesh layout, 270°C screen opening that is convenient to replace new mesh.

Complete seal of whole body, with negative pressure design inside to avoid dust emission.

hot aggregate use rough and accurate weighing, combined with automatic impulse compensation program, which will guarantee high weighing accuracy.

Advanced computer automatic compensation function, which will ensure much more accurate weighing control system.

modular and integrated design make plant transportation and installation convenient, set with enough space for maintenance and safety device, running under the micro negative pressure circumstance will prevent filler floating.

Full circulating and three dimensional mixing, uniform and efficient; equipped with safety devices; mixing paddle and liner board are made of wear-resistant cast alloy with long service life.

multi-stage dust collection, different size of filler will be collected and recycle which will improve the utilization of asphalt batch mix plant india Parts.

Bag house filter adopted DUPONT NOMEX filter bags, waterproof and oil-filter; high pressure compressed air impulse blowing system that will be much more efficient to clean dust, which will meet the environmental emission standards.

container control room will be convenient for transport, double layer design for heat reservation and wide vision, annexed ergonomics user-friendly make the operator work easily in complex producing site.

Optional: Automatic/Semi-automatic/Manual mode; easy to be understood and learned for operator.

Optional: PC or Color touching screen; equipped with functions of production formula and production data storing.

asphalt plants nj details show:

Hot sale

Model:LB750 Mode: LB1000 Model:LB1200 Model:LB1500

Capacity:45-60t/h Capacity:60-90t/h Capacity:90-105t/h Capacity:110-125t/h

Click here see more Click here see more Click here see more Click here see more

Model:LB2000 Mode: LB2500 Model:LB3000 Model:BN60

Capacity:140-175t/h Capacity:180-200t/h Capacity:200-240t/h Capacity:45-125t/h

Click here see more Click here see more Click here see more Click here see more

Packaging & Shipping

Package terms: Easily damaged asphalt plants nj part use sturdy wooden case and cartons packing.
Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time: 10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.

Our Services

1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)

4. Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer spare parts free of charge
If spare part is broken and the problems caused by our quality. we will repair in free of charge.
