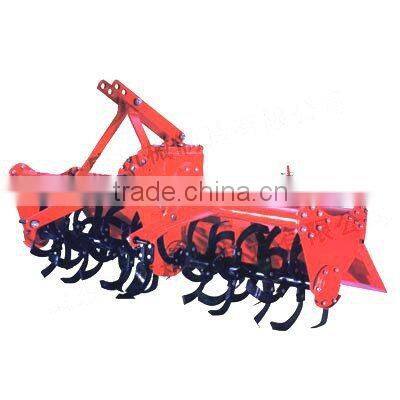

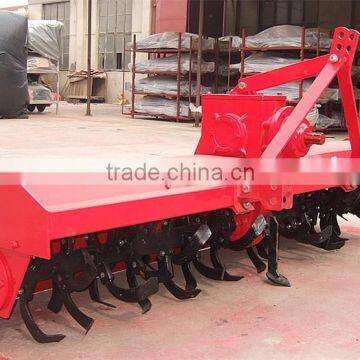

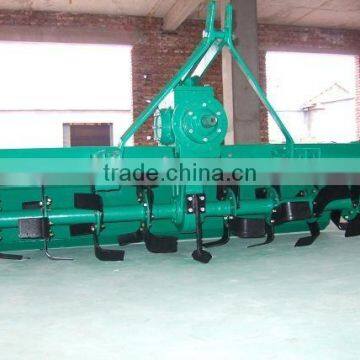

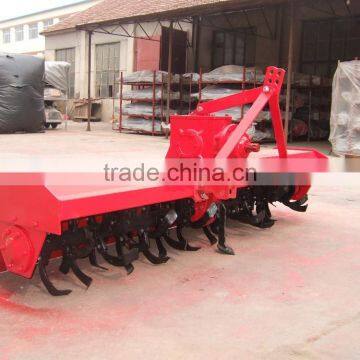

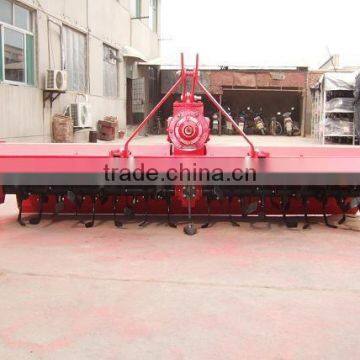

Rotavator
Wide coverage,symmetric hanging structure covering tire mark,reliable quality,high performance suitable for dry land and paddy fields,saving time and effort,with low cost,etc.
Our company has been a reliable and excellent manufacturer of disc blades, plough discs , disc harrow , disc plough and disc ridger .We can supply all various discs according to customers' drawing and samples .
Model | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | ||
1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | |||
Matched Power | 12~15hp | 18~20hp | 20~25hp | 25~30hp | 30~40hp | 50~55hp | 55~75hp | 60~80hp | 75~80hp | 80~120hp | ||
Working width | 1000mm | 1250mm | 1400mm | 1500mm | 1600mm | 1800mm | 2000mm | 2200mm | 2500mm | 3000mm | ||
Working Depth (mm) | Dry land | 120~160 | 120~180 | |||||||||
Paddy field | 140~160 | 140~200 | ||||||||||
No. of blades (pcs) | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | ||
Type of blade | IT225 | IT245 | ||||||||||
Total weight ( kg ) | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | ||
192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | |||
Overall Dimension (MM) | L | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
W | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
H | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
Linkage | Three-point mounted | |||||||||||
