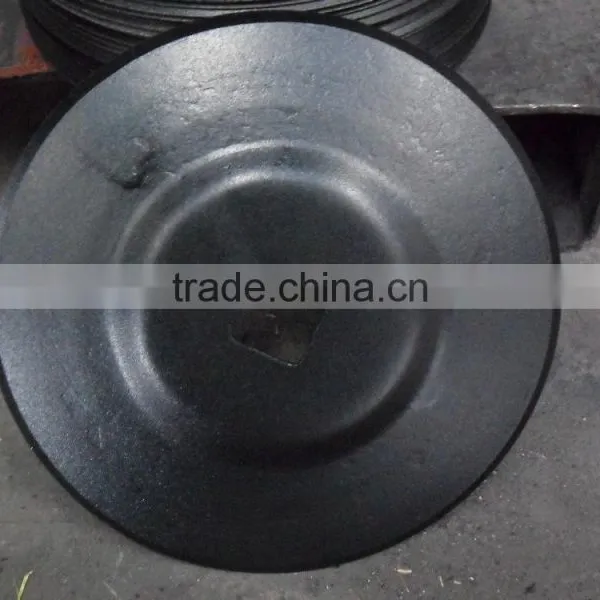

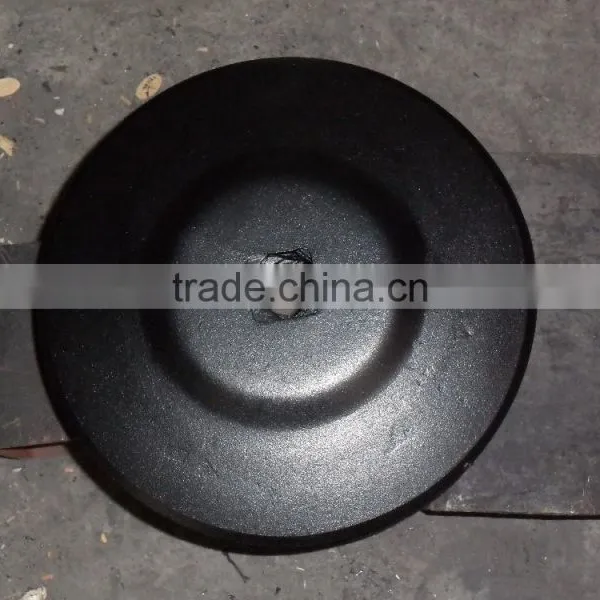

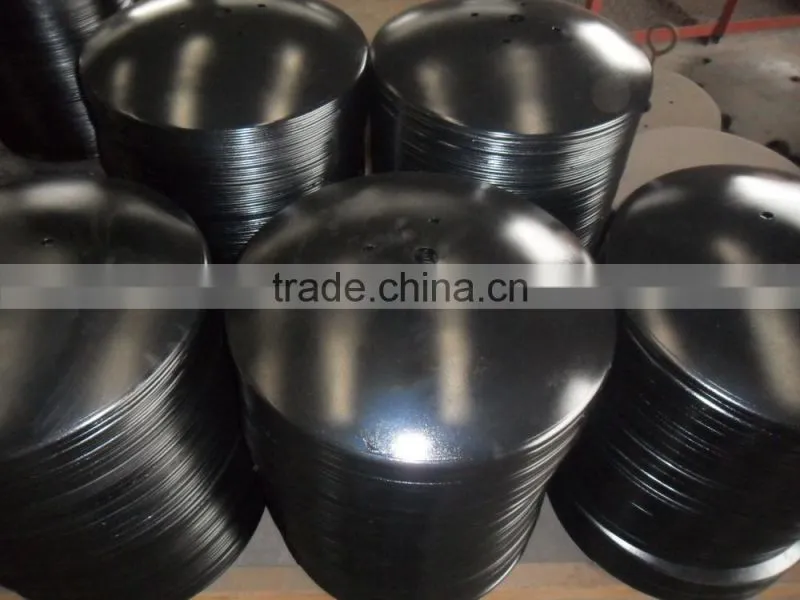

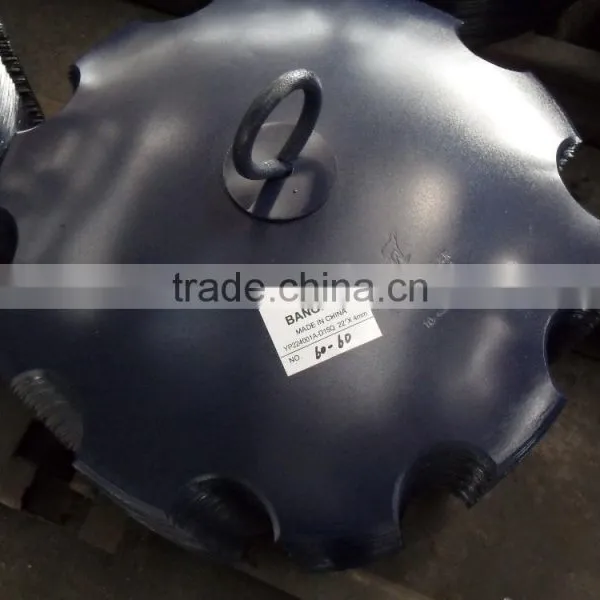

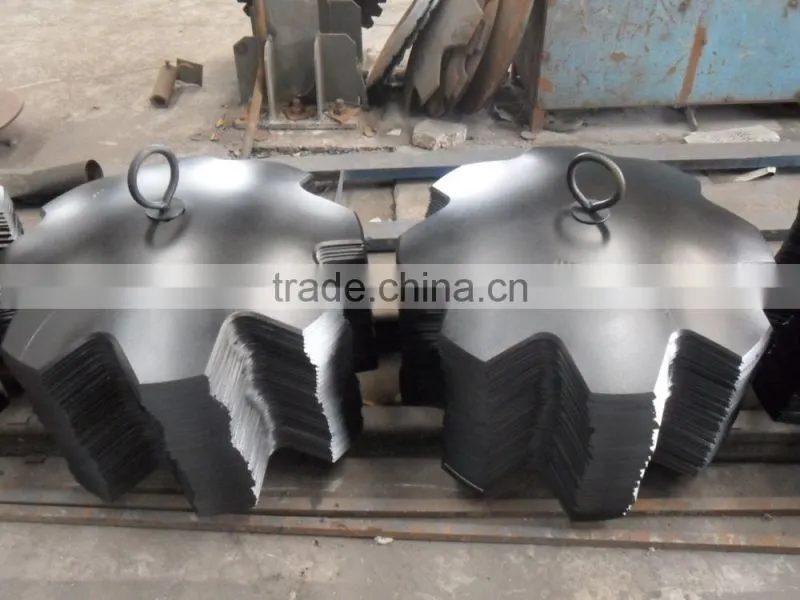

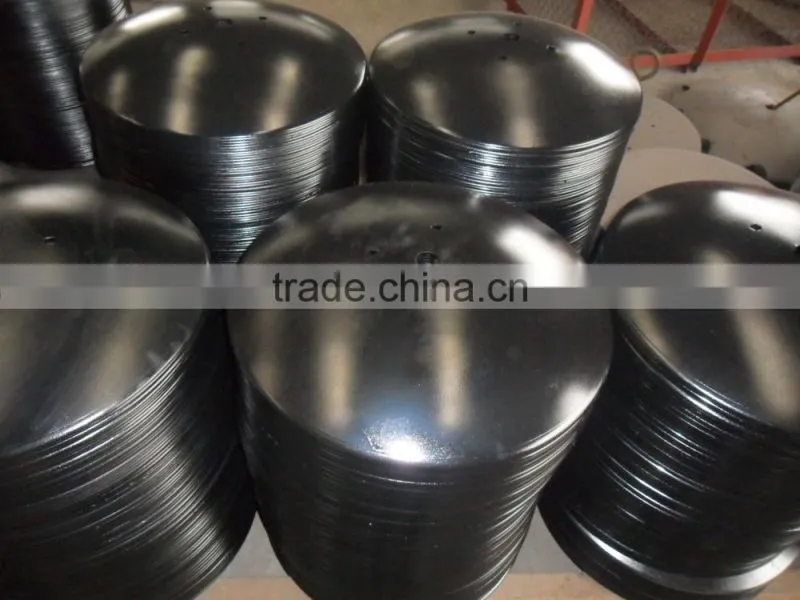

disc blades for farm cultivator :
disc blades for farm cultivator :
The material of the disc blade is 65Mn or 30MnB steel .
We can product the harrow disc blades in diameter from 10'' to 46'' .The thickness from 3mm to 12mm.
With heat treatment and peen-forming , have 38-46HRC hardness .
Agricultural Disc blades exported scope :
1. The United States
2. Brazil
3. Peru
4. Southeast Asia
5. East Africa
6. Austrail and so on
Our disc harrow blades Advantage :
1. Material : 65Mn Spring Steel , it is one of the best material to do disc blades in domestic .
2. Process : we have produced disc blades for more than 10years, the heat treatment and peen-forming is very skilled .
agriculture disc blades specification :
We can produce so many types of disc blade farm, also we can produce according to your drawings or samples.
We also export the Semi-finished disc blade!
Diameter |
Overall dimension |
Thickness |
|
mm |
inch |
mm |
Mm |
305 |
12 |
19 |
3 |
330 |
13 |
25 |
3 |
355 |
14 |
38 |
3 |
410 |
15 |
38~50 |
3 |
430 |
17 |
57 |
3;4 |
460 |
18 |
38~60 |
3;4 |
480 |
19 |
57 |
3;4 |
510 |
20 |
44~63 |
3;4;5 |
535 |
21 |
63 |
3;4;5 |
560 |
22 |
60~85 |
4;5;6 |
585 |
23 |
75~90 |
4;5;6 |
610 |
24 |
75~95 |
4;5;6 |
660 |
26 |
86~115 |
5;6;7;8 |
710 |
28 |
100~130 |
5;6;7;8 |
760 |
30 |
120~135 |
6;7;8;10;12 |
810 |
32 |
120~140 |
8;10;12 |

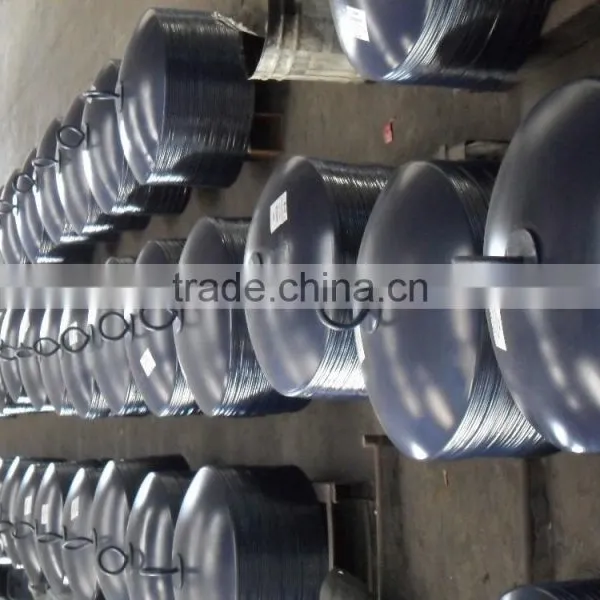

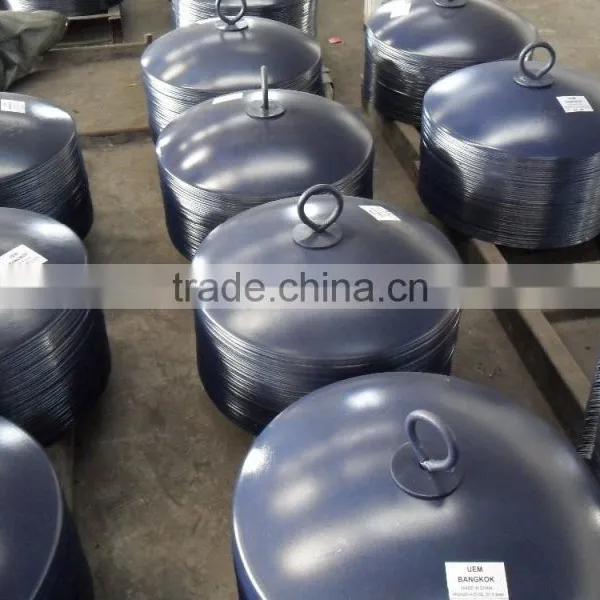

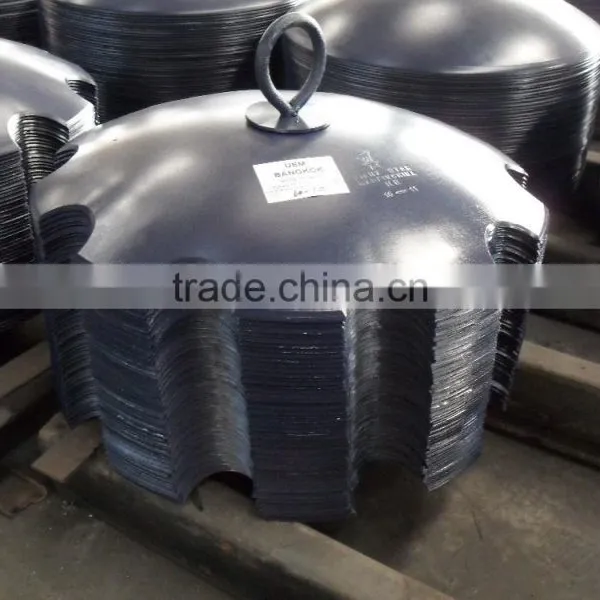

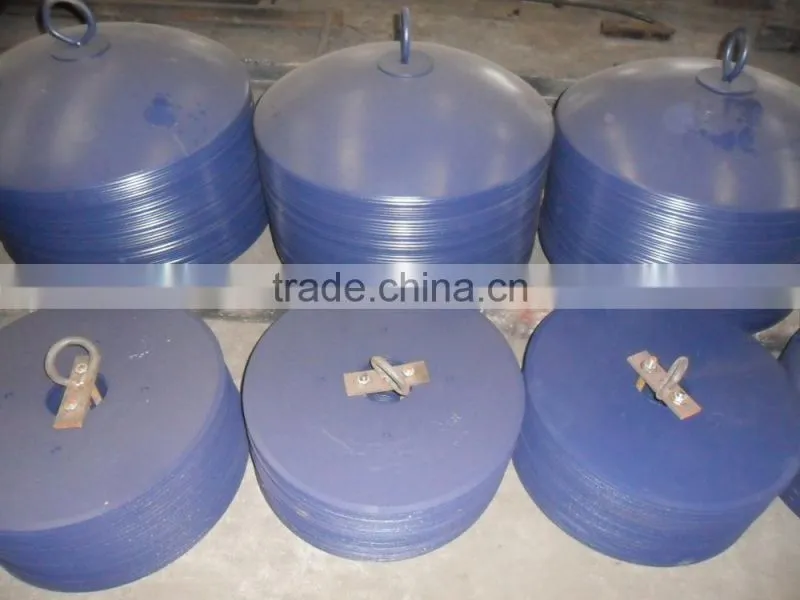

50pcs or 100pcs packed in one rings .
Our company can produce many other kinds of farm machine, look at the following pictures :
