Help CenterMeat Mincing Machine
Related Products
Specifications
NT-012 use the worm gear and worm driveNT-022 use the Closed gear transmission
* Smooth and reliable running, low-noise

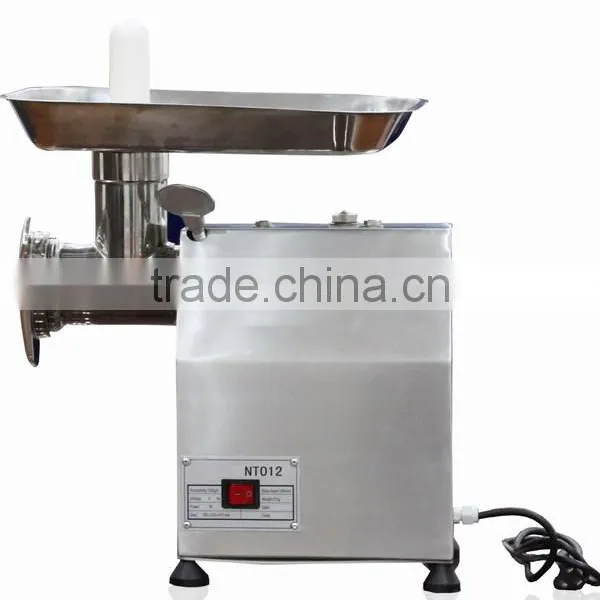

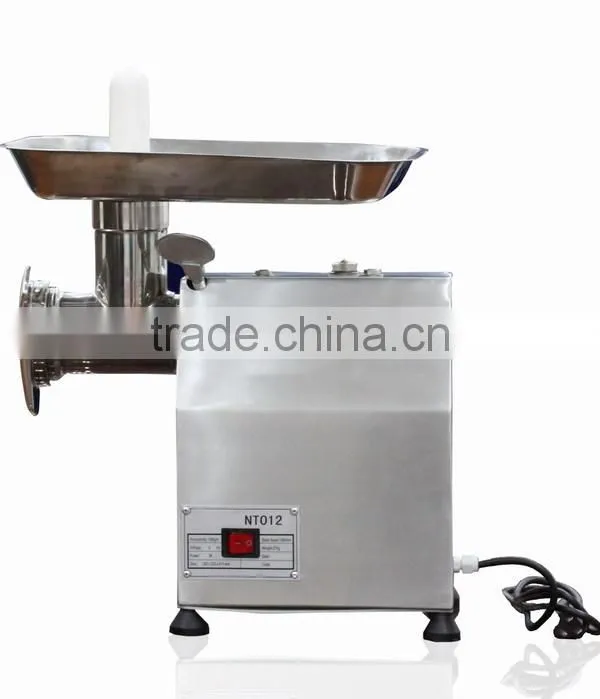

NT Series Meat Mincing Machine Operation Instructions
Features
NT Series meat mincing machines made by NEWSMART are designed basing on international advanced technology and our creative concept.
* Compact structure
NT-012 use the worm gear and worm drive
NT-022 use the Closed gear transmission
* Smooth and reliable running, low-noise
* All stainless steel 304; safe, hygienic and aesthetic
* All parts can be disassemble and reassemble easily, easy to clean
* High efficiency: can process with meat 120kgs-260kgs per hour
* A overload protector can protect the motor
Applications
* Guesthouse
* Restaurant
* Canteen
* Meat Processing Plant
Technical Specifications
TYPE |
NT-012 |
NT-022 |
Productivity (kg/h) |
120 |
250 |
Speed of Blade (r/min) |
190 |
170 |
Motor (W) |
550 |
800 |
Voltage (V) |
110/220/380 |
|
Dimemovensions (mm) |
390x225x415 |
410x240x450 |
Weight (kg) |
27 |
36 |
Operation and Maintenance
- 1. Before using, check that the power supply corresponds to that required by the machine, and that the external carthing wire is reliable connected.

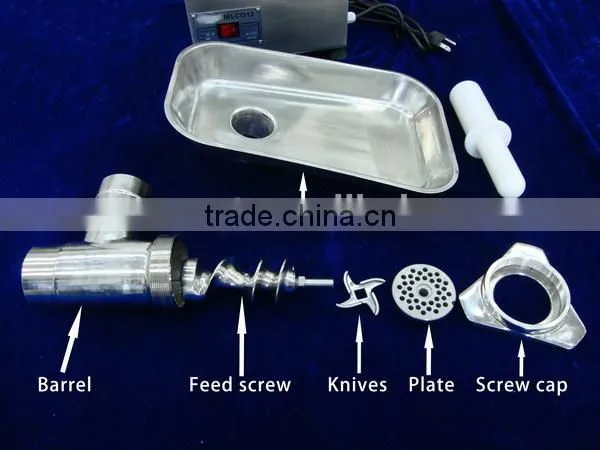

- 2. Remove the head from the machine, wash the parts dismounted with clean water, then reassemble them as directed in figure.
- 3. Before mincing, first turn lock-handle counterclock wise, tight the front nut but not too tight.
- 4. Remove skin and bone from the meat to be minced, cut them into smaller pieces.
- 5. Feed the pieces into mincing chamber with the feed-stick supplied. Don’t use other matter.
- 6. Disassemble the head and wash it with clean water immediately after each use. As to avoid bacteria growth.
- 7. If the minced meat is not discharged smoothly or in the form of paste, the causes and remedies could be:
A) Front nut is tighten too much thus the mincing blade does not contact properly with the discharge plate. Re-adjust it.
B) The discharge plate is blocked. Clean it.
C) Blade edges is dull. Grind or replace it.
Notes about use of single phase motor.
Before use, cheek that local power supply is suitable for the motor. The voltage difference is ±5% of the rated voltage. If the voltage is higher than 230V or lower than 210V, then use a transformer or stable supply unit which power is 10% higher than that required by the motor.
Notes about use of three phase motor.
1) For first use, check that the machine rotates in the direction indicated by the arrow.
2) Before the machine is turn on, remove the front nut, output plate, mincing cutter and feed screw from the machine. Avoid to damage the parts in case of wrong rotation.
3) After the rotation direction is correct, install the feed screw , mincing cutter, output plate and front nut to the machine according to the above sequence, the machine is used.
