Marine Bronze Screw-down Check Angle Valves/ Angle Stop Valve
- 1000 Set / Sets per Month
- dalian
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Angle | |
| Pressure | Other, Medium Pressure, 5 & 16kgf/cm2 | Power | Manual | |
| Material | Other, Bronze, Bronze | Temperature of Media | Medium Temperature | |
| Media | Other, Crude oil, finished oil, Steam, Acidiferous and alkalinous fluid | Port Size | JIS F7352 & JIS F7410 | |
| Place of Origin | Chongqing, China | Model Number | JIS F 7352 & JIS F7410 | |
| Brand Name | BM | Application | Other, Maritime, Industry, etc |
Product Description

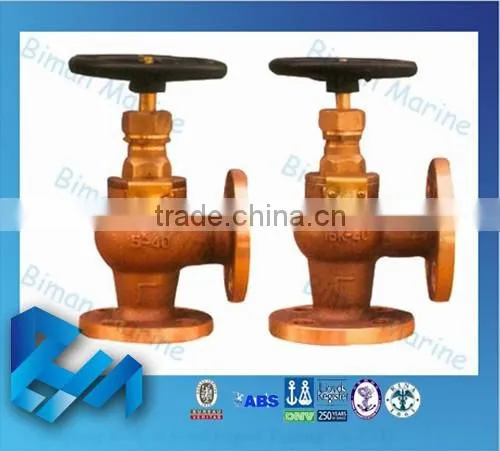

Marine Bronze Screw-down Check Angle Valves / Angle Stop Valve
1.Standard: JIS F7352 & JIS F7410
2.Size: DN15~DN40
3.Material: Bronze
4.Pressure: 5Kgf/cm2 & 16Kgf/cm2

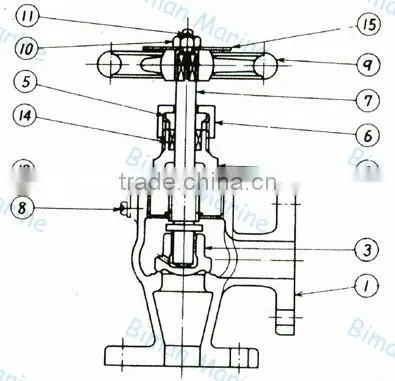

Marine Bronze Screw-down Check Angle Valve/ Angle Stop Valve
1. The flow path is simple, small dead zone and vortex area, scouring action by means of the media itself, which can effectively prevent the media from clogging. And has good self-cleaning properties.
2.Small flow resistance, flow coefficient smaller than the single seat valve, equivalent with the flow coefficient of double-seat valve.
It's suitable for the case of high viscosity fluid containing suspended particulate matter,or to request a place at right angles to the pipe. Its flow is generally bottom into the side.
Specifications about Marine Bronze Screw-down Check Angle Valve
Rating
| SIZE | FACE TO FACE | FLANGE | HEIGHT | HANDLE DIA | WEIGHT | ||
(mm) | (mm) | DIA | PCD | BOLT HOLE | (mm) | (mm) | (Kg) | |
5kgf/cm2
(F7352) | 15 | 50 | 80 | 60 | 4-12 | 120 | 80 | 1.92 |
20 | 60 | 85 | 65 | 4-12 | 130 | 100 | 2.64 | |
25 | 65 | 95 | 75 | 1-12 | 145 | 125 | 3.3 | |
32 | 80 | 115 | 90 | 4-12 | 150 | 125 | 4.63 | |
40 | 85 | 120 | 95 | 4-15 | 165 | 140 | 5.81 | |
16kgf/cm2
(F7410)
| 15 | 70 | 95 | 70 | 4-15 | 120 | 80 | 2.67 |
20 | 75 | 100 | 75 | 4-15 | 130 | 100 | 3.56 | |
25 | 85 | 125 | 90 | 4-19 | 145 | 125 | 5.02 | |
32 | 95 | 135 | 100 | 4-19 | 150 | 125 | 6.58 | |
40 | 100 | 140 | 105 | 4-19 | 165 | 140 | 7.95 | |
Marine Bronze Screw-down Check Angle Valve/ Angle Stop Valve
Other Related Valves:
Valves: Butterfly Valve ; Globe Valve ; Gate Valve ; Check Valve ; Angle Valve
Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump
Sewage Pump: Submersible Sewage Pump; Sewage Crushing Pump
Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump
Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump
Other Biman Valves
Why Choose BM
A. Excellent service before purchasing
B.M know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.
B. Guaranteed quality
Most products which B.M offered are with high quality and also provide warranty to security benefits.
C. Rich experience and Customized Products
B.M has enormous resources of various marine equipment. All of our products are customized.
We can offer products according to your detail equipment and drawings.
FAQ
How to order Valves from Biman?
- Please tell us the Size, Pressure and Quantity and other request you need.
- If you have the certificate requirements, please let me know.
- We'll make quotation for you. After your confirmation, PI will send to you.
- We'll arrange the order for you after receiving your payment
- After the goods finished, we send the goods to you and tell you the tracking number.
