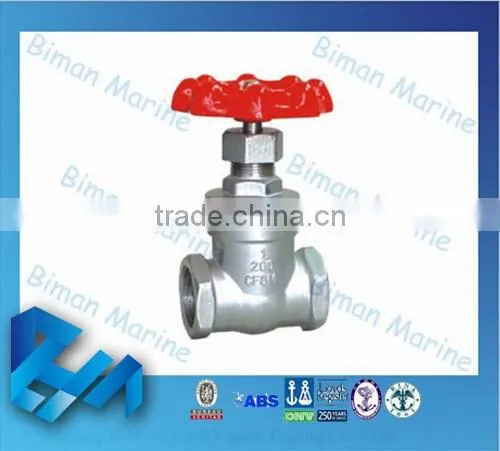

MARINE Stainless Steel 316 Gate Valve for Pipe
Marine Stainless Steel 316 Valve for Pipe
Gate valve is a valve that the valve plate moves along the vertical direction in the pipeline.
Application Norm
Size:1/4"-4"(DN8-DN100)
Temperature range: -40°c~+180°c ~ +250°c
Suitable medium:Gas Water Oil Acid

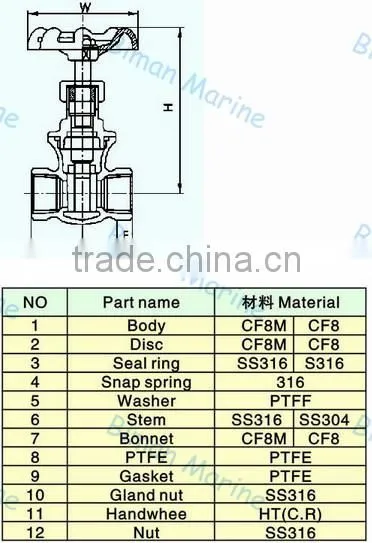

Specifications about Marine Gate Valve
Valve size inch |
½ 15 |
¾ 20 |
1 25 |
1 ¼ 32 |
1 ½ 40 |
2 50 |
2 ½ 65 |
3 80 |
4 100 |
ØA (mm) |
54 |
54 |
60 |
71 |
71 |
77 |
110 |
120 |
150 |
B (mm) |
75 |
85 |
90 |
105 |
114 |
138 |
166 |
190 |
226 |
C (mm) |
42 |
44 |
52 |
56 |
62 |
66 |
80 |
89 |
110 |
ØD (mm) |
15 |
19.5 |
24.5 |
30 |
35 |
46 |
60 |
72 |
90 |
E (mm) |
9.5 |
12 |
13 |
14.5 |
15 |
16 |
20 |
22.5 |
27 |
Sw (mm) |
26 |
32 |
38 |
48 |
54 |
67 |
83 |
94 |
125 |
Weight (g) |
270 |
330 |
450 |
630 |
830 |
1380 |
2200 |
2840 |
5600 |
Pcs/ box |
10 |
10 |
6 |
4 |
4 |
2 |
1 |
1 |
1 |
Marine Stainless Steel 316 Gate Valve for Pipe
Other Related Valves:
Valves: Butterfly Valve ; Globe Valve ; Gate Valve ; Check Valve ; Angle Valve
Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump
Sewage Pump: Submersible Sewage Pump; Sewage Crushing Pump
Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump
Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump
Other Biman Valves
Why Choose BM
A. Excellent service before purchasing
B.M know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.
B. Guaranteed quality
Most products which B.M offered are with high quality and also provide warranty to security benefits.
C. Rich experience and Customized Products
B.M has enormous resources of various marine equipment. All of our products are customized.
We can offer products according to your detail equipment and drawings.
FAQ
How to order Valves from Biman?
- Please tell us the Size, Pressure and Quantity and other request you need.
- If you have the certificate requirements, please let me know.
- We'll make quotation for you. After your confirmation, PI will send to you.
- We'll arrange the order for you after receiving your payment
- After the goods finished, we send the goods to you and tell you the tracking number.
