Help CenterMalaysia Type Concrete Vibrator With Honda Engine
Related Products
Specifications
Malaysia Type Concrete Vibrator1.stable operation
2.good mechanical performance
3.good anti-wear performance
4.low noise

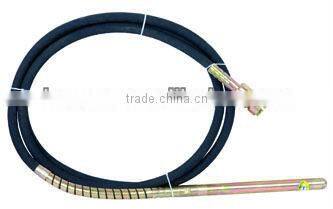

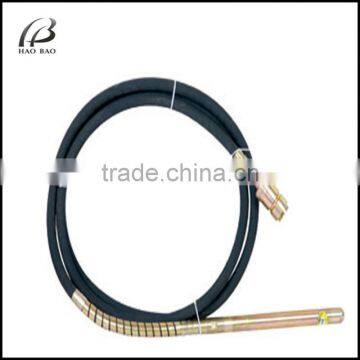

Malaysia Type Concrete Vibrator
Concrete vibrator is widely used in roads, bridges, tunnels, and a variety of floor-based precast concrete beams and cast construction site an important tool, you can use a small gasoline engine or electric motor driven vibrator is not available on-site construction of concrete the lack of an ideal tool.
|
Vibrating Head Dimension |
Vibration (V.P.M) |
Vibration Aplitude (mm) |
Flexible Shaft Diameter |
Rubber Hose Diameter and Length |
MTV-28 |
28mmx47cm |
10,000~15,000 |
0.9 |
8mm |
|
MTV-32 |
32mmx47cm |
1.1 |
10mm |
30mmx4m~6m |
|
MTV-38 |
38mmx47cm |
1.6 |
10mm |
30mmx4m~6m |
|
MTV-45 |
45mmx47cm |
2.0 |
10mm |
30mmx4m~6m |
|
MTV-50 |
50mmx47cm |
2.2 |
13mm |
32mmx4m~6m |
|
MTV-60 |
60mmx47cm |
9,000~12,000 |
2.4 |
13mm |
32mmx4m~6m |
MTV-70 |
70mmx47cm |
2.6 |
13mm |
36mmx4m~6m |
|
Power Source |
Gasoline engine. 5.5hp/3600rpm, electric motor 2.0hp |
||||
Electric Concrete Vibrator:
Maximal working/set efficiency of swing type oscillating stick may reach 25CBM/hour. The motor rotation speed is 3600 rpm, and multi-point vibration speed may reach 12000rpm. It has the advantage of good mechanical performance, stable operation, low noise, good anti-wear performance, and reducing low working costs and labor load. It is widely applied in the world.
Certifications:
European CE, PRC IMPORT&EXPORT enterprise competency certificate,certificate issued BY CCPIT
After sale service:
For the Japan type concrete vibrator JYJ-SERIES, we have 6 months warranty.
1. Within 6 months, if there is some accessory going wrong, we will send you the accessory at once, free of charge or deliver the spare parts in next order.
2. In the period guarantee, we change the defective parts(but the wearing parts) for free in the condtion that the users comply the rules of transportation, storage and using, if the vibrator is broken or can not be working well.
3. No responsibility for man-made destroy.
4. If the buyer has any questions from our technical department, we can supply on-line service
