Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer

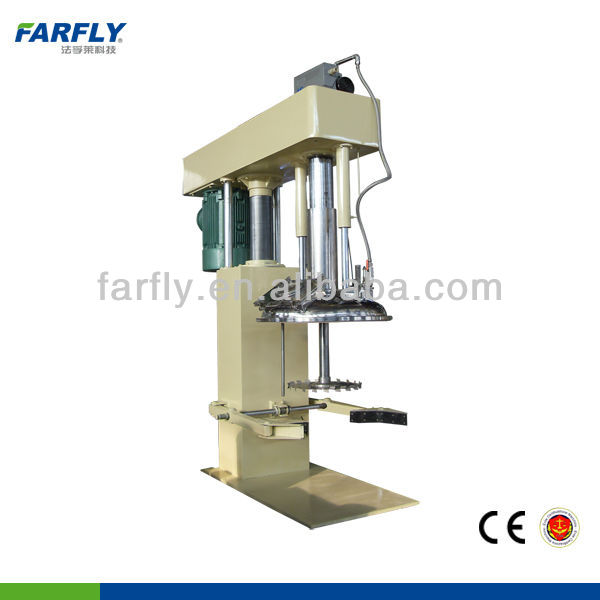

FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer

FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer photo-1
FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer photo-2
FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer photo-3
FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer photo-4
FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer photo-5
FDH Vacuum Homogenizing Emulsifier, Inline Homogenizer, Vacuum Mixer Homogenizer photo-6
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Detergent Powder
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Agitator
Product Type Detergent Powder
Application Viscous Fluid
Additional Capabilities Other, VACUUM
Place of Origin Shanghai, China
Brand Name FARFLY
Model Number FDH
Max. Loading Capacity 3000L
Voltage 110V/220V/380V
Power(W) 1.5 KW-75KW
Dimension(L*W*H) 1300*820*1400mm
Certification CE & ISO9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

The series of FDG high speed dispersers are suitable for producing paint, ink, coating, dyestuff, paper pulping, etc. in ch-emical industry. The mixers are used for wet dispersing and mixing of liquid-solid materials. Equipped with on-grade sp-eed adjustment by frequency converter, hydraulic elevating system, enable steady work, good dispersing effect, easy maintenance.


There are two kinds: stand on floor type, platform type.

Technical Specification

Type

Power

(KW)

Speed

(rpm)

Disc       Diameter(mm)

Lifting  Height(mm)

Pump  Power(KW)

Handling  Capacity(L)

Wt.

 (KG)

Dimension  (LxWxH)    (mm)

FDG 1.5/2.2
1.5/ 2.2
0-1450
150
600
0.55
50-100
120
940X 350X 1400
FDG 4/5.5
4/5.5
0-1450
200
800
0.55
100-200
400
1300X600X1700
FDG  7.5/11
7.5/  11
0-1450
250
900
0.55
400-600
800
1800X900X1750
FDG22/30
22/30
0-1450
350
1200
0.75
600-1200
1500
2100X900X2200
FDG37/45
37/45
0-1200
400/450
1300
1.1
1200-2000
2000
2300X1000X2250
FDG55/75
55/75
0-1200
500/550
1600
1.5
2000-3000
2500
2500X1200X2500
Detailed Images
Certifications
Our Service

Engineers available for oversea after-service.
