Chemical Industrial Dispersing Reactor

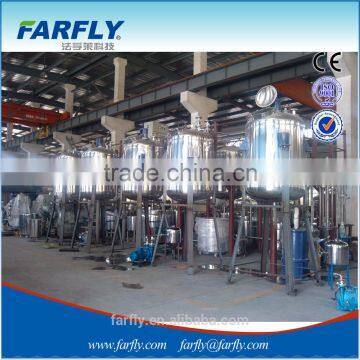

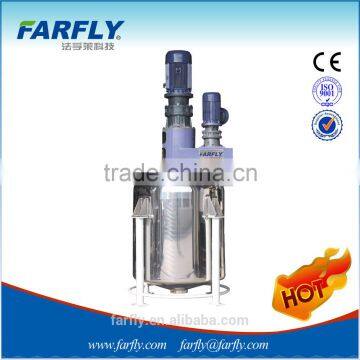

Chemical Industrial Dispersing Reactor photo-1
Chemical Industrial Dispersing Reactor photo-2
Chemical Industrial Dispersing Reactor photo-3
Chemical Industrial Dispersing Reactor photo-4

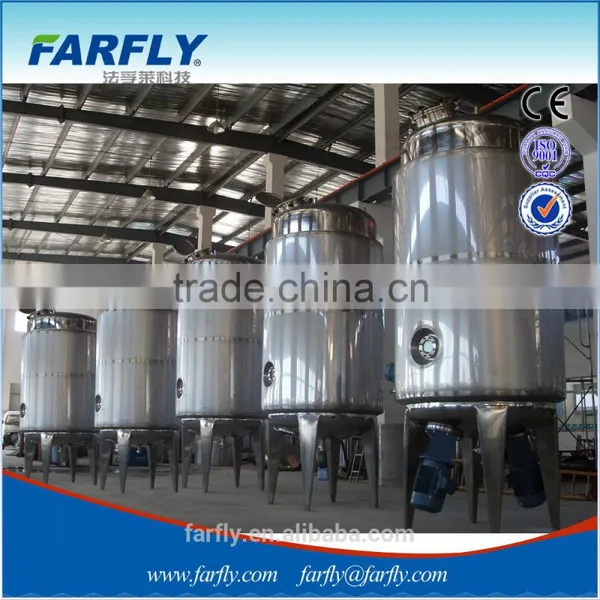

Chemical Industrial Dispersing Reactor photo-5
Chemical Industrial Dispersing Reactor photo-6
US$ 5,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Detergent Powder
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Agitator
Product Type Detergent Powder
Application Liquid with Suspended Solids
Additional Capabilities Other, disperser disc changeable
Place of Origin Shanghai, China
Brand Name FARFLY
Model Number FDK FTC
Max. Loading Capacity 10000L
Voltage 110V/220V/380V/440V
Power(W) 11KW-110KW
Dimension(L*W*H) 2000*2000*3000mm
Certification CE& ISO9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Application

Chemical industrial dispersing reactor

Applicable for concocting finished products or mixing different phases of materials in coating, dyes, pigments, printing inks, pesticide and paper-making industries, etc. It can be fitted with many kinds of mixers, which are suitable for different working conditions.


Detailed Images

Characteristics:


1. Additional function of vacuum, normal-pressure, pressure-proof, cooling, heating etc. could be made according to the
requirements of different application, or as requirement of the customers.


2. Various blades such as paddle, frame and anchor with low speed can be chosen. Additionally, the kettle, normally with
single layer structure can be made into normal pressure, pressuree-proof types, etc.

3. Double layer kettle can be made upon request.

Technical Specification


Type

Diameter(mm)

Height of Kettle(mm)

Dispersing Kettle

Paint Mixing Kettle

Dispersing Kettle

Paint Mixing Kettle

Power(KW)

Speed(RPM)

Power   (KW)

Speed(RPM)

500L

800

1000

1060

11

0-1450

1.1

112

1000L

1000

1250

1400

15

0-1450

2.2

112

2000L

1400

1540

1575

30

0-1450

4.0

112

3000L

1500

1880

1750

37

0-1450

5.5

88

4000L

1600

2180

2125

45

0-1450

7.5

88

5000L

1800

2235

2125

55

0-1450

11

88

6000L

1900

2360

2475

75

0-1450

11

88

8000L

2000

2720

2725

90

0-1450

15

88

10000L

2000

2820

3050

110

0-1450

18.5

88
