Home > Products > Mixing equipment > ATEX FDL glue double shaft mixer,dual shaft mixer

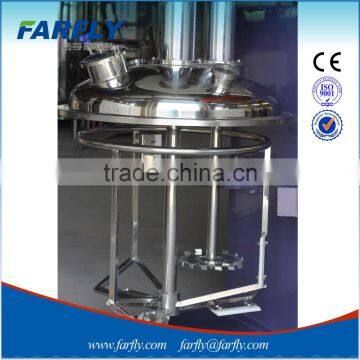

ATEX FDL glue double shaft mixer,dual shaft mixer
- 20 Set / Sets per Month
- Shanghai /Guangzhou/Tianjing
- T/T
Product Details
Condition: | New | Mixer Type: | Agitator | Product Type: | Paint |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling | Brand Name: | FARFLY |
Model Number: | FDL | Max. Loading Capacity: | 900 | Voltage: | 220V/380V |
Power(W): | 0.75KW~45KW | Dimension(L*W*H): | Custom Made | Certification: | CE Certificate |
Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Double Shaft paddle Mixer machine :
General introduction:
Type/Parameter | FDL-600 | FDL-900 | FDL-1000 | FDL-1200 |
Tank capacity | 150 | 500 | 600 | 900 |
High speed power | 7.5-11 | 18.5-22 | 22-37 | 30-55 |
Low speed power | 4-5.5 | 7.5-15 | 11-30 | 11-37 |
High speed blade diameter | 200 | 250 | 280 | 330 |
Low speed Mixing device diameter | 570 | 860 | 960 | 1160 |
High speed shaft | 1500 | 1500 | 1500 | 1500 |
Low speed shaft | 90~120 | 60~120 | 120 | 120 |
Max.range of up and down | 700 | 950 | 1000 | 1100 |
L×W×H (mm) | 1750×1250×2350 | 2420×1400×3106 | 2800×1700×3250 | 2800×1700×3250 |
After Sales Service for mixer:
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the meals for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms for mixer:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms for mixer:
We usually take FOB, but we can also accept EXW,CIF,CNF.
