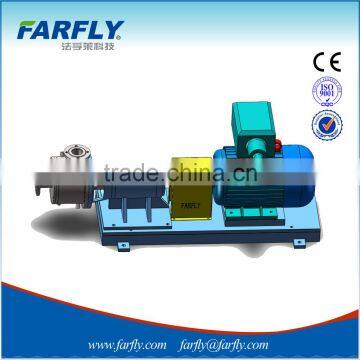

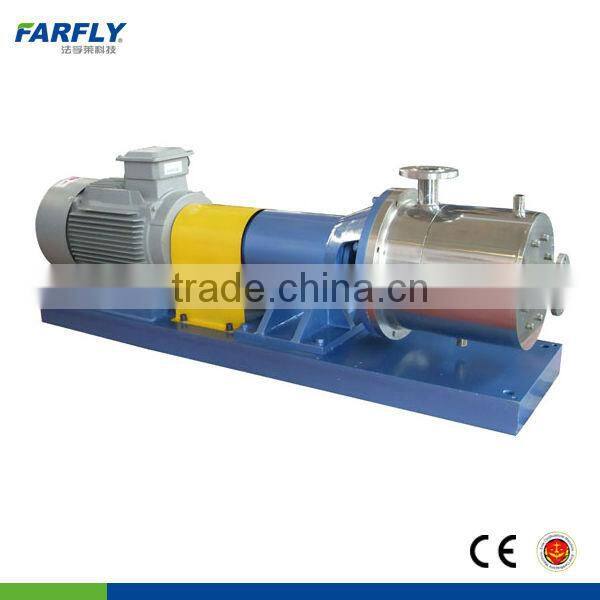

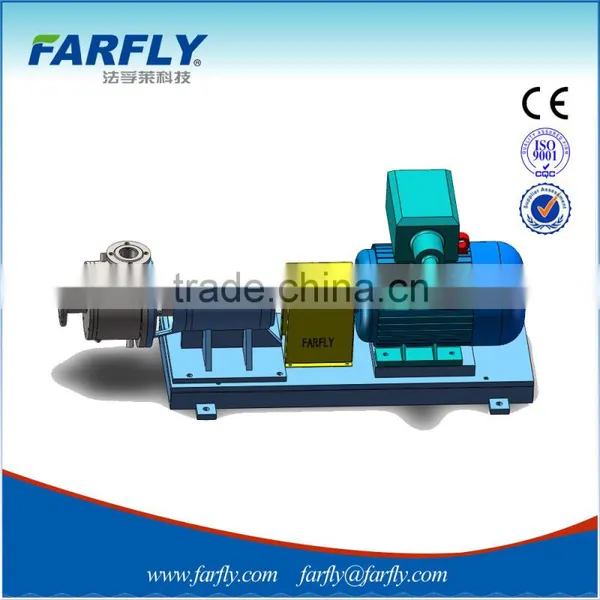

FSW3 FARFLY Emulsifying Pump,emulsifying Mixer

Whatsapp: +8613817391132

Skype: live:andrewleelmj

Overseas Sales: Andrew for FSW3 FARFLY emulsifying pump,emulsifying mixer

High shear mixer , in line emulsifying mixer , homogenizing mixer

General:

A Farfly high shear In-Line mixer doesn't simply mix. It emulsifies, homogenises, solubilises, suspends, disperses and disintegrates solids. Each mixer,  with its precision-engineered  rotor/stator workhead, far outperforms conventional mixers, cutting processing times by up to 80%, improving quality, product consistency and process efficiency.

Inline high shear mixer

Features:

- Suitable for industrial online continuous production

- Wide viscosity range than in batch high shear mixer

- No batch difference

- High efficiency,low noise

Main technical data:

Capacity
Self-pumping throughputs of 20 to 15,000 litres/h.

No Bypassing
Product cannot bypass the precision rotor/stator workhead.

Interchangeable Workheads
Single stage rotor/stator configurations workheads as standard. For those applications that require greater shear, interchangeable multistage configurations workheard can be used.

Materials of Construction
Product contact in SS304 or 316L stainless steel  .

Motor Specification
Standard and explosion proof motors (Siemens ,ABB etc) are available as standard.

Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).

Sealing
Single or double mechanical shaft seals available as standard .

Cleaning
All Farfly In-Line mixers are designed for cleaning in place (CIP and SIP).

Cooling

Cooling jacket structure as standard.

Model Selection:
