High shear mixer , in line emulsifying mixer , homogenizing mixer
General:
A Farfly high shear In-Line mixer doesn't simply mix. It emulsifies, homogenises, solubilises, suspends, disperses and disintegrates solids. Each mixer, with its precision-engineered rotor/stator workhead, far outperforms conventional mixers, cutting processing times by up to 80%, improving quality, product consistency and process efficiency.

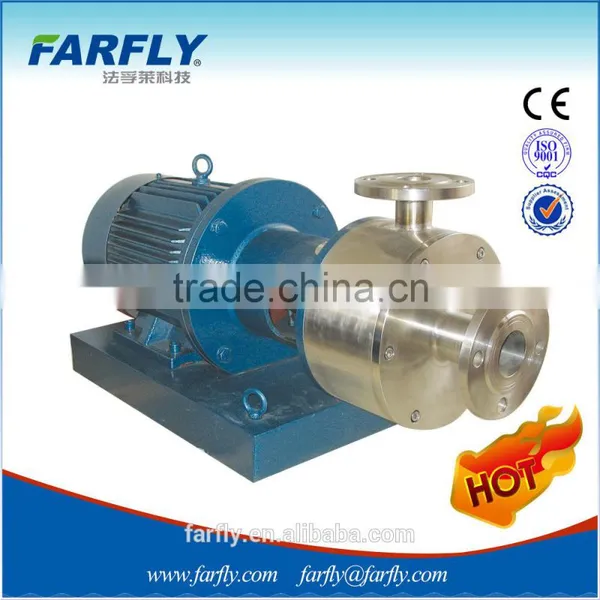

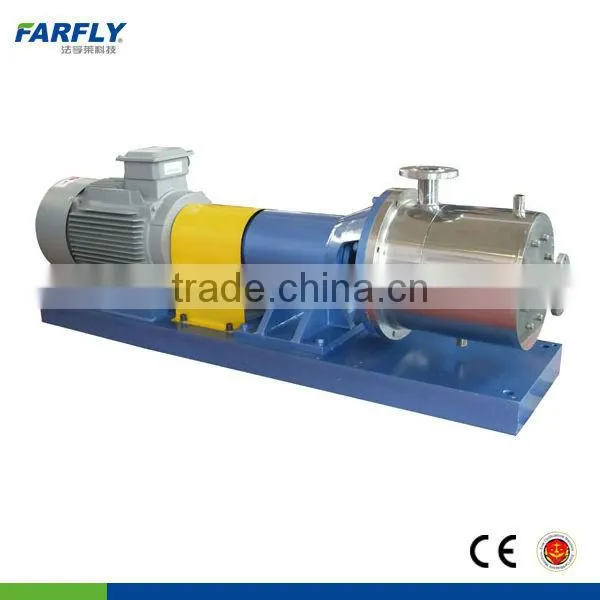

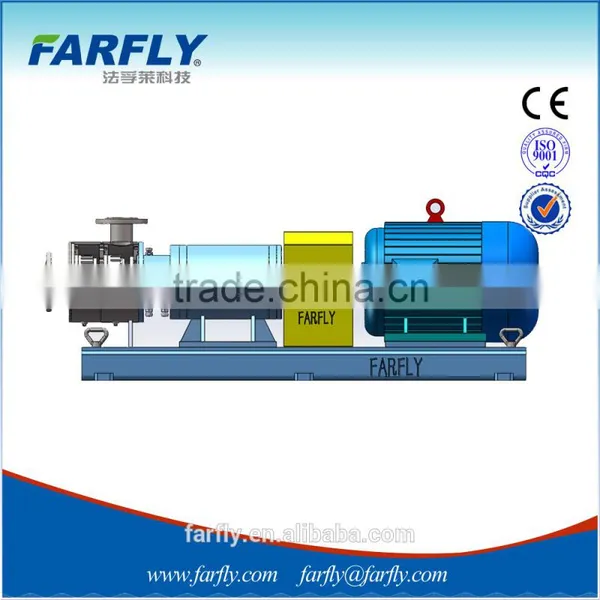

Inline high shear mixer
Features:
- Suitable for industrial online continuous production
- Wide viscosity range than in batch high shear mixer
- No batch difference
- High efficiency,low noise
Main technical data:
Capacity
Self-pumping throughputs of 20 to 15,000 litres/h.
No Bypassing
Product cannot bypass the precision rotor/stator workhead.
Interchangeable Workheads

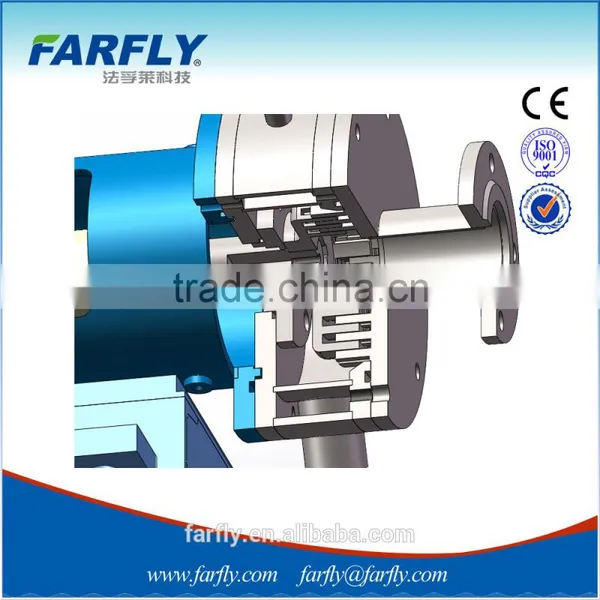

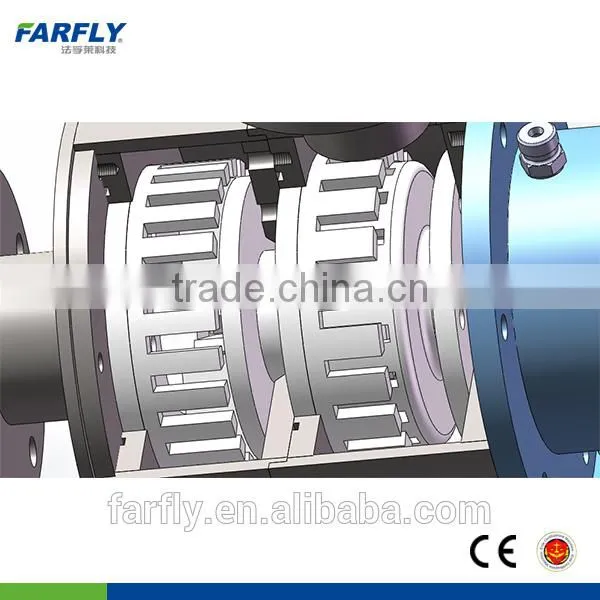

Single stage rotor/stator configurations workheads as standard. For those applications that require greater shear, interchangeable multistage configurations workheard can be used.
Materials of Construction
Product contact in SS304 or 316L stainless steel .
Motor Specification
Standard and explosion proof motors (Siemens ,ABB etc) are available as standard.
Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).
Sealing
Single or double mechanical shaft seals available as standard .
Cleaning
All Farfly In-Line mixers are designed for cleaning in place (CIP and SIP).
Cooling
Cooling jacket structure as standard.
Model Selection:
Type |
Power KW |
Speed rpm |
Flow Rate m3/h |
Inlet |
Outlet |
|
FSW3-75 |
7.5 |
3000 |
8 |
DN50 |
DN40 |
|
FSW3-110 |
11 |
3000 |
12 |
DN65 |
DN50 |
|
FSW3-150 |
15 |
3000 |
18 |
DN65 |
DN50 |
|
FSW3-185 |
18.5 |
3000 |
20 |
DN65 |
DN50 |
|
FSW3-220 |
22 |
3000 |
22 |
DN65 |
DN50 |
|
FSW3-300 |
30 |
1500 |
27 |
DN65 |
DN50 |
|
FSW3-370 |
37 |
1500 |
30 |
DN100 |
DN80 |
|
FSW3-550 |
55 |
1500 |
40 |
DN125 |
DN100 |
|
FSW3-750 |
75 |
1500 |
55 |
DN125 |
DN100 |
|
FSW3-900 |
90 |
1500 |
65 |
DN125 |
DN100 |
|
FSW3-1100 |
110 |
1500 |
80 |
DN150 |
DN125 |
|
FSW3-1320 |
132 |
1500 |
100 |
DN150 |
DN125 |
|
FSW3-1600 |
160 |
1500 |
120 |
DN150 |
DN125 |
|
