high speed mixer
- 68 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Mixer Type: | Other, Disperser | Product Type: | Paint |
Application: | Liquid | Additional Capabilities: | Other, Mixing | Place of Origin: | Shanghai, China |
Brand Name: | FARFLY | Model Number: | FDG | Max. Loading Capacity: | 10000L |
Voltage: | 220V/380V/440V/460V | Power(W): | 1.5~132KW | Certification: | CE/UL/ISO9001 |
Warranty: | 1 Year | After-sales Service Provided: | Overseas service center available |

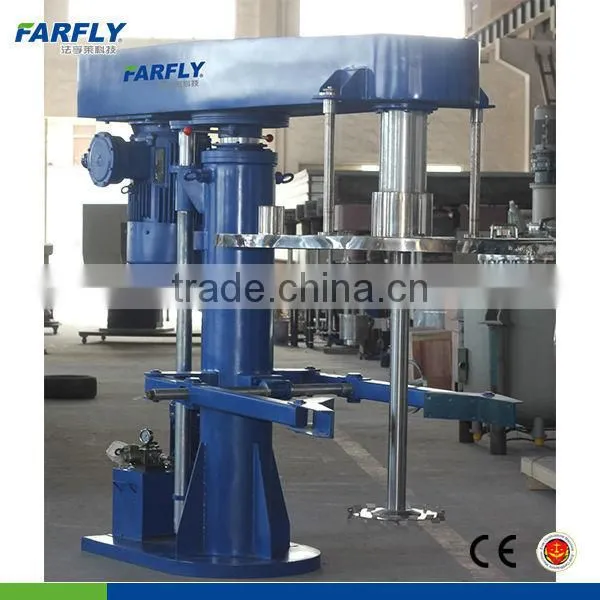

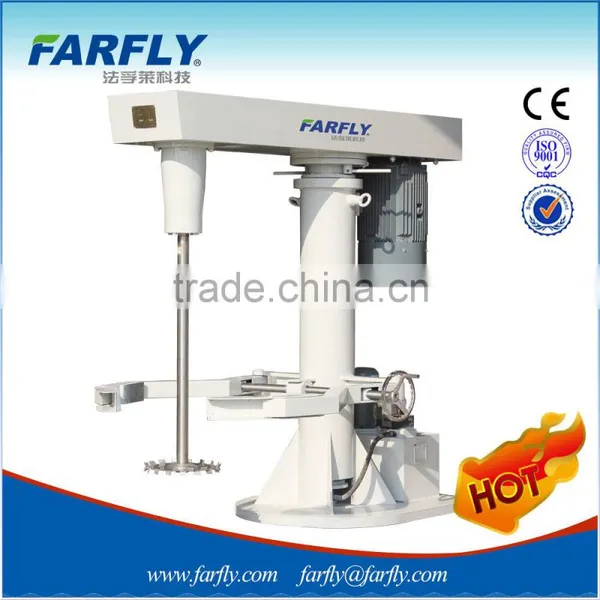

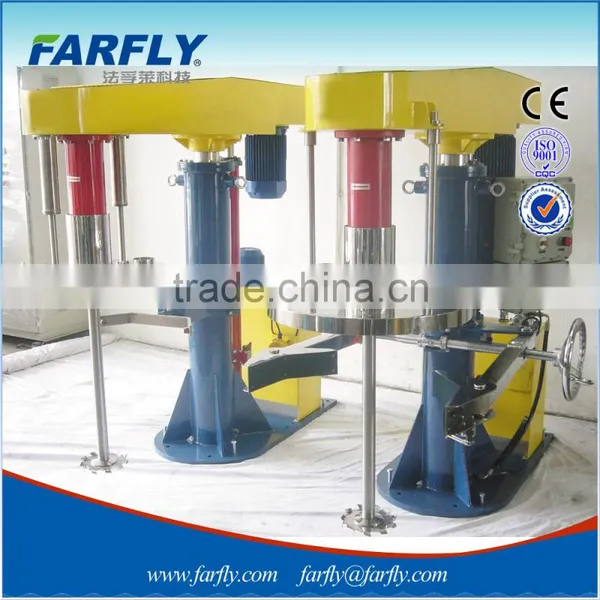

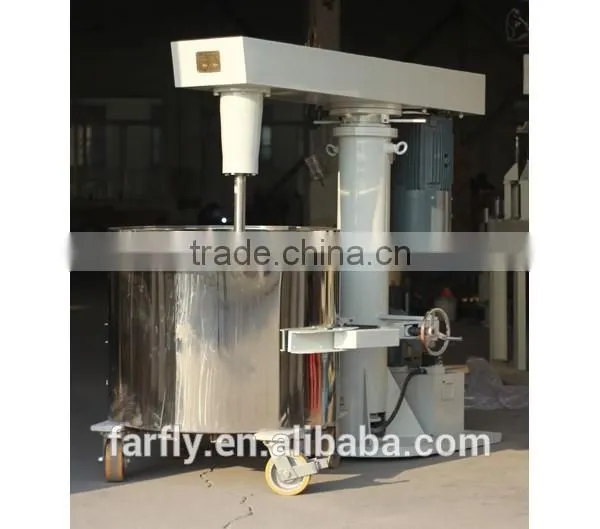

Product Description
Description:
Production high speed disperser,high speed dissolver,high speed dispersion mixer is to dissolve ,disperse and mix meterials with different viscosity.Through the very high peripheral tip spped of the toothed disc,the strong shearing,crashing and friction forces generated between the materials and toothed disc disperse,dissolve and mixe the materials efficiently.The large stress forces break down the agglomerates into the liquid or paste suspension and solid particle wetted out.With cover matching with its container to avoid dust flying ,materials splashing and volatilization of solvent products during dispersing.Easy operation,safe and convenient .The cover is mirror polished ,easy to clean and nice appearance.Little air absorption during mixing and dispersing process.It disperses and dissolves materials to smaller particle size effciently .No dead corner during mixing .Easy to clean ,wide capacity range ,various speed control,stable operation ,low noise and long-time continuous operation.
Production high speed disperser is a typical production dispersion equipment.It used for as stirrer, blend, disperser and mix paint,ink,pigments dispersion and others.
Feature:
- Hydraulic lifting system for production;
- Siemens or ABB motor as standard;
- Siemens/LG//Danfoss Frenquency conventor optional;
- Non-explosion and explosion type of production dispersion equipment are both as standard;
- Vacuum production high speed disperser is available;
- Customerized equipments is available.
Technical data:
Mode of Motor | Alternative from 2.2KW-132KW |
Electric Power Source | 220V/380V 50Hz |
Handling Capacity | 10-10000L |
Rotating Speed | 0-1450rpm |
Mode of Speed control | Frenquency conventor control |
Material in contact | SS304 or SS316L |
Mode of Lifting | Hydraulic lifting |
Framework | Stainless Steel, Carbon Steel |
Types available :
Tpye/Parameter | Power (kW) | Speed (rpm) | Disc dia (mm) | Lifting height (mm) | Pump Power (kW) | Capacity (L) | Weight (Kg) | Dimensions(mm) | ||
A
| B
| C
| ||||||||
FDG2.2 | 1.5/2.2 | 1450/1200 | 150 | 500 | 0.55 | 100 | 120 | 1400 | 940 | 350 |
FDG5.5 | 4/5.5 | 1450/1200 | 200 | 800 | 0.55 | 200 | 400 | 1700 | 1300 | 600 |
FDG11 | 7.5/11/15 | 1450/1200 | 250 | 900 | 0.55 | 400-600 | 800 | 1750 | 1800 | 900 |
FDG30 | 22/30 | 1450/1200 | 350 | 1200 | 1.1 | 600-1000 | 1500 | 2200 | 2100 | 1100 |
FDG55 | 37/45/55 | 1200 | 500 | 1600 | 1.5 | 1000-2500 | 2100 | 2600 | 2700 | 1400 |
FDG90 | 75/90 | 1000 | 560 | 1600 | 2.2 | 5000 | 2600 | 3300 | 3000 | 1600 |
FDG132 | 110/132 | 900 | 610 | 2200 | 4 | 10000 | 4500 | 3800 | 3800 | 1800 |

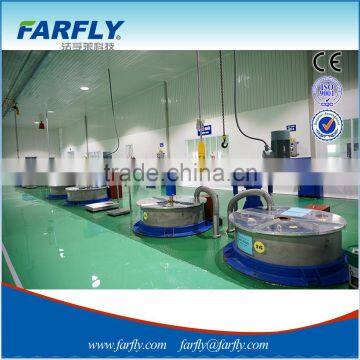

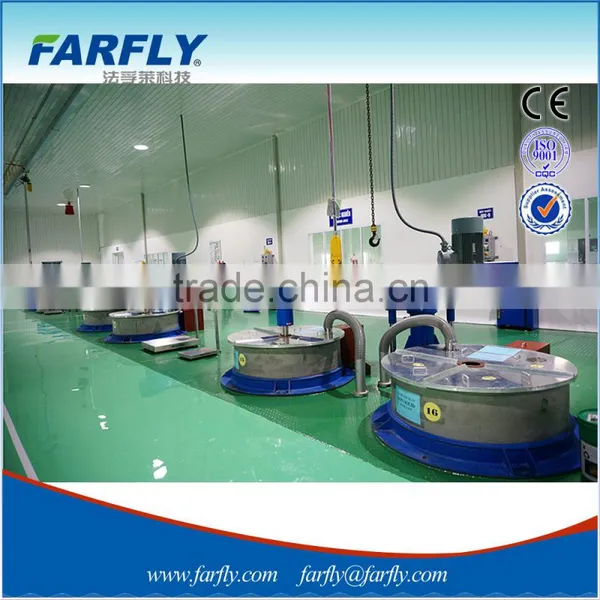

Our factory Our office
Our certificate
Some processing details
Different exhibitions
