Copper Crystallizer for Continuous Casting Machine

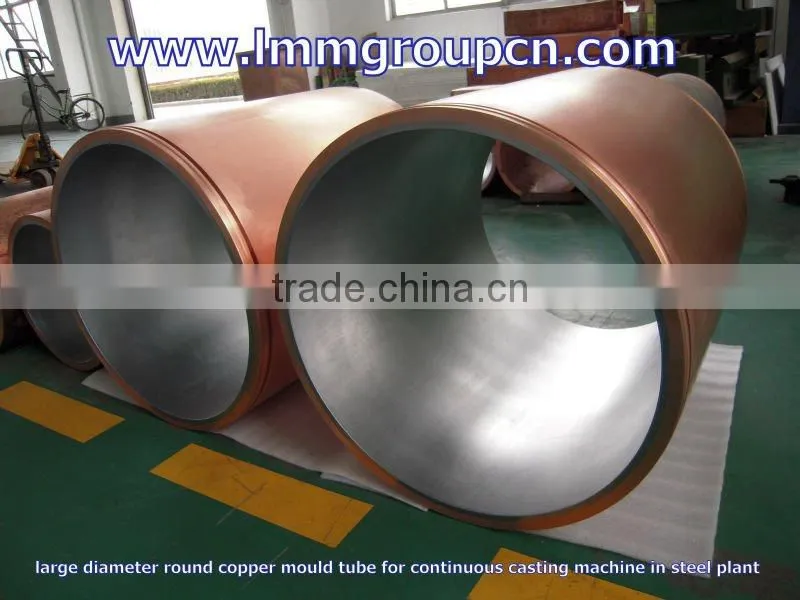

Copper Crystallizer for Continuous Casting Machine photo-1
US$ 300 - 1,800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
LMM
Model Number:
LMMould
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Liaoning, China
Brand Name LMM
Model Number LMMould

Specifications

max.1.5m dia.best quality
Baosteel long term golden supplier
CuDHP/CuAg0.1/CuCrZr/CuNiBe/CuCoNiBe
Cr/Ni/NiCo/Ceramic coating,

LMM Brand Copper Mould(LMMould) for continuous casting machine in steelmaking is available for billet caster, bloom caster, beam blank caster, slab/thin slab caster. LMMould's key features:

  • 100% high quality Chile originated Copper;
  • CuDHP, CuAg0.1, CuCrZr, CuNiBe, CuCoNiBe alloy etc
  • Cr/Ni/NiCo/Ceramic coating etc with various shapes;
  • state of the art milling, drilling, measuring & testing facilites etc with more than 20 years manufacturing experience, in accordance with EN, DIN, ANSI, AS standards, meet strictest requirement;
  • quick delivery time, 25 days or shorter;
  • more than 80000 pcs capacity annually;
One-stop solution provider for your mould & continuous casting machine:
  • optomize the lifetime of your mould
  • mould assebly
  • inner & outer casing
  • ladle turret
  • tundish car
  • guiding section
  • straightening & withdrawal device
  • flame cutter
  • dummy bar

Copper Mould Tube

Range

Materials

CuDHP, CuAg, CuCrZr, CuNiP

Cross section

Square, rectangular, round, polygonal, beam blank

Size

Up to 750 mm (across), larger sizes available on request

Internal profile

Parallel, single CONE-shaped, multi CONE-shaped, parabolic, special paraboic

Curving

Straight, curved

Radius of the inside corner

> 1mm

Length

Unlimited

Wall thickness

Unlimited

Coating

Chromium-plated, max. thickness 0.2 mm



Quality

Material

CuDHP

CuAg

CuCrZr

CuNiP

Melting point

1.083

1.083

1.078

1.080

Coefficient of thermal expansion at 20

1,68 10-5

1,68 10-5

1,70 10-5

1,68 10-5

Thermal conductivity at 20

340 W/(m.k)

377 W/(m.k)

325 W/(m.k)

284 W/(m.k)

Recrystalization

330

377

700

600

Hardness at 20

93 HB

95 HB

125HB

115HB



round copper mould tube for continuous casting machine, rectangular copper mould tube, bloom copper mould tube, beam blank copper mould tube, slab copper mould plate, thin copper mould plate



copper crystallizer for continuous casting machine

copper crystallizer for continuous casting machine
