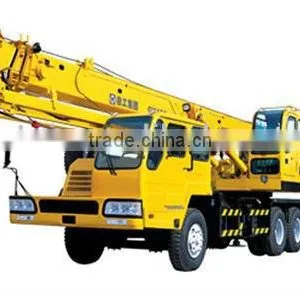

China brand high quality cheap Truck Crane QY16C

Specifications

1.More excellent performance Truck Crane
2.More reliable quality
3.More energy-efficient and environmental friendly

Specification

More excellent performance
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
•Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to maintain
• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
•The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
More energy-efficient and environmental friendly
• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.

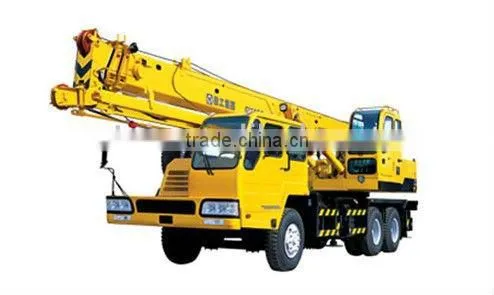

  Truck Crane



Classificatory	Item		Unit	Parameter
Engine	Model			D6114
Outline dimension	Overall length		mm	11990
	Overall width		mm	2500
	Overall height		mm	3350
	Wheel base	Axle 1, Axle 2	mm	4025
		Axle 2, Axle 3	mm	1350
Mass	Total mass in travel state		kg	22900
	Axle load	Axle 1	kg	5240
		Axle 2	kg	17660
Travel performance	Travel speed	Max. travel speed	km/h	70
		Min. stable travel speed	km/h	4
	Turning diameter	Min. turning diameter	m	20
		Min. turning diameter at boom tip	m	23
	Min. ground clearance		mm	270
	Approach angle		(°)	21
	Departure angle		(°)	10
	Braking distance (at 30km/h with full load)		m	9.5
	Max. grade-ability		%	24
	Fuel consumption for 100km		L	35
Power	Engine rated output		kW/(r/min)	158/2200
	Engine rated torque		N.m/ (r/min)	790/1400
	Engine rated speed		r/min	2200

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	16
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	≤3.12
	Max. load moment	Base boom			kN.m	711
		Fully extended boom			kN.m	449
		Fully extended boom + Jib			kN.m	186
	Outrigger span	Longitudinal			m	4.6
		Lateral			m	5.4
	Lifting height	Base boom			m	≥9.9
		Fully extended boom			m	≥23.6
		Fully extended boom + Jib			m	≥30.8
Working speed	Boom raising time				s	≤60
	Boom full extension time				s	≤75
	Max. swing speed				r/min	≥2.5
	Hoist speed (single line)		Main winch	Full load	m/min	≥54
				No load	m/min	≥100
			Aux. winch	Full load	m/min	≥54
				No load	m/min	≥100
Noise limit	Crane exterior noise				dB (A)	≤118
	At seated position				dB (A)	≤90
