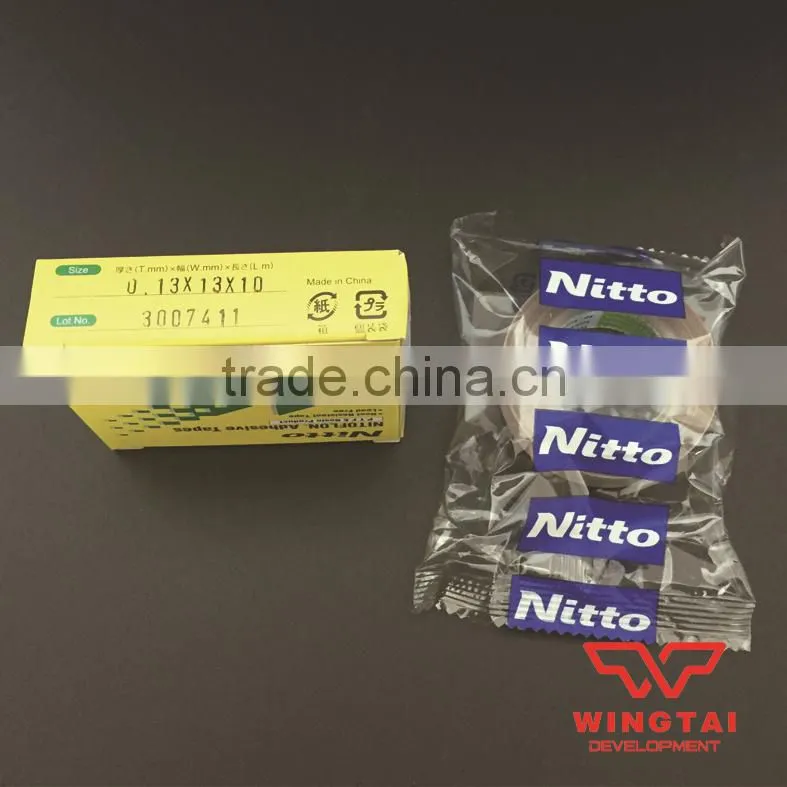

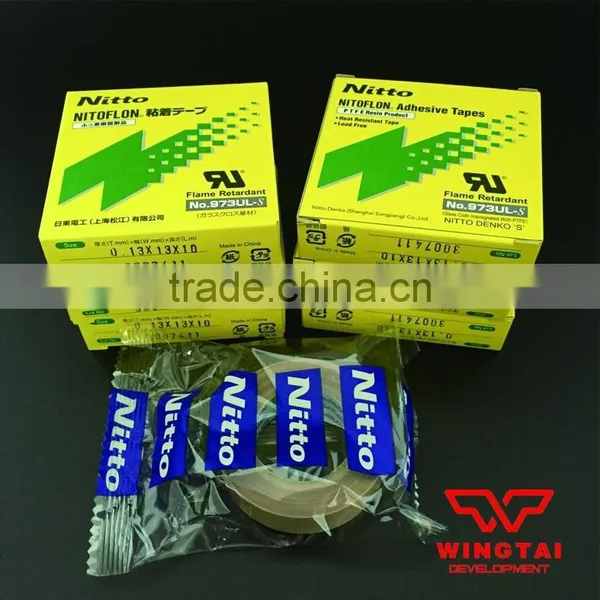

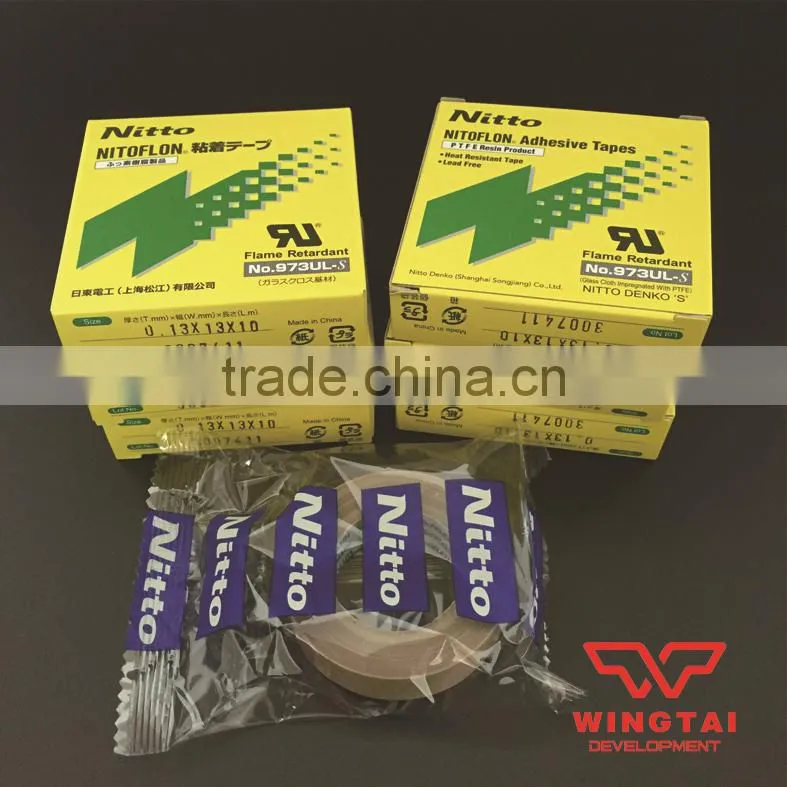

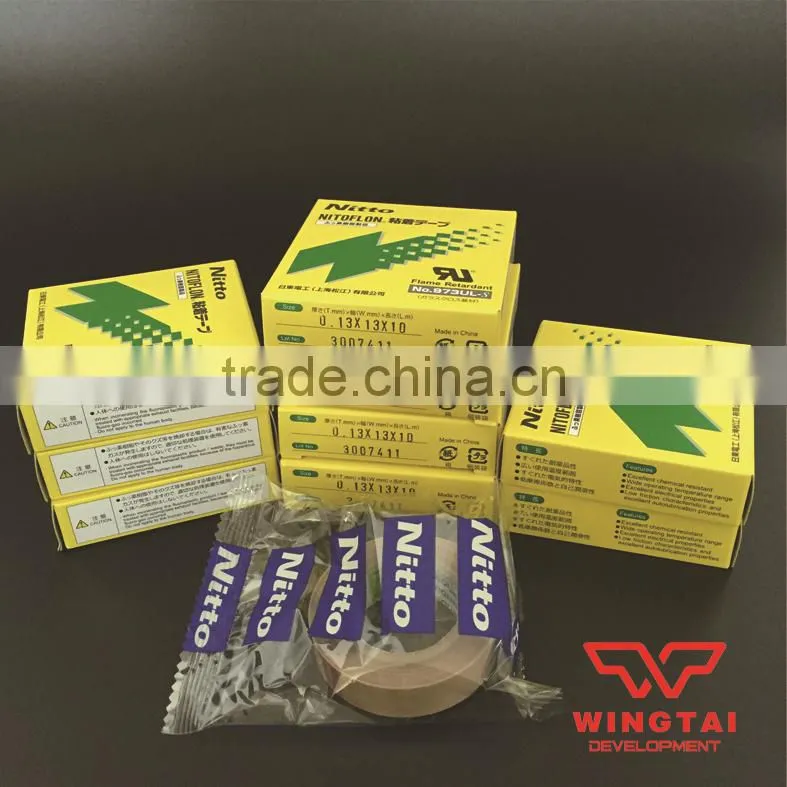

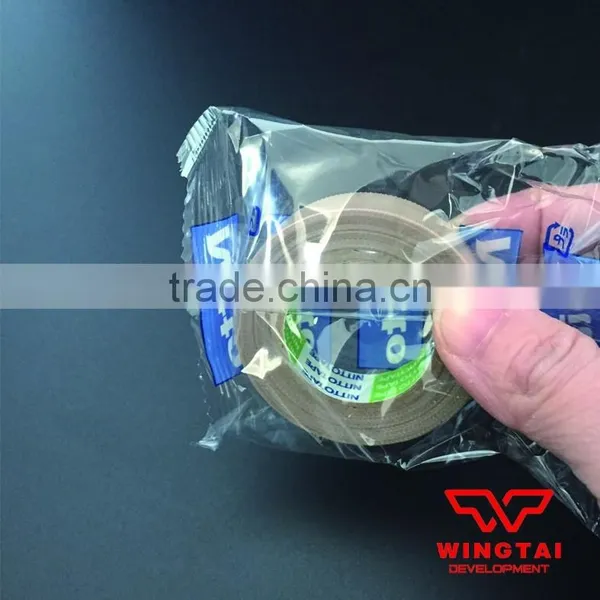

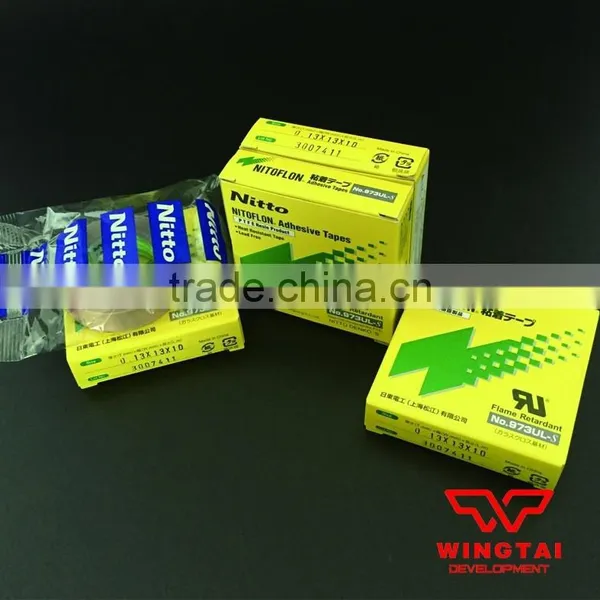

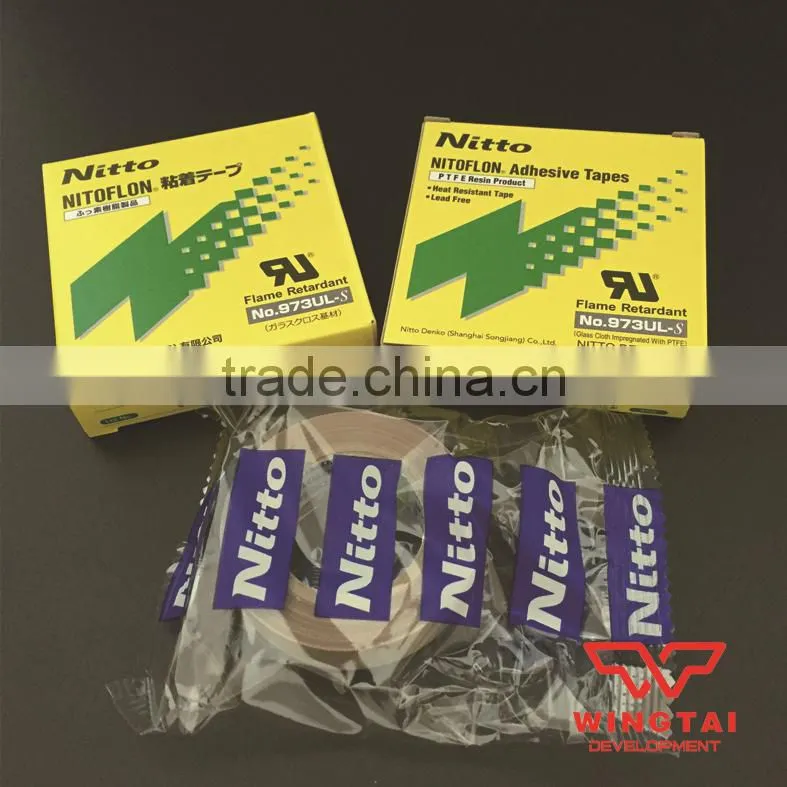

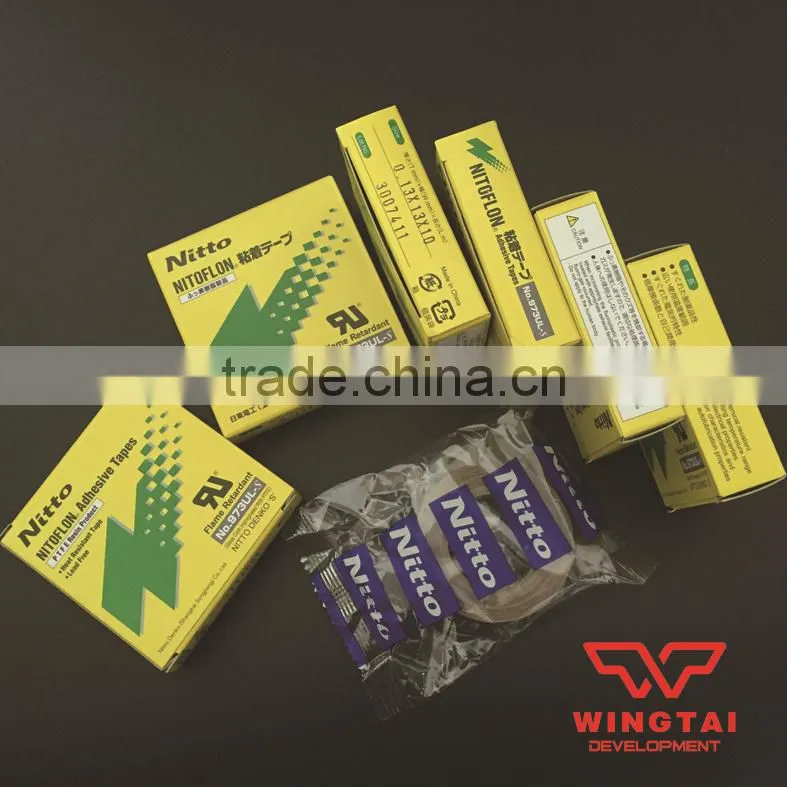

Japan NITOFLON nitto tape distributors 973ul-s
Nitto NITOFLON Adhesive Tapes PTFE Resin Product Heat Resistant Tape Lead Free
Glass cloth base material impregnated with polytetrafluoroethylene (PTFE) dispersion then sintered. Single surface treated and coated with a silicone adhesive, which exhibits excellent heat resistance and mechanical strength.
|
|
Color |
Beige |
|
Spec. |
T0.13mm*W13mm*L10m |
||
Short-term heat resistance |
300℃ |
||
Continuous heat resistance |
-60~260℃ |
||
Adhesive Strength |
25℃ |
6.8 N/19mm |
|
100℃ |
3.2 N/19mm |
||
150℃ |
2.2 N/19mm |
||
Tensile Strength |
240 N/19mm |
||
Unwinding Force |
5.9 N/19mm |
||
- Obtain UL510 authentication .
- Environmentally friendly products.
- Has a good off models and smoothness.
- Has good heat retention and dimensional stability.
- Nonadhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.
Item |
No.973UL-S |
No.973UL |
||
Thickness (mm) |
0.13 |
0.15 |
0.18 |
|
Tensile strength (N/19mm) |
240 |
590 |
530 |
|
Adhesive strength (N/19mm) |
25°C |
6.8 |
9.0 |
9.7 |
100°C |
3.2 |
3.9 |
4.7 |
|
150°C |
2.2 |
2.6 |
3.0 |
|
Unwinding force(N/19mm) |
5.9 |
5.9 |
7.5 |
|
Temperature range(℃) |
-60~260 |
|||
Test Method |
Compatible with JIS C 2107 |
|||
Model No. |
Spec. |
923S |
T0.10mm* W38/50mm* L33m |
903UL |
T0.08mm* W13/15/19/25/38/50/100/250/300/540mm* L10m |
903UL |
T0.18mm* W18/19/300mm* L10m |
903UL |
T0.13mm* W19mm* L10m |
973UL-S |
T0.13mm* W10/13/19/25/38/50/75/100/300/600mm* L10m |
973UL |
T0.18mm* W19/25/50mm* L10m |
975 |
T0.12mm* W13/19/25/30/38/50/200/300mm* L10m |
970-2UL |
T0.07mm* W650mm* L10m |
• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation
