Home > Products > Teflon Heat Resistant Products > 2015 Hot Sale Japan Nitoflon Tape 903UL

2015 Hot Sale Japan Nitoflon Tape 903UL

Name: 2015 Hot Sale Japan Nitoflon Tape 903UL
Brand: Nitto
Availability: InStock

FOB Price

US$ 26 - 30 / Roll

1 Roll(Min. Order)

Port SHANTOU/SHENZHEN
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	PTFE	Use	Masking
Adhesive Side	Single Sided
Adhesive Type	Hot Melt, Pressure Sensitive	Feature	Heat-Resistant
Design Printing	No Printing	Place of Origin	Japan
Brand Name	Nitto	Model Number	903UL(0.185010)

Product Description

2015 Hot Sale Japan Nitoflon Tape 903UL

Japan NITTO DENKO P.T.F.E Resin Product NITOFLON Adhesive Tapes

2015 Hot selling !!! Our quality can guarantee .

Product Description

Specification
	Color	Gray
	Spec.	T0.18mmW50mmL10m
	Short-term heat resistance	300℃
	Continuous heat resistance	-60~280℃
	Material	PTFE Film
	Adhesive	Silicone

Class H electrical insulating adhesive tape using fluoroplastic film.

Single surface treated polytetrafluoroethylene (PTFE) film base tape coated with silicone adhesive with excellent heat resistance. Along with great electrical characteristics, the tape has a number of excellent features, such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness.

Product Information

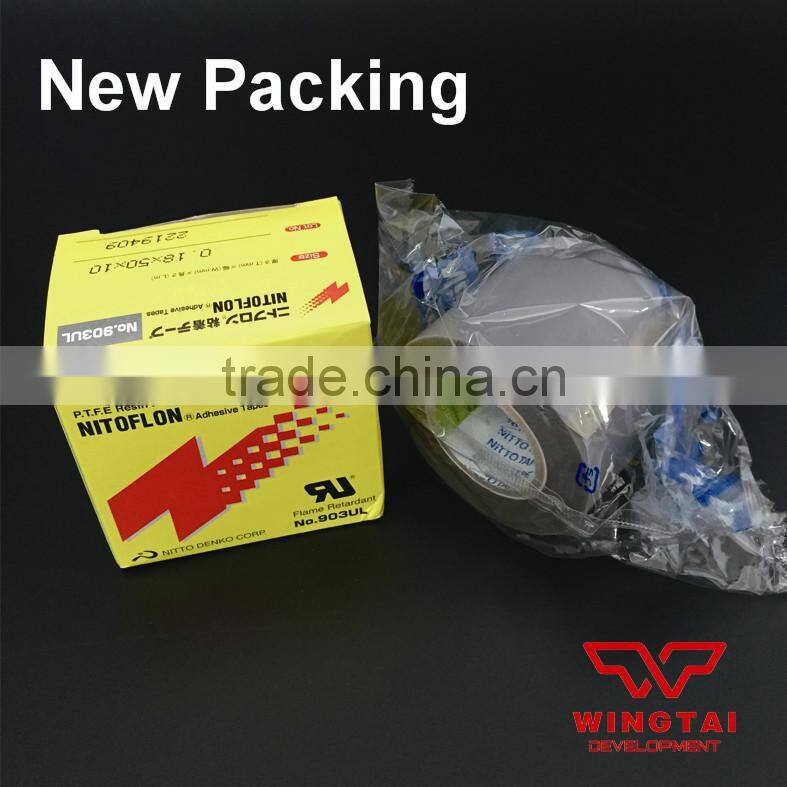

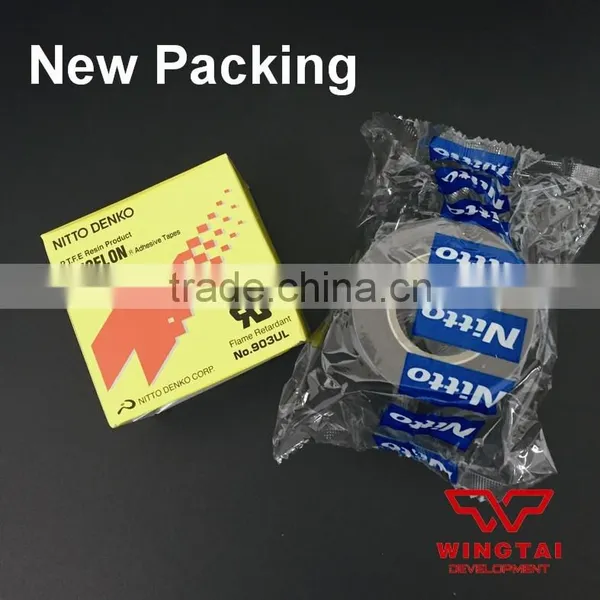

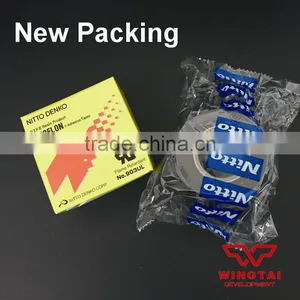

Note: Nitto tape has changed into new packing as it is showed aboved.

Features

1. UL510 certified.

2. Superior in mold-releasing and sliding property.

3. Uses the Class H insulating material.

4. Superior flame resistance.

5.Nonadhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water -shedding), low friction coefficient and non-adhesiveness.

6. Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.

Applications

For heat-resistant masking.
For heat-sealing.
For heat-resistant electrical insulation.

Widely used in:The food industry, printing industry, industry, chemical industry, etc

Technical Data

Technical Data

Item	Characteristic Value
Item	No.903UL
Thickness (mm)	0.08	0.13	0.18	0.23
Tensile strength (N/19mm)	55	93	160	210
Adhesive strength*1 (N/19mm)	5.6	7.1	7.4	8.7
Rewinding force(N/19mm)	4.4	5.8	7.1	8.9
Breakdown Voltage (KV)	8	11	14	15
Temperature range(℃)	-60~280

More Sizes

More Specification

Model	Color	Substrate			Short-term heat resistance(℃)	Continuous use temperature(℃)
		Thickness(mm)	Width(mm)	Length(m)
No.903UL	Gray	0.08	13	10	300℃	-60~280℃
			15
			19
			25
			38
			50
			100
			250
			300
			450
No.903UL	Gray	0.13	19	10	300℃	-60~280℃
No.903UL	Gray	0.18	18	10	300℃	-60~280℃
			19
			25
			50
			300

Contact Us

Shantou Wingtai Packing Equipment Co., Ltd.: Contact nameSophia Lee
Chat Now; Phone86-754-88733293; AddressRoom 408,Block A, 31 Block Huangshan Building, Longhu District, Shantou, Guangdong, China, Shantou, Guangdong

*Email
Please enter Your valid email address.
*To

Sophia Lee
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

Mechanical Electrical Equipment	Teflon Heat Resistant Products	Stroboscope & Sensors	Printing Supplies
Printing Magnetic Ink Mixing Rollers	Printing Doctor Blades	Pneumatic Automatic Hole Punch Machines	Package Raw Material
New Products	Ceramic Anilox Roller & Clearner	Liquid Viscosity Control & Test Device	Laboratory Test Instruments
Japan KOYO Abrasive Cloth	Industry Eliminate Static Device	Industrial Spring	Industrial Environmental Protection Equipment
Corona Dyne Test Pen & Dyne Ink	Color Guides & Color Test Devices

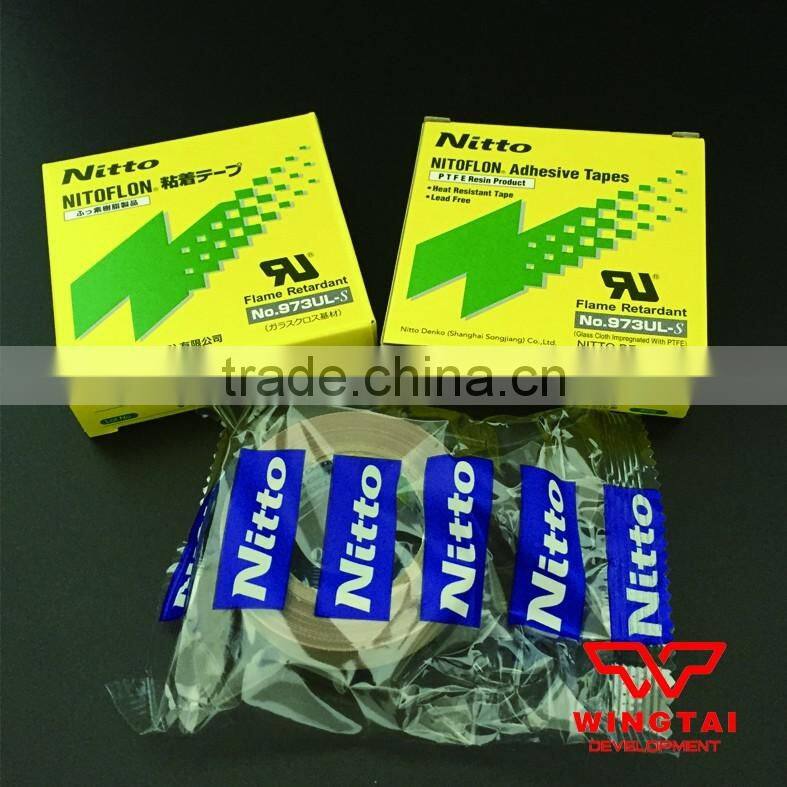

Nitto Denko Nitoflon Masking Tape 903UL	Nitto Denko Nitoflon PTFE Fiberglass Tape 973UL-S	Nitto NITOFLON Adhesive Tapes 923S

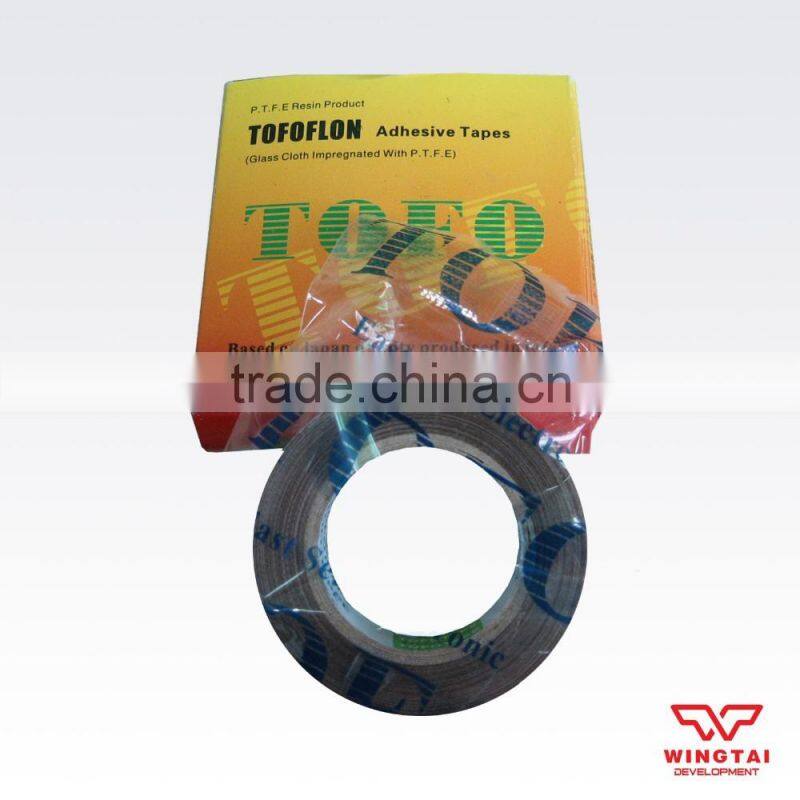

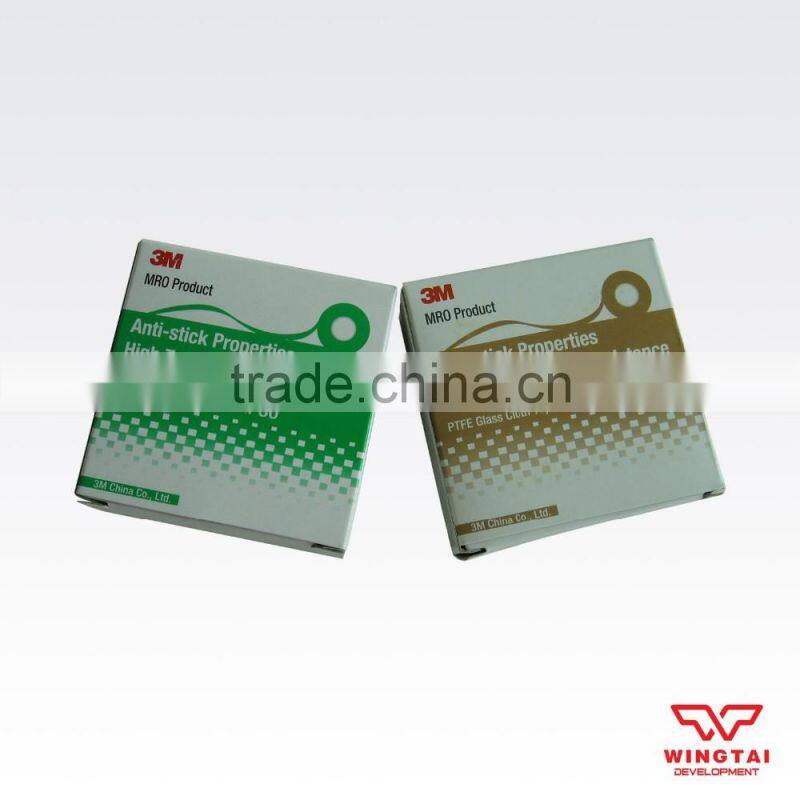

*3M Heat Resistant Tape T0.13mmW13mmL10m*	TOFO High Temperature Resistant Adhesive Tape	TACONIC PTFE Adhesive Tape

2015 Hot Sale Japan Nitoflon Tape 903UL

You May Like

Product Details

Product Description

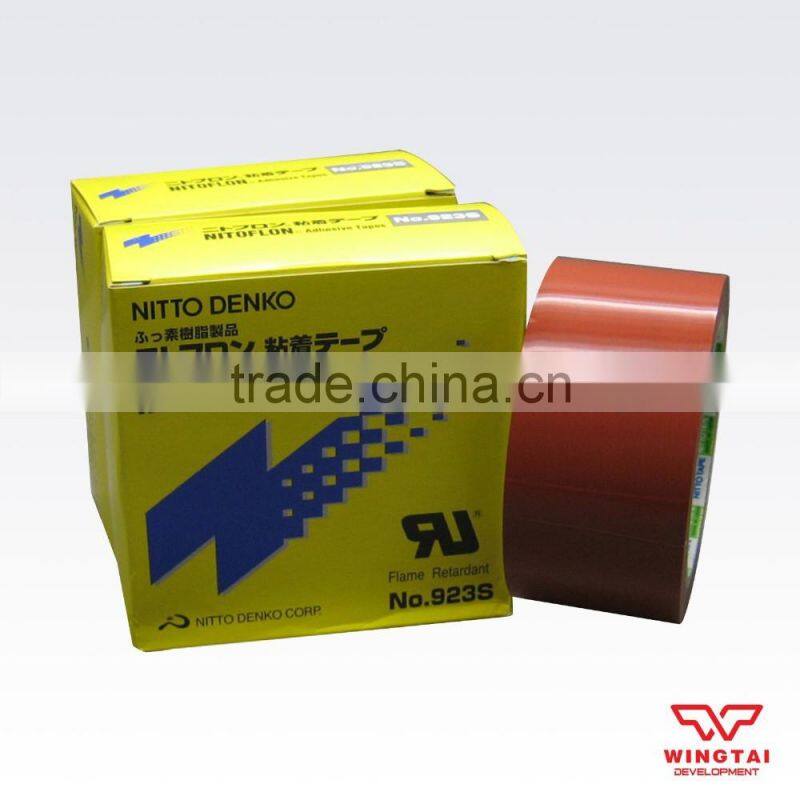

Nitto NITOFLON Adhesive Tapes 923S
