Home > Products > Teflon Heat Resistant Products > Nitoflon Thermostability Adhesive Tape 923S 0.10mm*38mm*33m

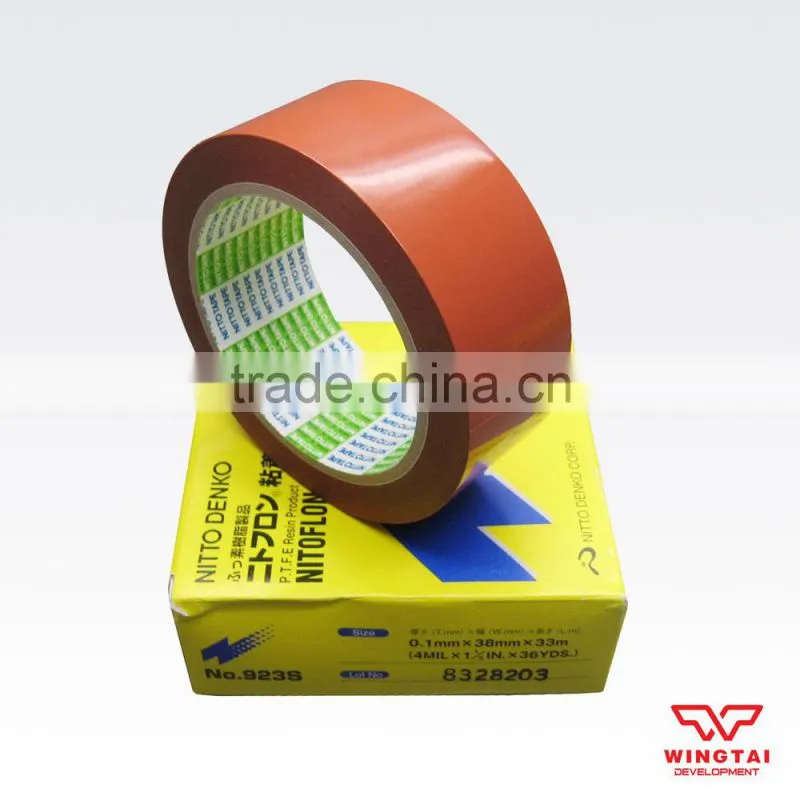

Nitoflon Thermostability Adhesive Tape 923S 0.10mm*38mm*33m
- SHANTOU/SHENZHEN
- Credit Card
You May Like
Product Details
| Material | PTFE | Use | Masking | |
| Adhesive Side | Single Sided | |||
| Adhesive Type | Hot Melt, Pressure Sensitive | Feature | Heat-Resistant | |
| Design Printing | No Printing | Place of Origin | Japan | |
| Brand Name | NITTO DENKO | Model Number | 923S(0.10*38*33) |
Product Description
Nitto NITOFLON Adhesive Tapes 923S 0.10mm*50mm*33m
NITTO DENKO P.T.F.E Resin Product NITOFLON Adhesive Tapes 923S
Product Description
Specification | ||
| Color | Orange |
Spec. | T0.10mm*W38mm*L33m | |
Backing Material | PTFE film | |
Adhesive | Silicone | |
Flammability Rating | Passes UL-510 Flame Test | |
Short-term heat resistance | -50~300℃ | |
Continuous heat resistance | -50~250℃ | |
NO. 923S is a orange PTFE tape and use oriented polytetrafluoroethylene (PTFE) film as a based material. Single surface treated and coated with a silicone adhesive can prevent with high heat and friction resistance.
Product Information
Features
1.The nonadhesive side exhibits excellent features such as desirable electrical properties, resistance to heat, weather, chemical, water (water-shedding), and anti-friction.
2. UL Rated.
3. Superior tensile strength.
4. Strong electrical properties.
Product Construction
Properties
BACKING MATERIAL |
| PTFE Film | ||
ADHESIVE |
| Silicone | ||
COLOR |
| Brown | ||
Flammability Rating |
| Passes UL-510 Flame Test | ||
|
| Imperial |
| Metric |
Total Tape Thickness |
| 3.9 mils |
| 0.10 mm |
Tensile Strength |
| 37.7 lbs/in |
| 128 N/19mm |
Elongation |
| 71% |
| 71% |
Dielectric Strength |
| 11,000 volts |
| 11.0 kV |
More Specification
Model | Color | Substrate | Short-term heat resistance (℃) | Continuous use temperature(℃) | ||
Thickness (mm) | Width(mm) | Length (m) | ||||
NO.923S | Orange | 0.10 | 38 | 33 | -50/300 | -50/250 |
NO.923S | Orange | 0.10 | 50 | 33 | -50/300 | -50/250 |
