AC 220V Stroboscope For Packaging and Printing Industry

Shantou Wingtai Packing Equipment Co., Ltd.
AC 220V Stroboscope For Packaging and Printing Industry thumbnail-1
AC 220V Stroboscope For Packaging and Printing Industry thumbnail-2
AC 220V Stroboscope For Packaging and Printing Industry thumbnail-3
AC 220V Stroboscope For Packaging and Printing Industry thumbnail-4
AC 220V Stroboscope For Packaging and Printing Industry thumbnail-5
AC 220V Stroboscope For Packaging and Printing Industry thumbnail-6
AC 220V Stroboscope For Packaging and Printing Industry photo-1
AC 220V Stroboscope For Packaging and Printing Industry photo-2
AC 220V Stroboscope For Packaging and Printing Industry photo-3
AC 220V Stroboscope For Packaging and Printing Industry photo-4
AC 220V Stroboscope For Packaging and Printing Industry photo-5
AC 220V Stroboscope For Packaging and Printing Industry photo-6
US$ 188 - 216 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Wingtai
Model Number:
DT2010C
Power:
Electronic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shantou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Wingtai
Model Number DT2010C
Power Electronic
Usage Other, Still images, observation overprint, Still images, observation overprint

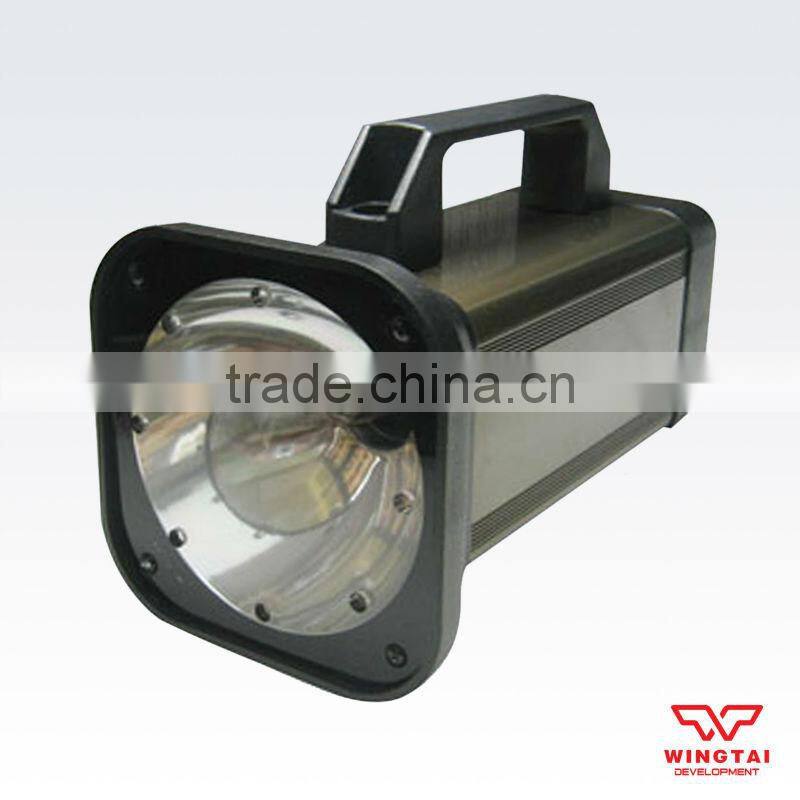

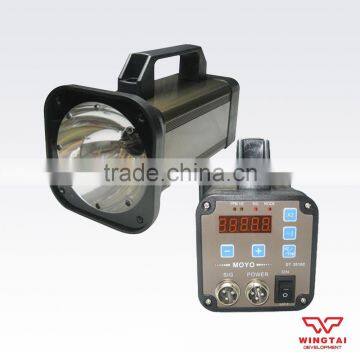

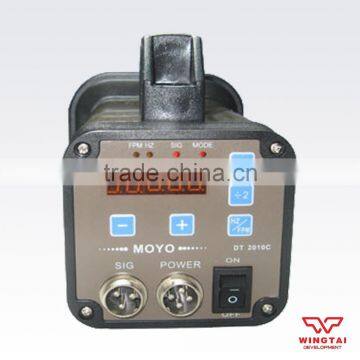

Stroboscope For Packaging and Printing Industry



Stroboscope is also known as instrument, stroboscope lamp, tachometer.  The instrument can be issued short-term and frequent flash, when adjusting the flashing frequency to match the measured object (such as: motor) speed of rotation or movement close to or synchronized, making high-speed movement of the measured object to be slow movements or relatively static.



People can easily observe the high-speed moving objects’ surface quality and physical activities, can also analyze object’s oscillation, moving contrail and observing printing on-line.





Technical parameters:



Type

DT2010C

Working power

AC 220V

Working frequency

50Hz~60Hz

Total Power

25W~100W

Internal trigger frequency range:

1roll / minute ~ 6000 rolls / minute

External Trigger frequency range

1 roll / min ~ 30000 rolls / minute

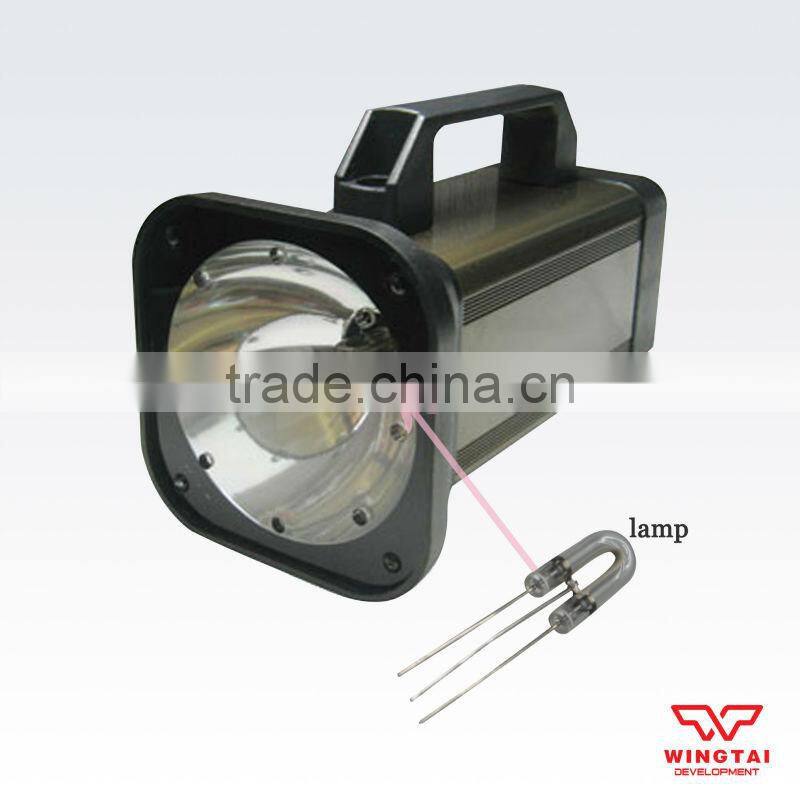

Germany Hyman lamp,

Working life is more than a hundred million times

Working temperature

0°C~50°C

Relative humidity

Lower than 75°C



Function:

Stroboscope with fast frequency flashing light. In stroboscopic instrument observation high speed rotation or movement of objects, by modulating stroboscope flashing frequency, and the measured object rotating or moving close to the speed of the object to be measured and synchronization, while at high speed, but it is the slow motion or relative rest. The persistence of vision, so that the people can be easily observed by high-speed operation object status.



Use:

Widely used in packaging and printing industry, can be detected by high speed printing process color, ink color matching, die cutting, punching, folding conditions; suitable for the textile industry, can detect the spindle rotation and loom weft cloth machine yarn; suitable for mechanical manufacturing industry, observe various rotor, gear machinery manufacturing movement; suitable in chemical, optical, shipbuilding and other industries.



Character

The appearance of fine lightweight, easy to carry; antistatic; simple operation; cost-effective advantages.
