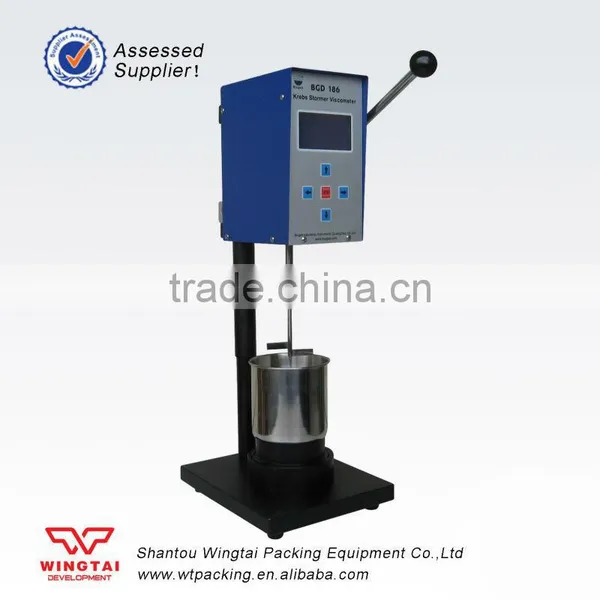

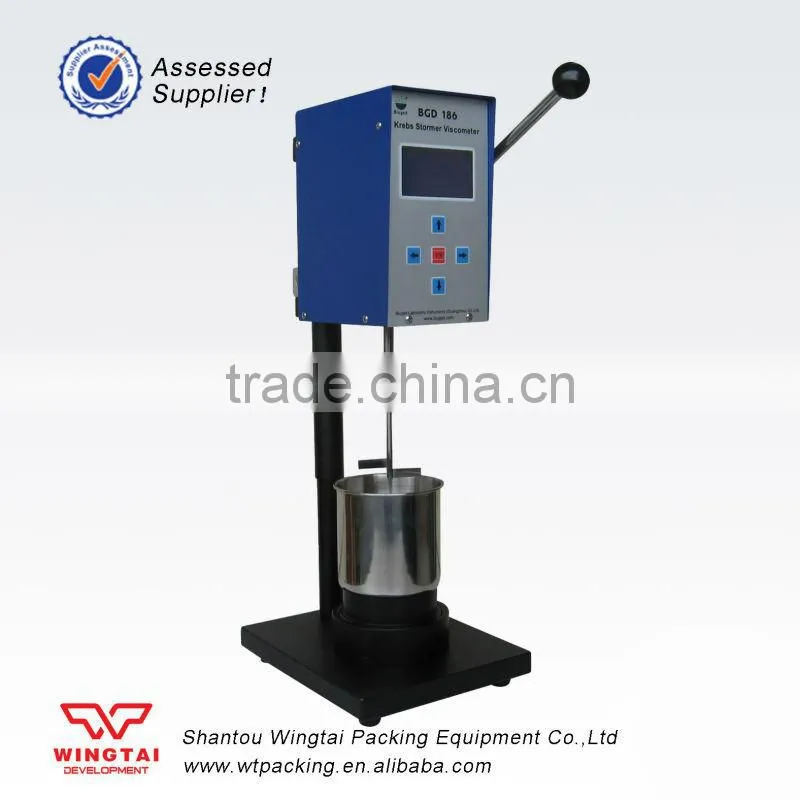

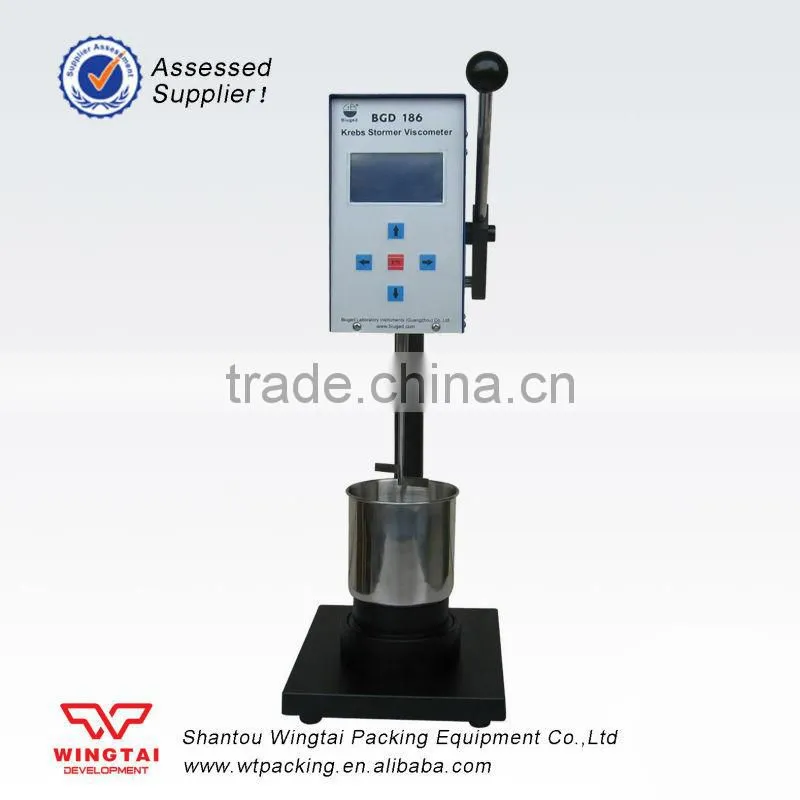

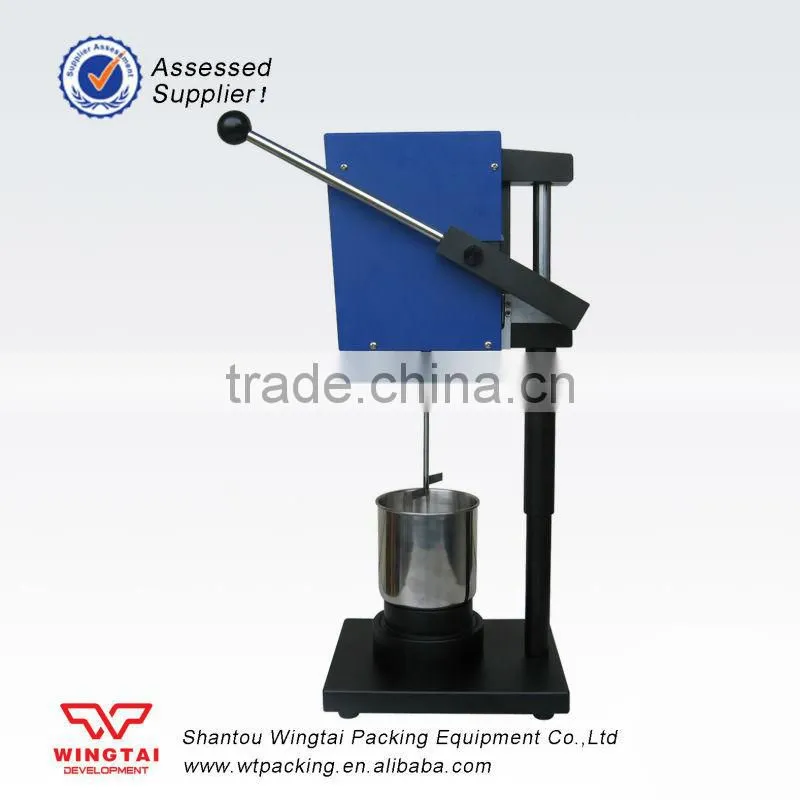

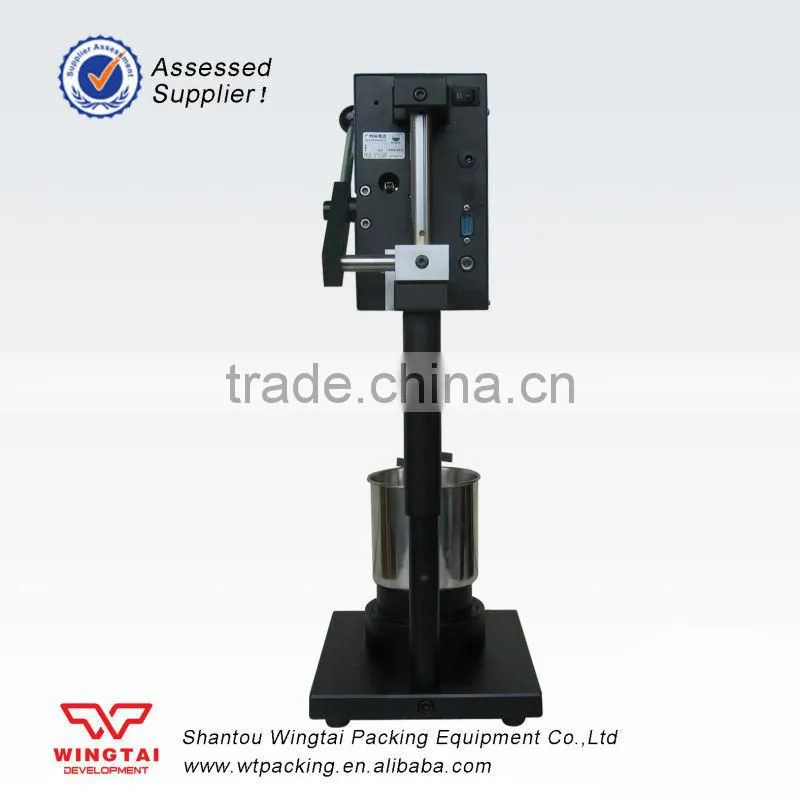

Intelligent Krebs Stormer KU Viscometer 186

Specifications

Paint Krebs Stormer
Intelligent Krebs Stormer Viscometer 186
ASTM D 562 and BG 9269 standard
Model 186 is improved products

Intelligent Krebs Stormer KU Viscometer 186

Paint KU Viscometer 186



Main Technical Parameters

1. Model No. : 186 ( New improved type based on BGD 184)

2. Reference standard : ASTM D 562 and GB 9269 standard

3. Display KU value , temperature value and CP value of sample which is tested

By LCD screen together .

5. Measure range : 40.2KU~141.0KU(KUV) ; 27-5250 CP

6. Accuracy : ± 2% full scale

7. Reproducibility : ± 1% full scale

8. The magnetic basic plate is convenient to fixup sample receptacle

9. The portable rotor blade connector . The replacing and cleaning of rotor blade is convenient .

10. Mixing shaft speed: 200r/min± 1r/min

11. Receptacle capability : about 500ml

12. Imput voltage : 220V 50Hz

13. Rotor speed : 200r/min±0.5r/min

14. Dimension: 210mm×180mm×500mm ( Length * Width*Height )

15. Net Weight : 7kg



Application

It used to apply in testing paint and other dote which showed KU value to identify Its viscosity . The operator just only immerge the mixing propeller blade into the stated depth of tested sample , then you can read the KU value and interrelated load value .
