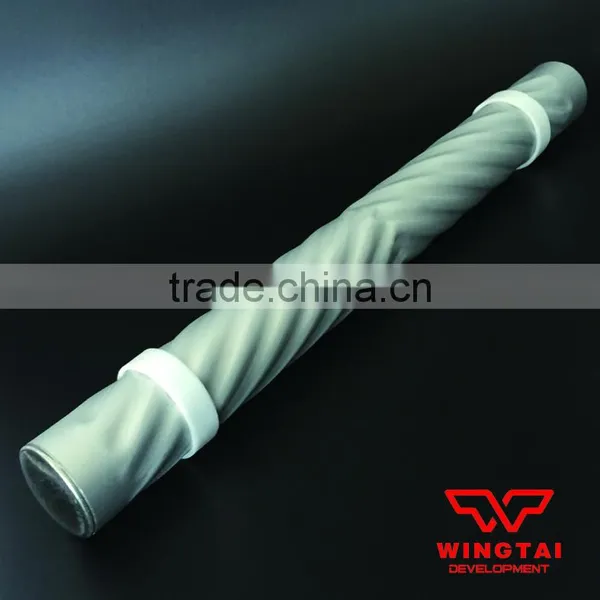

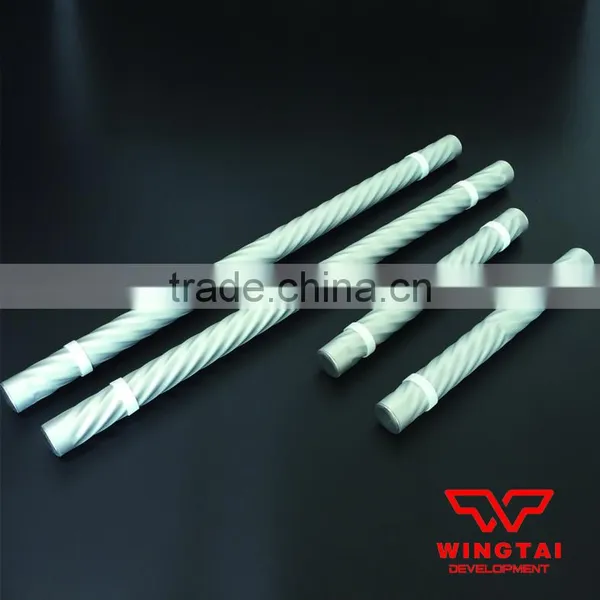

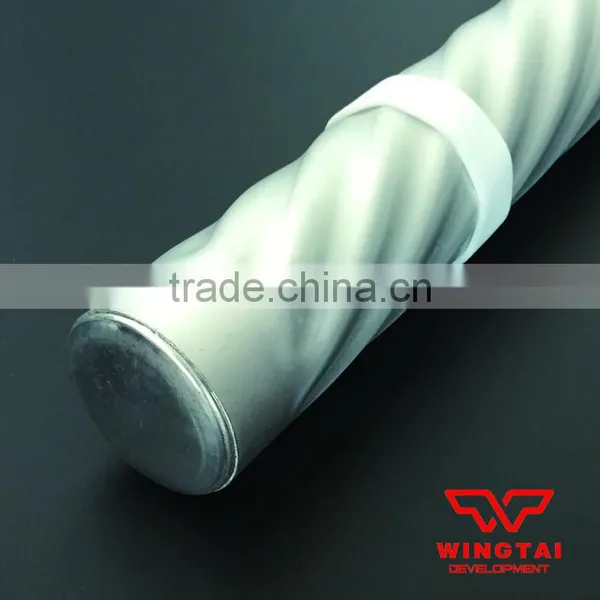

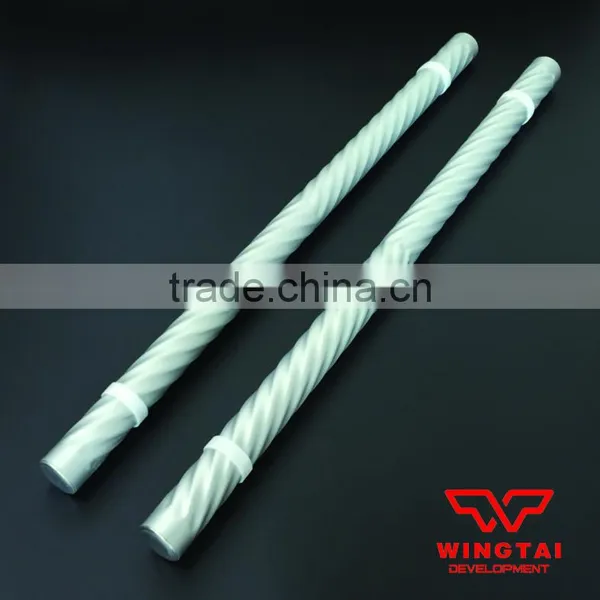

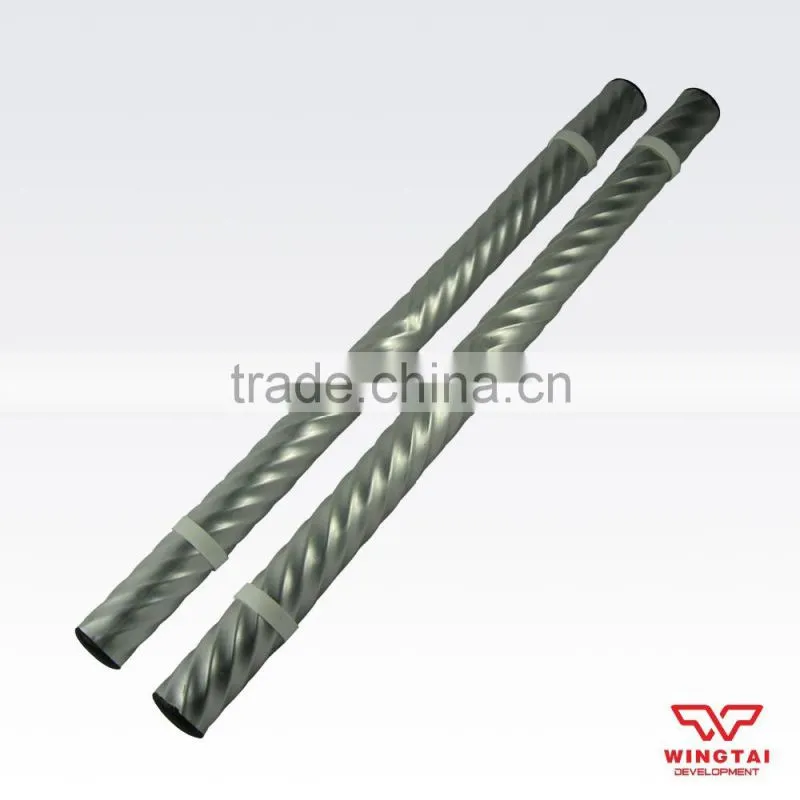

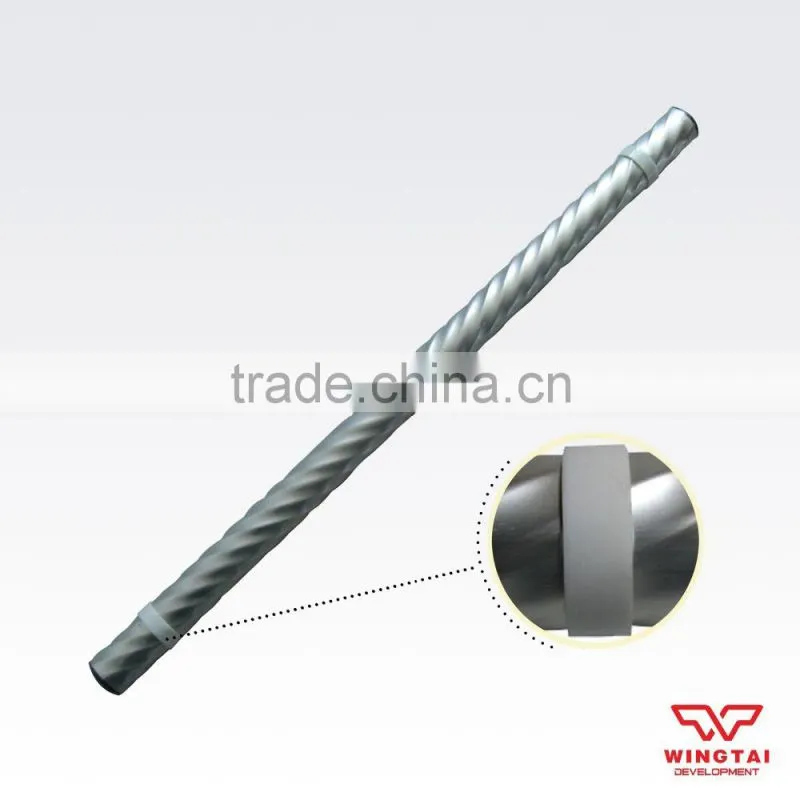

Gravure Printing Ink Stirring Roller with Isolated Rings
Description :
This product has good stirring performance of ink, printing ink stick up floating on the surface when printing roller rotates, the roller rotate in the opposite direction by the adsorption effect .corrugated surface to drive the nk, surface movement, printing ink mixing evenly ,so as to avoid the printing quality problems.
Features
- To prevent the ink getting agglomeration.
- Adsorb the scrap iron which is produced by friction onto the furnishing roll, keep the ink clean,
- Easy to clean.
- To remove the air bladder of the ink, improve the printing quality, reduce the unnecessary wastage during printing process.
Advantages
1.Eight two-way corrugated, increased rotation speed, no deviation;
2.The outer plastic smooth surface wear resistance, prolong its service life;
3.Plastic surface can better protect the plate cylinder and plate cylinder service life extension.
Function:
Suitable for printing in the compound process of mixing surface printing ink and glue, bubble elimination, prevent the surface of ink and glue crust
Item Name |
Model Number |
Material |
Diameter |
Length |
|
Eight Lines Ink Mixing Roller |
WT-03 |
Aluminum Alloy |
40/42 mm (Silver) |
L300~3000mm (Customized)
|
WT-03A |
Aluminum Alloy; PTFE Isolation Ring |
42 mm (Silver) |
||
WT-03B |
Aluminum Alloy; PTFE Stick Out Cover |
40/45mm (Silver) |
||
WT-03C |
Plastic |
42 mm (Silver) |
