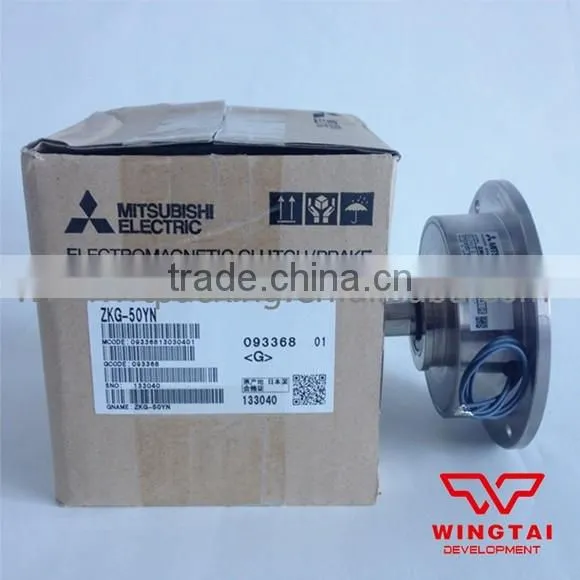

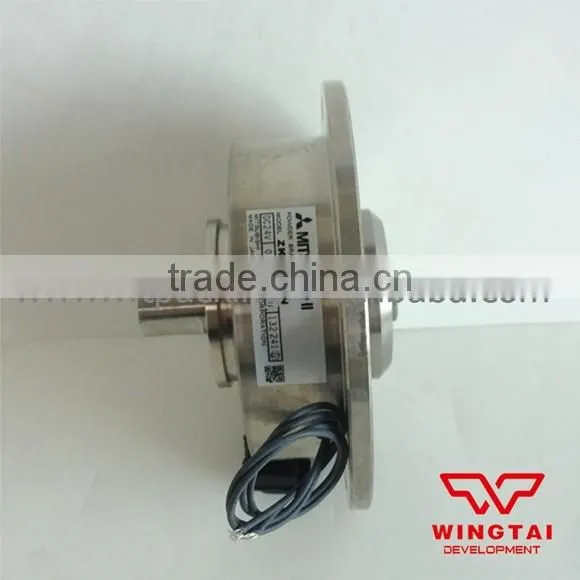

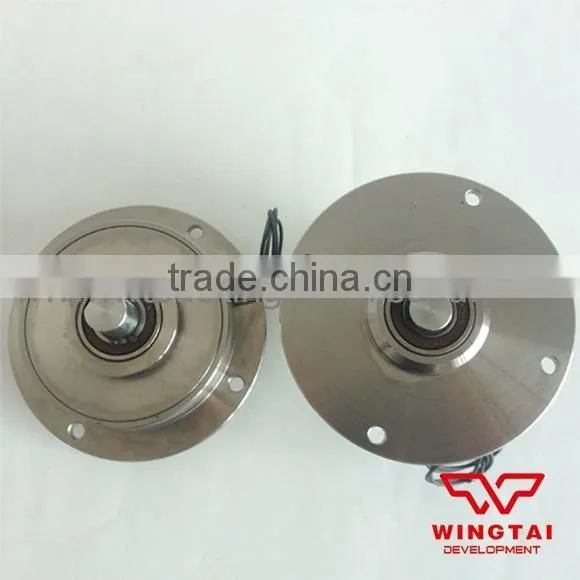

Magnetic Particle Brake ZKG-50YN Mitsubishi
Brand : Mitsubishi
Original Place : Japan
Model No.: ZKG-5YN, ZKG-10YN, ZKG-20YN, ZKG-50YN
·Rated torque : 0.5 ~ 5 (N · m)
·Automatic cooled projecting shaft type
1. The compact design of the mini-series products
2. Lower portion of the rotational moment of inertia
3. 5 r / min using is available
Specification
Model |
Rated torqe (N·m) |
Coil(75°C) |
Moment of Inertia ( kgcm² ) |
Allowable speed ( r/min ) |
Weight ( kg ) |
||
Current (A) |
Power (W) |
Time constant (S) |
|||||
ZKG-5YN |
0.5 |
0.35 |
8.4 |
0.02 |
9.4×10-3 |
1800 |
0.4 |
ZKG-10YN |
1 |
0.42 |
10.1 |
0.02 |
2.75×10-2 |
1800 |
0.54 |
ZKG-20YN |
2 |
0.5 |
12 |
0.04 |
5.25×10-2 |
1800 |
0.96 |
ZKG-50YN |
5 |
0.6 |
14.4 |
0.05 |
1.25×10-1 |
1800 |
1.3 |
Magnetic powder brake
Suitable for tension control, overload protection, torque loader. Such as printing presses, paper machine, rewinding machine, wire drawing machine, metal rolling machine, film processing machines, textile machinery; Another example is the motor, engine, hydraulic Restarder on the loading device do loading experiments.
Is based on the electromagnetic theory and using magnetic powder brake transmission torque. It has the excitation current and the torque is transmitted to a substantially linear relationship. Transfer torque with slip-independent case, has the advantages of fast response, simple structure, no pollution, no noise, no shock and vibration energy conservation. Is a versatile, superior performance of automatic control components. The powder brake widely different purposes of brake power test load applied to a variety of mechanical unwinding tension control.
