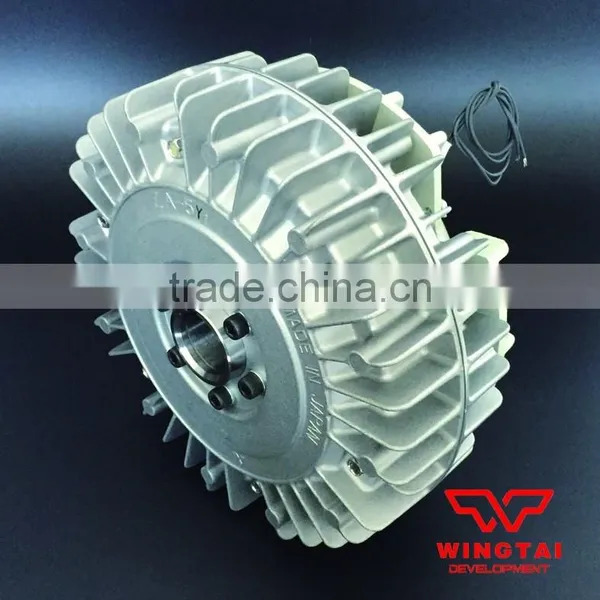

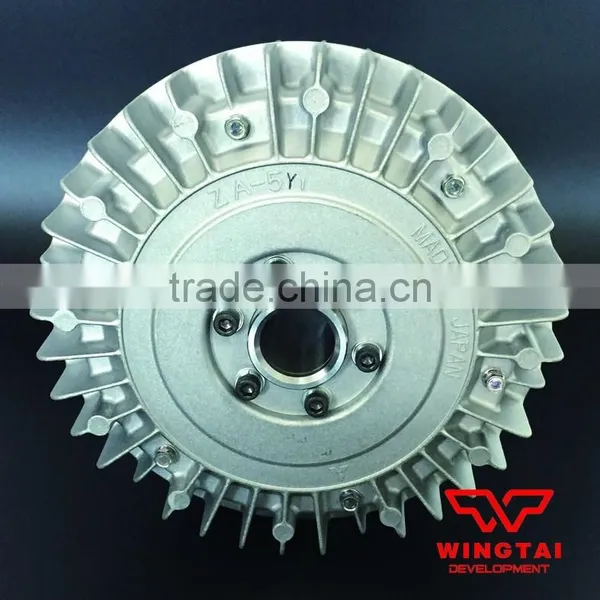

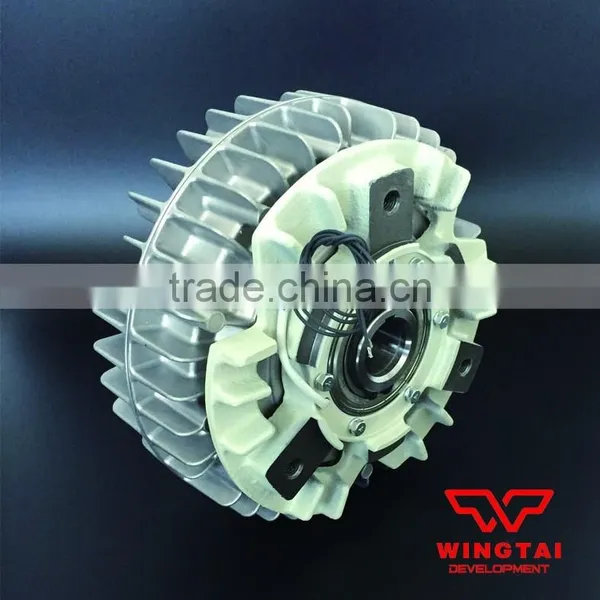

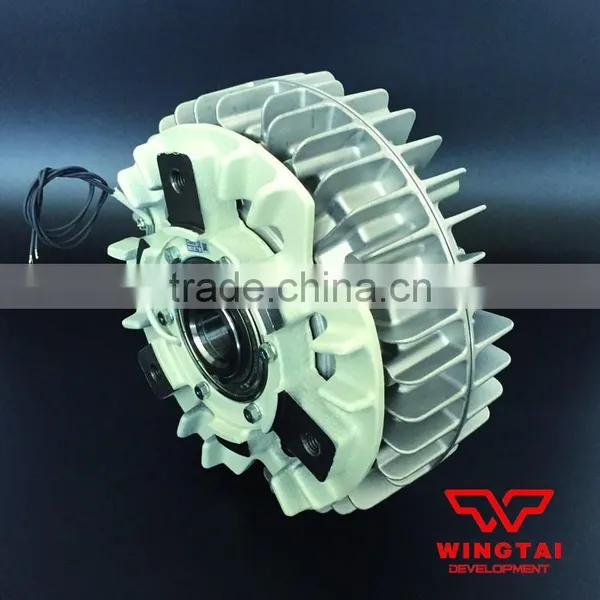

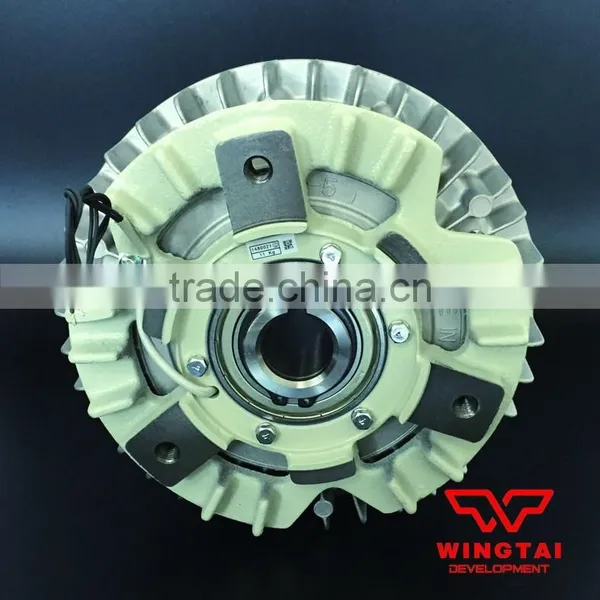

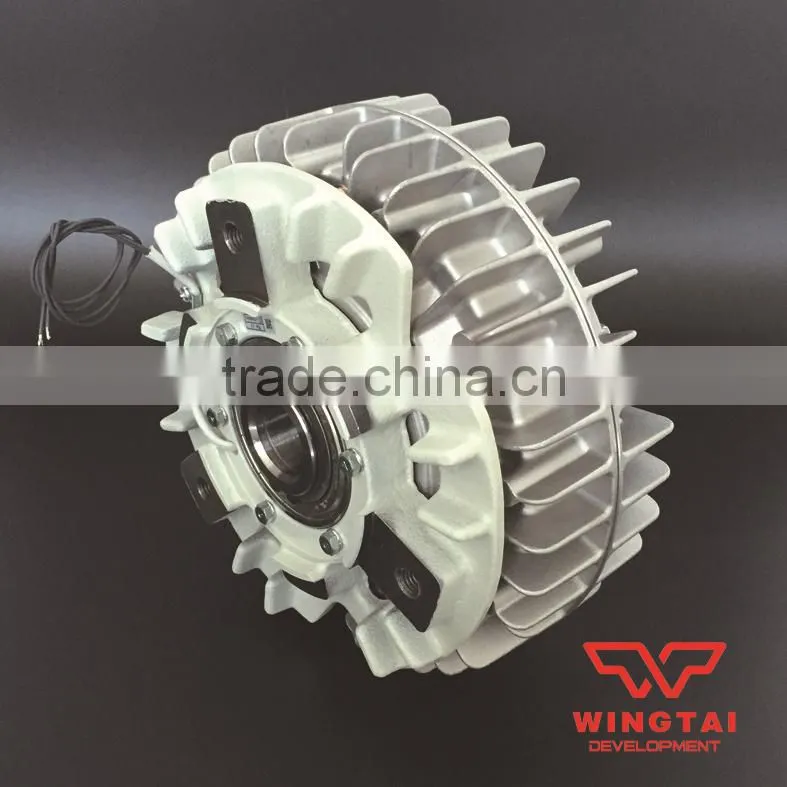

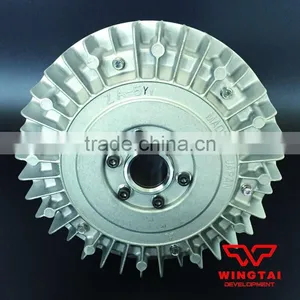

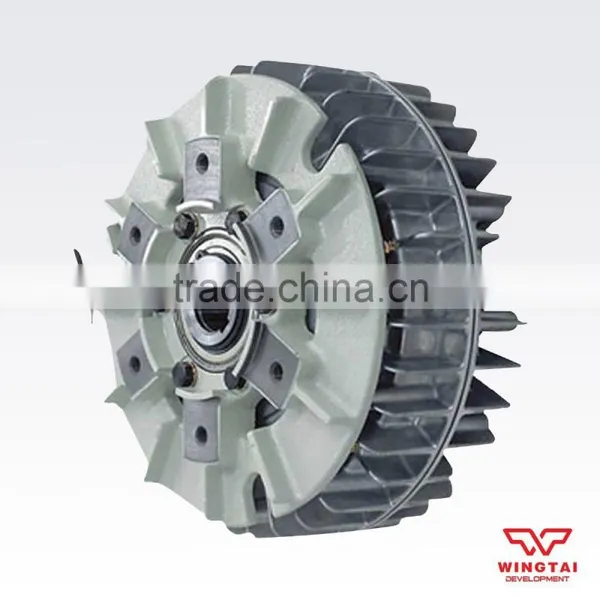

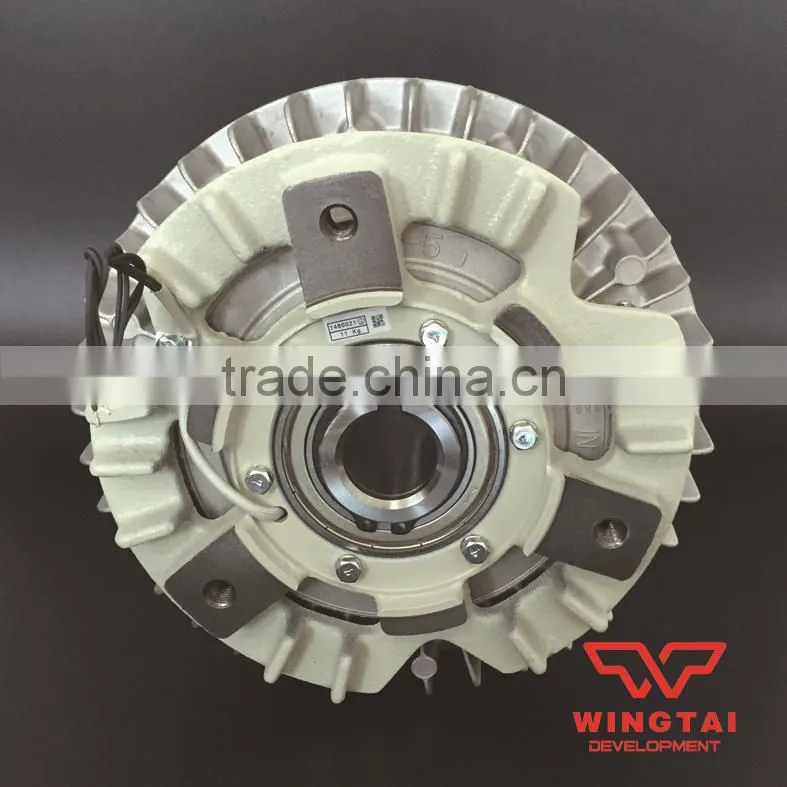

MITSUBISHI ZA-5Y1 Magnetic Powder Brake
· Rated torque: of 6 ~ 400 (N · m),
· Naturally cooled hollow shaft type
1. 15 r / min from available
2. the rotary models improve the cooling performance, to increase the thermal capacity of the outer peripheral
Specification
|
Model |
Rated torque (N·m) |
Coil(75℃) |
Moment of Flywheel J(kg/m^2) |
Weight (kg) |
Max. available speed (r/min) |
Magnetic particle weight (g) |
||
|
Current (A) |
Power (W) |
Time constant (S) |
||||||
ZA-0.6Y |
6 |
0.30 |
7.2 |
0.10 |
1.55*10^(-3) |
2.4 |
1,800 |
14 |
ZA-1.2Y1 |
12 |
0.39 |
9.4 |
0.13 |
5.5*10^(-3) |
5 |
1,800 |
25 |
ZA-2.5Y1 |
25 |
0.73 |
17.5 |
0.15 |
9.4*10^(-3) |
7.4 |
1,800 |
39 |
ZA-5Y1 |
50 |
0.94 |
22.6 |
0.17 |
2.3*10^(-2) |
11 |
1,800 |
60 |
ZA-10Y1 |
100 |
1.21 |
28.8 |
0.30 |
6.6*10^(-2) |
21.5 |
1,800 |
117 |
ZA-20Y1 |
200 |
1.9 |
45.6 |
0.60 |
2.0*10^(-1) |
39.5 |
1,000 |
255 |
ZA-40Y |
400 |
2.2 |
52.8 |
0.60 |
4.6*10^(-1) |
64 |
1,000 |
440 |
Advantages:
It is based on the electromagnetic theory and using magnetic powder brake transmission torque. It has the excitation current and the torque is transmitted to a substantially linear relationship. Transfer torque with slip independent case, has the advantages of fast response, simple structure, no pollution,no noise, no shock and vibration energy conservation. It is a versatile, superior performance of automatic control components.
Magnetic powder brake is used for tension controller, overload protector, torque loader, etc., such as printing machine, paper machine, rewinding machine, drawing machine, metal rolling machine, film machine, textile machinery, etc.; And as motor, engine, hydraulic press reducer when loading experiment of loading device.
