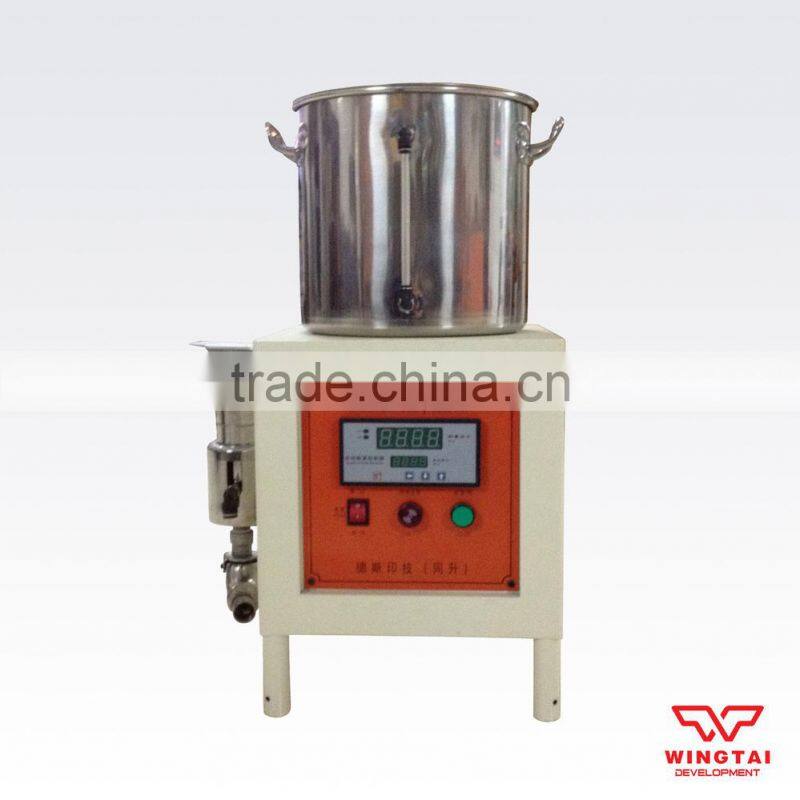

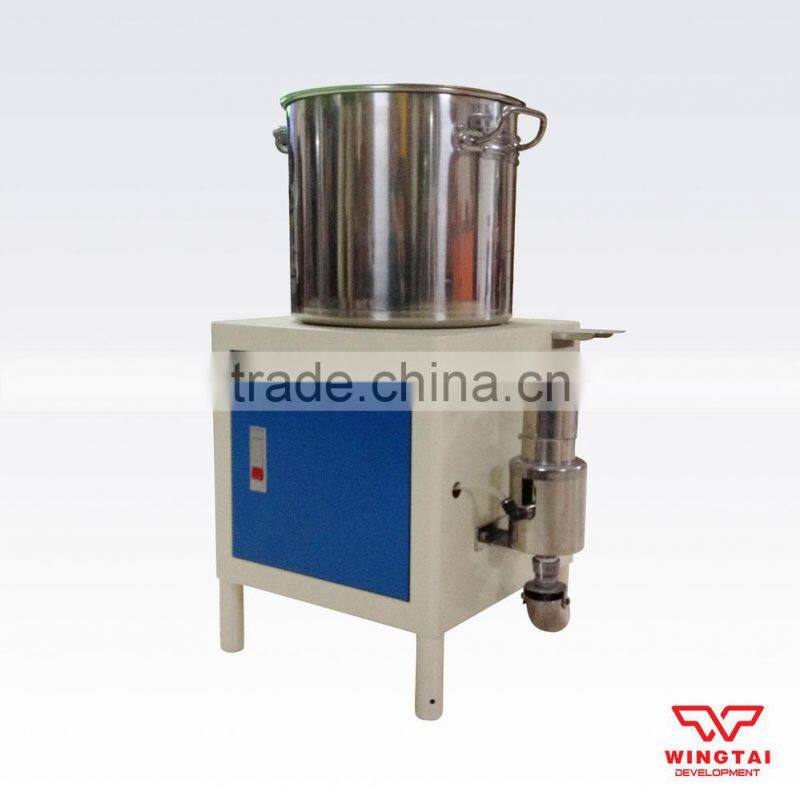

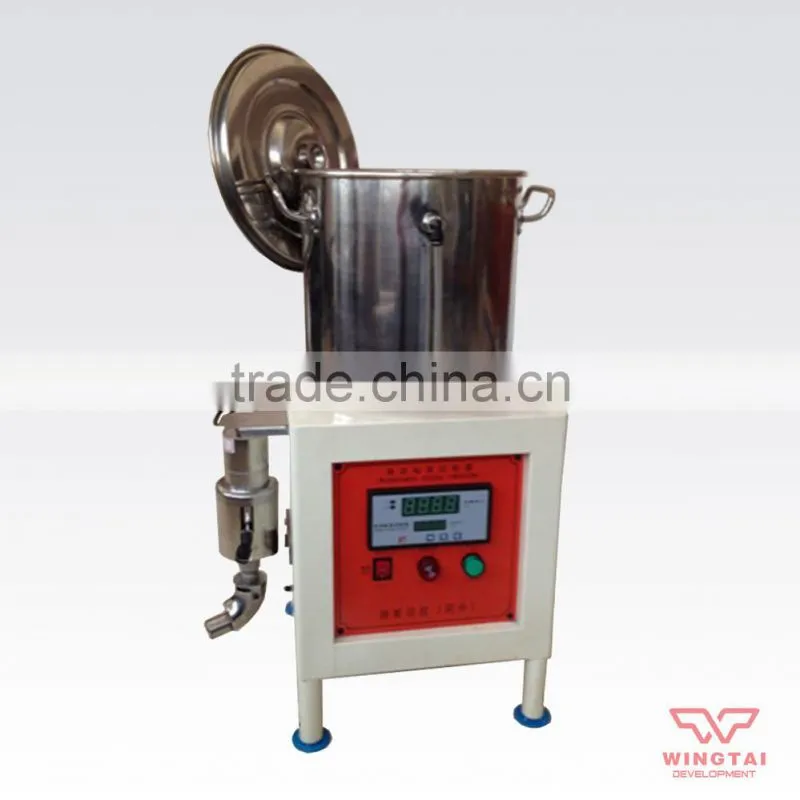

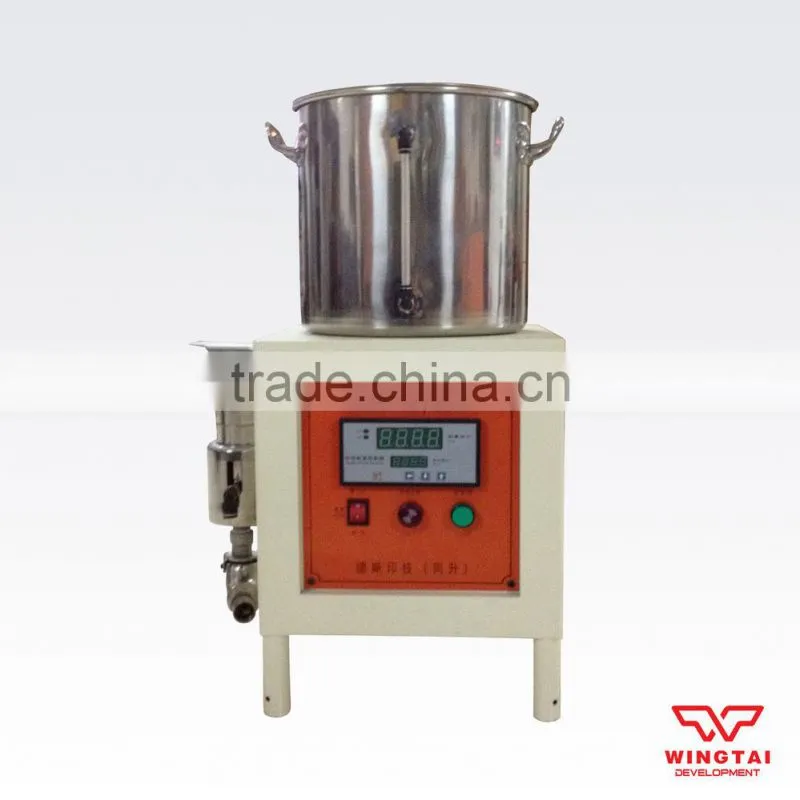

Automatic Viscosity Measure Machine Viscosity Controller
Technique Parameters:
Type: 470*390*870mm
Ink viscosity tracking range: 10~45 seconds
Ink viscosity controlling accuracy: < 0.5 second
Machine power: ≤ 10W
Net weight: 18kg
Power: 180~240V 50HZ
Is currently in the printing industry, ink viscosity regulating, controlling most of dilution of control by artificial means, from In the volatile solvent determines the depth of ink color will change with the change of time alone, artificial side Law difficult to monitor the viscosity of the ink color of ink is consistent from beginning to end, especially in the printing high-end products This problem is particularly prominent, thereby affecting the quality of products. The instrument based on this idea, as long as the Colorists asked for a transfer based on product quality, good ink color, viscosity, you can automatically monitor and control ink viscosity System accuracy.
Features:
1. You can continuously monitor the ink viscosity
2. With cup viscosity reading (in seconds) for the control unit, more intuitive operation
3. A single unit to complete the ink circulation, mixing, viscosity measurement and control
4. A stable ink viscosity can reduce printing defects
5. Significantly reduce the ink consumption of up to 10-15%
Characters:
1. Can automatically monitor and control the ink viscosity and color which adjusted by the ink adjuster, basically improve the printing quality.
2. Can monitor the ink viscosity continuously.
3. Take the viscosity cup’s reading unit “second” as the controlling unit, operate more directly and easily.
4. One single controller can finish the task of ink circulating, stirring, viscosity measuring and controlling.
5. The stable ink viscosity can reduce the printing deficiencies.
6. Can largely reduce the ink consumption, to 10%~15%.
REMARK:
Need to use the pneumatic diaphragm pump to circulate ink!
