Home > Products > Liquid Viscosity Control & Test Device > 20L Automatic Printing Ink Viscosity Controller
20L Automatic Printing Ink Viscosity Controller
- Shenzhen / Shantou
- T/T Credit Card PayPal
You May Like
-
Explosion-proof Type Paint,Ink ,Glue Viscosity Controller For Viscosity Control
-
Automatic Viscosity Controller ST-10
-
Single-Way Pneumatic Diaphragm Pump 5#
-
Aluminum Pneumatic Ink PTFE Membrane Pump 15#
-
1/2'' Aluminum Alloy Diaphragm Pneumatic Ink Pump
-
One Way Pneumatic Diaphragm Pump For Printing Industry Circulate Pumping Machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wingtai | |
| Model Number | BML-10V | Type | Other, Ink Viscosity Controller, Explosion-proof | |
| Use | Other, Any brand | Printing Type | Other, Any type |
Product Description

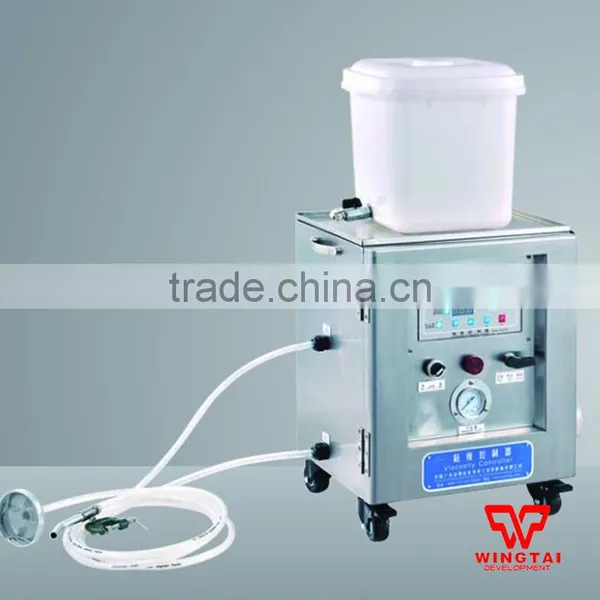

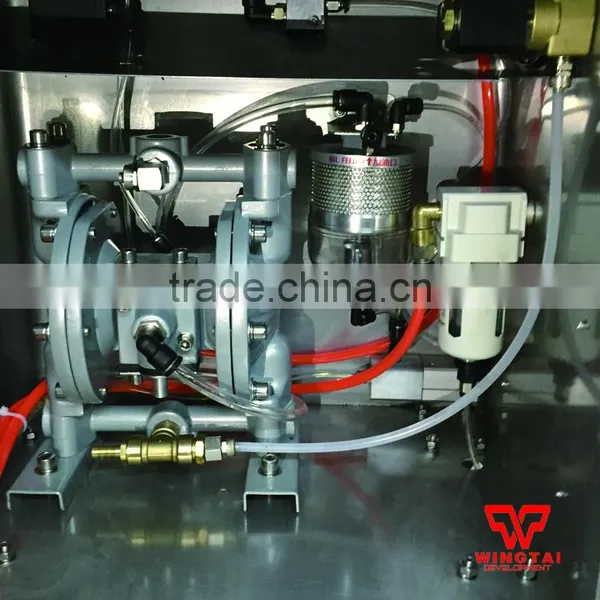

20L Automatic Printing Ink Viscosity Controller
The ink viscosity controller is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.Easy to use , no need manual adjust the ink,only need to set the viscosity value,according to the product requirement. Pulse detector testing viscosity, Pneumatic diaphragm pump cycle ink and glue. Safe&reliable, accurate detection of viscosity. Using viscosity controller automatic tracking& monitoring to make the viscosity consistent when printing, lamination, coating .
Technique parameters:
Model | BML-10V | BML-15V | BML-20V |
Dimension | 760*350*280mm | 760*350*280mm | 780*380*300mm |
Appearance | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
Net Weight | 19kg | 21kg | 25kg |
Control Range | NO.3:13~30s | NO.3:13~30s |
|
| NO.4:13~50s | NO.4:13~50s | |
Control Precision | 0.5s | 0.5s | 0.5s |
Suction Hose | 11*8mm*2m | 14*10mm*2.3m | 25*19mm*2.5m |
Delivery Hose | 10*6.5mm*2m | 11*8mm*2.3m | 25*16mm*2.5m |
Circulation Volume | 3.9 L/min | 8.8 L/min | 19 L/min |
Air Consumption | 40 L/min | 90 L/min | 160 L/min |
Working Pressure | 0.4MPa | 0.5MPa | 0.6MPa |
Working Voltage | 220V | 220V | 220V |
Max.Volume of Sub-tank | 20L | 40L | 80L |
1. Single unit can complete printing ink circulation, mixing, viscosity control
2. Improve the printing color consistency, greatly reduce the defect and guarantee the quality of the products
3.Timely to add solvent, sharply reduce the ink consumption up to 15 ~ 20%, effectively reduce the printing cost
4. Accurate control of viscosity, printing operators do not need to worry about viscosity change, can put more attention on other printing problems, also can save the manpower. Stable ink viscosity reduce printing defects.
5. The pump frequency (hz) as control unit, ensure the precise of the control precision
6. The equipment of pipe for the ink, solvent is pneumatic control valve, more efficient, safe and reliable.
7. Simple way of equipment maintenance, as long as half a gallon of solvent and one minute of time, can complete cleaning equipment

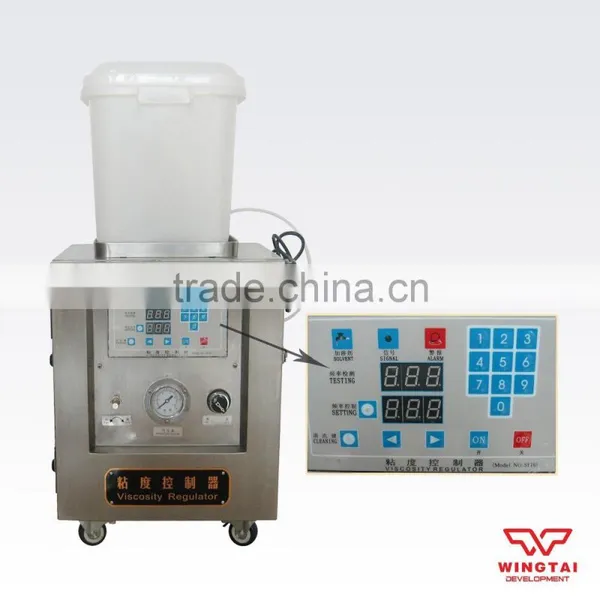

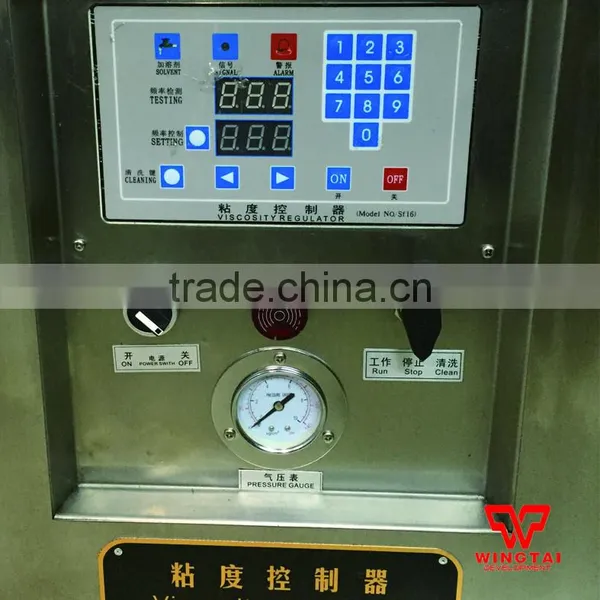

8. Using large digital display, easy observation, operation set, easy to adjust
9.Use automatic lubrication and oil recycling system, extend the service life of the diaphragm pump 3 times
10. Ink hose using special material more soft, strong recovery, not deformation, not distention
11. Compact structure, lightweight, easy to carry and install
12. Pneumatic diaphragm pump cycle ink is safe and reliable

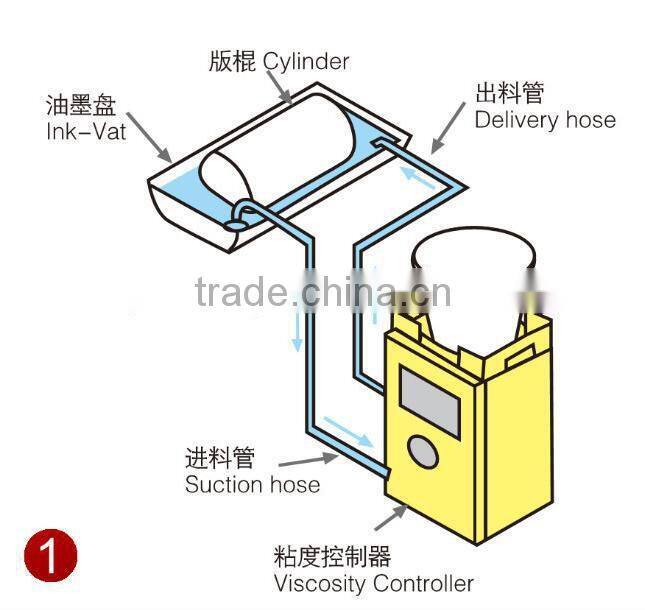

1. Direct Circulation

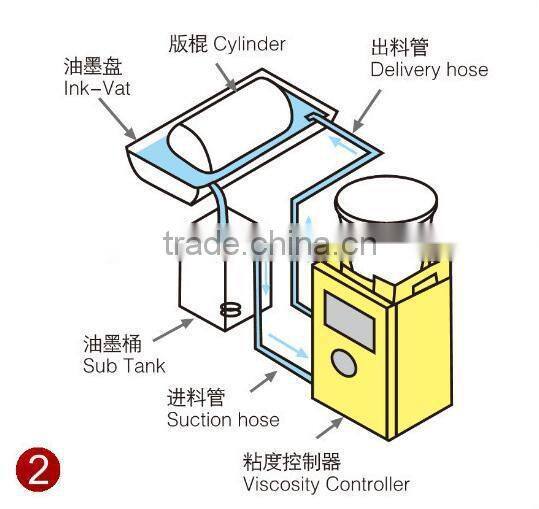

2. Circulation through sub ink-tank

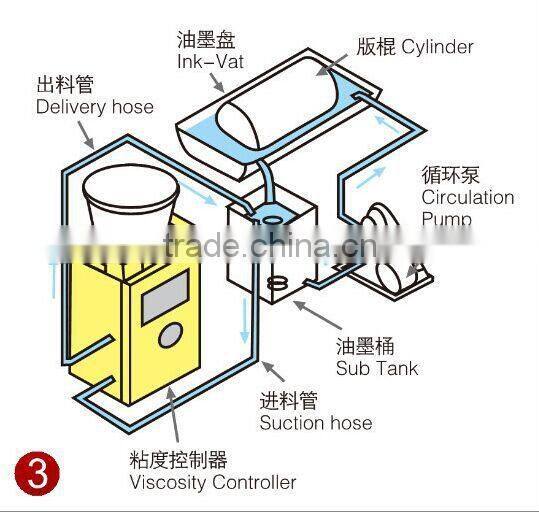

3. Circulation through sub ink-tank with using circulating pump

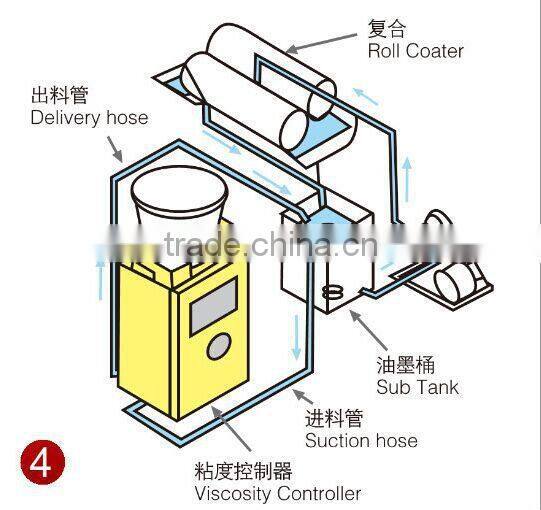

4. Circulation through sub ink-tank with circulating pump for roll coater.
5. Circulation through sub ink-tank for ink chamber
The more products or accessories pls feel free to contact us. Or to VISIT our web: wingtai
