Place of Origin Japan
Brand Name SIMCO
Model Number FMX-004

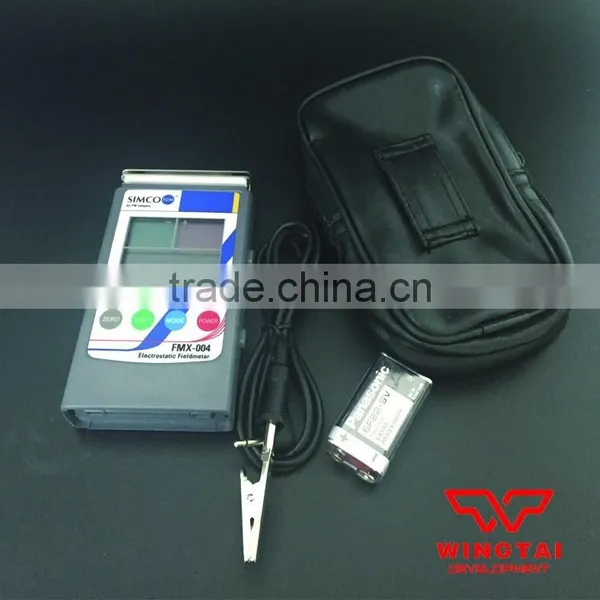

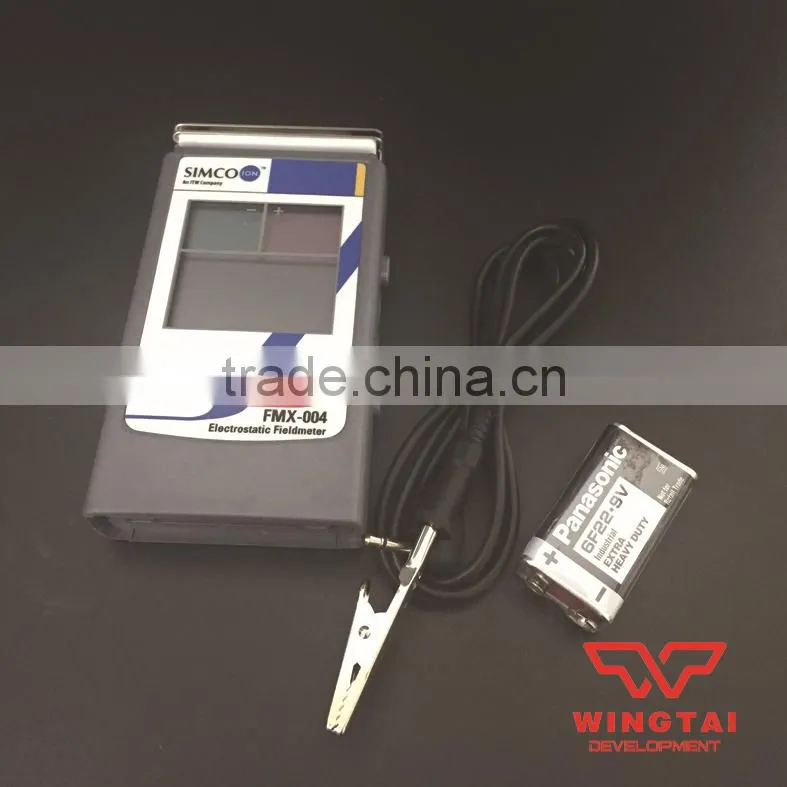

Japan Simco Electric ion balance tester



Electrostatic voltage tester



Brand: SIMCO

Product Name: Digital Electrostatic Fieldmeter

Place of Origin: Japan

Model Number: FMX-004



FMX-004 is the Latest Version of FMX-003



Feature



Features:



1.Four testing modes:

to choose the measuring range according to the MODE button.



2.Continuous testing of electrostatic:

(1) Ion balance continuous measurement and data record.

(2)Testing result display and record show in a whole memory.

(3) Confirm record of the product anti-static status.

(4) FMX-004: continuous testing for 30 hours



 3. Ion balance measurement:

(1) Ion balance measurement way according to the static electrical performance qualification

(2) ± 300 v potentiometric determination most suitable maintenance for all anti static devices.



Specification:



Model Number

SIMCO FMX-004

Measuring Range

(1) AUTOMODE(Au)

0 -±1.49kV(Low range)

±1.0kV - ±30.0kV(High range)

(2) Low MODE(Lo)

0 -±3.00kV

(3) Hi MODE(Hi)

0 -±30.0kV

(4) Ion balance voltage measuring mode[Ib]

0 - ±300V

(5) [MODE]Switch button in order can choose different mode:

 [Au]→[Hi]→[Lo]→[IB]switch in turn.

Measuring Distance

25mm ±0.5mm

Response Time

Less than one second

Accuracy

±10%

Ambient conditions

0℃ -40℃, 0 -60% R.H.

Sound

Beep sound when the power operation

Auto Power Off

Power is turned off automatically if the unit is left on for five minutes approximately.

For continuous operation red POWER button should be pressed more than

 three seconds when power is turned on.

Hold Function

Pressed once during the measurement, the digital numerical value

and the bar graph will be held on the display. But one more pressing of the button will

cancel the hold function to resume measurement

again with the red LEDs turned on

Analog Output

1. AUTOMODE
0 - ±3.0V(0 -30.0kV)
2. Low MODE
0 -±3.0V(0 - ±3.00kV)
3. Hi MODE
0 -±3.0V(0 - ±30.0kV)
4. Ion balance voltage measuring range
0 - ±3.0V(0 -±300V)

Power Supply

 9V, dry cell(006P); life: approx. 30 h

Overall size

(1) Without ion balance plate:

115 mm (L) x 73 mm (W) x 25 mm (H);

(2) With ion balance plate:

123 mm (L) x 73 mm (W) x 25 mm (H);

Case material

Conductive resin ABS (Gray)
