Carbon Fiber Anti-static Brush For Printing Machine
- Shenzhen/Shantou
- Credit Card
You May Like
Product Details
| Brand Name | Wingtai | Model Number | TY-54K | |
| Type | Other, Industrial Brush, Carbon fiber anti-static brush | Brush Material | Other, Carbon Fiber, Carbon Fiber | |
| Function | Other, Eliminate Static Electricity, Eliminate Static Electricity |
Product Description

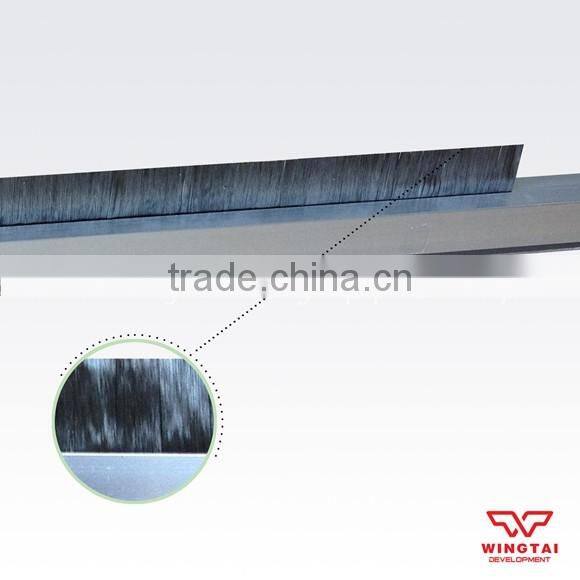

Carbon Fiber Anti-static Brush For Printing Machine
Carbon Fiber Anti-static Brush for Gravure and Flexo Printing Machine , Bag Making Machine , Film Laminate Machine and Electronic Industry
The static electricity generated in the gravure process is an important factor to affect print quality and even will generate too strong electrostatic sparks, causing a fire. Plastic and paper industry, the carbon fiber static brush has been the product of choice to eliminate static electricity, carbon fiber static brush is easy to install, low cost and have a role to eliminate static electricity and access to a wide range of applications. Carbon fiber itself can be a corona discharge and contact discharge, can play a role to eliminate part of the static electricity. Coupled with its excellent electrical conductivity and stable physical and chemical characteristics, and greatly enhance the elimination of static electricity in plastic and paper industry applications.
Selection of Italian carbon fiber length of wool production of various specifications to eliminate static brush suitable in high-speed printing machinery, cutting machine mechanical, bag making machinery, laminating machine packaging machinery.
Technique Parameters :

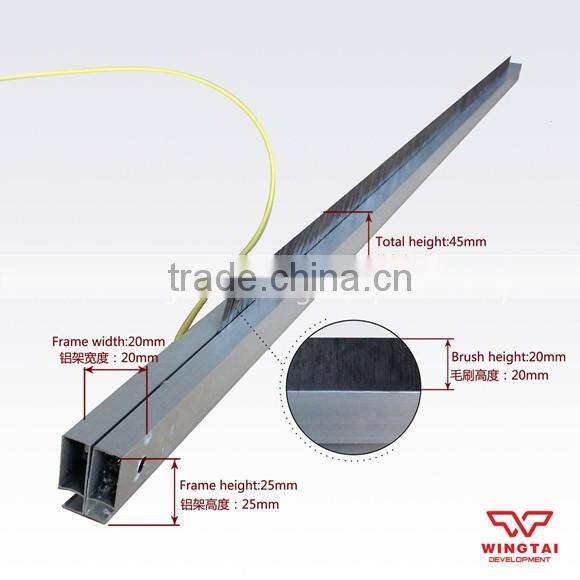

Superconductivity Fiber: H54mm * L (aluminum frame h30mm, brush h24mm) length according to the demand custom.
Black Fiber:H45mm * L (aluminum frame h30mm, brush h24mm) length according to the demand custom.
Clip Black Fiber:H45mm * L ( aluminum sheet h30mm, brush h24mm) length according to the demand custom.
We can make different length brushes according to client’s demands
Features:
1,Conductivity: 1 meter long static brush resistor R ≤ 1Ω, the conductive carbon fibers of 20 to 100 times higher or more. Its conductivity approximate the excellent characteristics of the conductor.
2,Softness: having a cloth-like softness, does not scratch the material in contact, can be effective and timely manner to eliminate static electricity.
3,Corrosion: brush itself with acid, alkali, oxidation resistance, high temperature resistance, low temperature, etc.;, nor alter the characteristics of even long-term immersion in toluene, methyl ethyl ketone Solvent.
4,Open flame resistance: not afraid of fire, fire does not change the performance.
5, No electricity, no risk of electric shock, does not produce harmful rays, do not pollute the environment.
Function:
1. It can eliminate static electricity, prove the printing, peritoneum and bag making effect, avoid the hidden danger of fire.
2. It suitable for all kinds of packaging machine such as high speed printing machine, slitting machine, bag making machine and peritoneum machine.
Introduction and advantages of the product:
1.Environmental protection performance, low power consumption, corrosion resistance,efficient eliminate static.
2.Acid and alkali resistance, resistance to oxidation, high temperature resistance, low temperature
Installation method:
Brush fixed later, with the vertical distance of the film to 2mm for the best.(At both ends of the edge of the aluminum frame mounting bracket, both sides of the bracket are perforated, for easy installation).

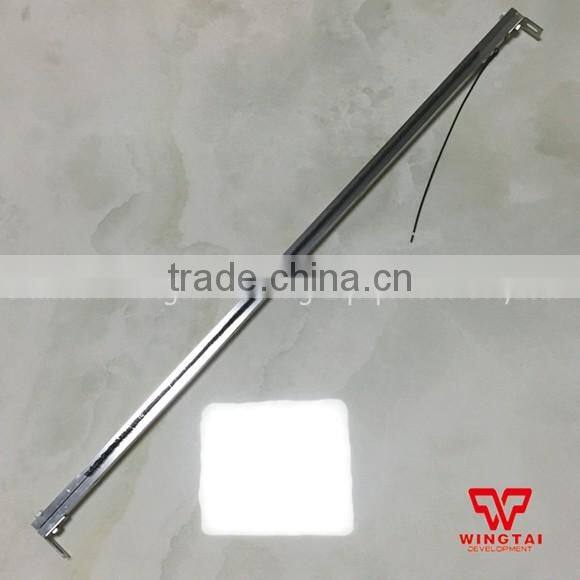

Short Brush with thin aluminium rack for easier installation.
Please Click the Headline to View More...
|
|
|

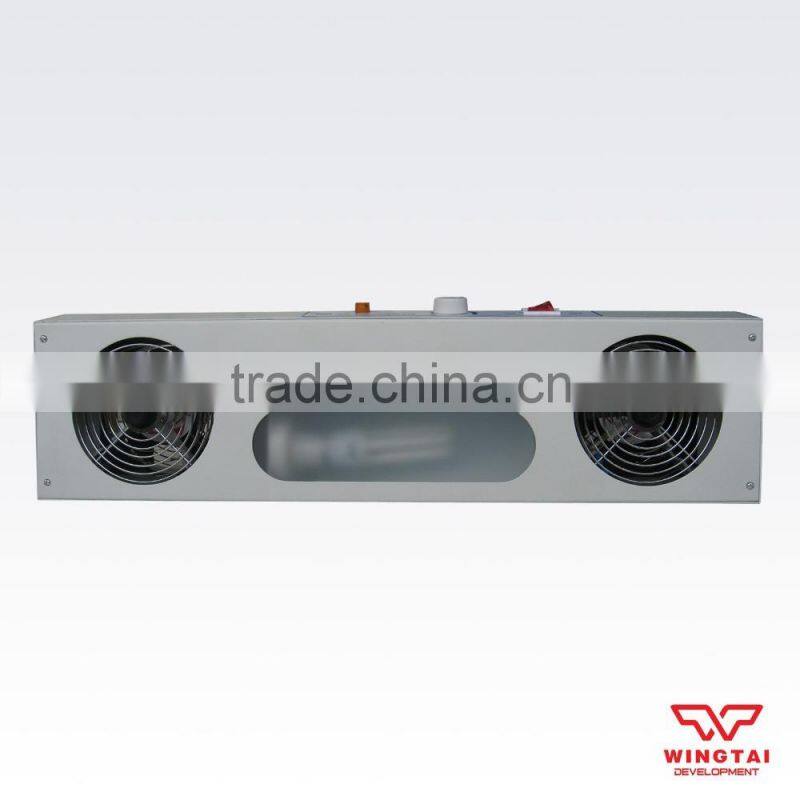

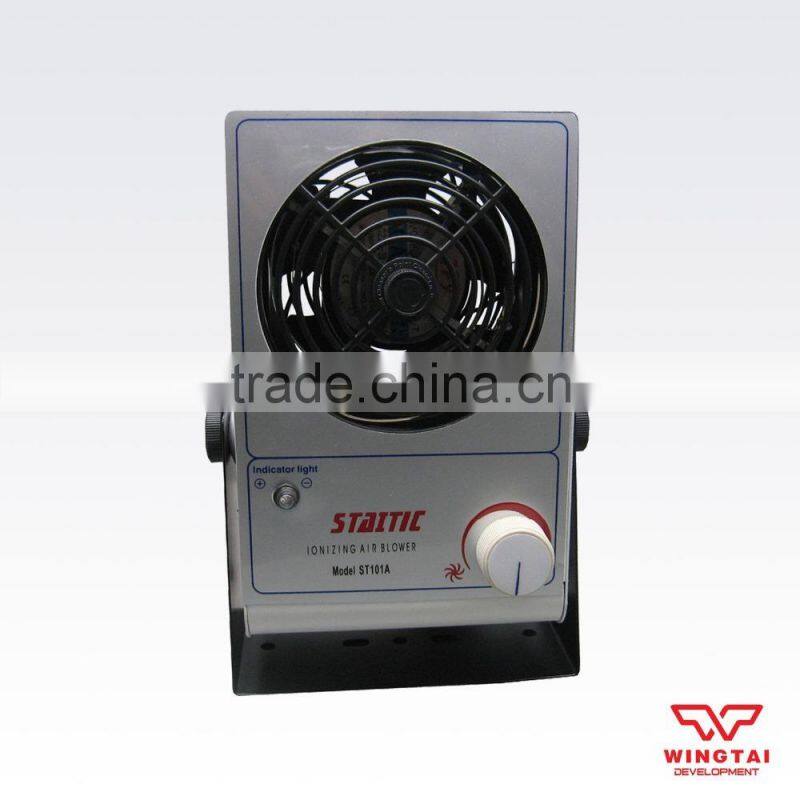

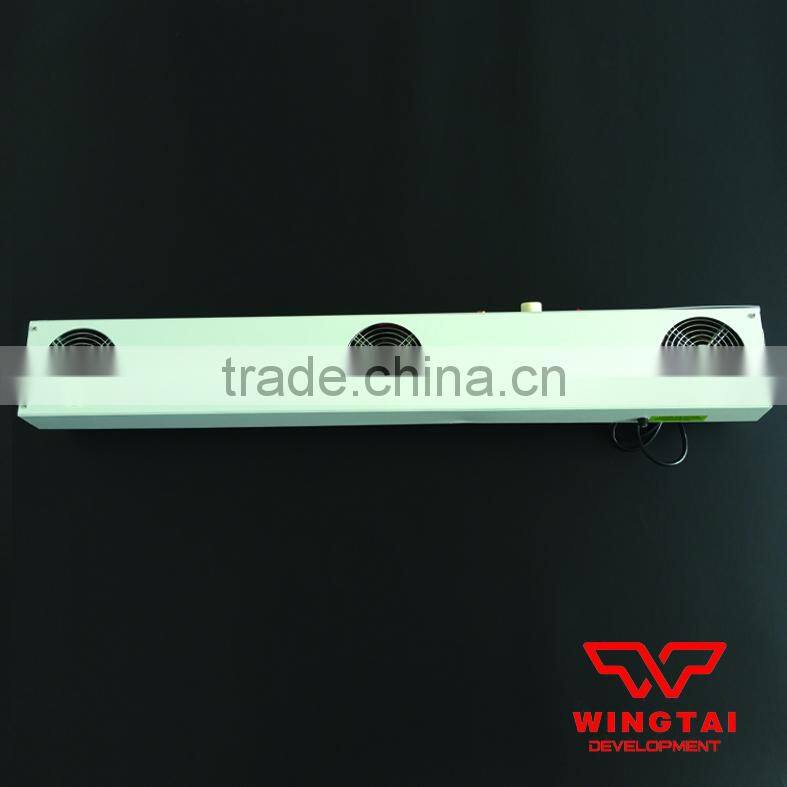

Ion Blower(One fan) | Ion Blower(Two fans) | Ion Blower(Three fans) |
|
|
|

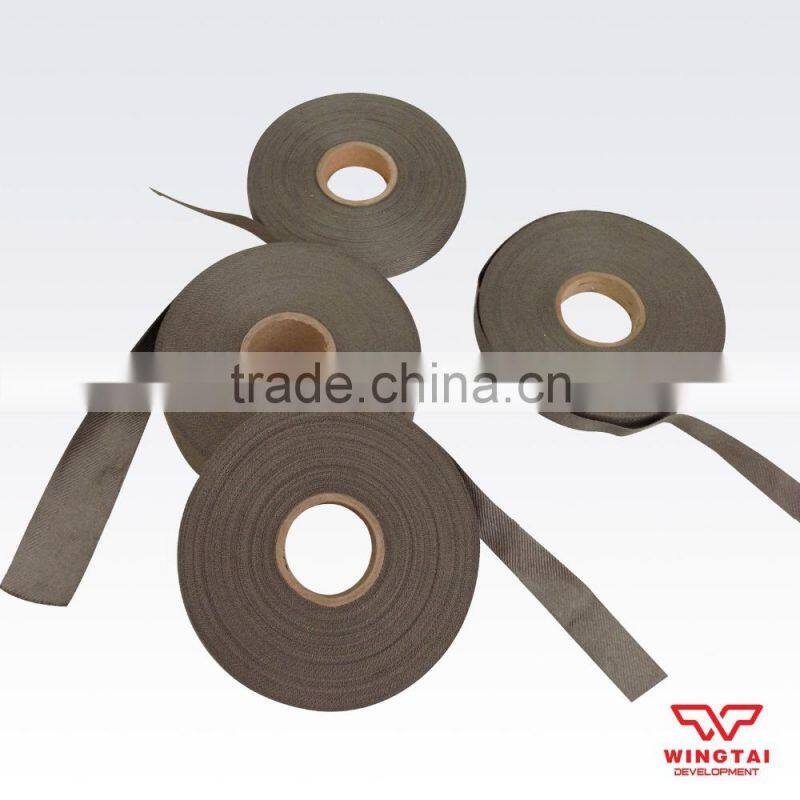

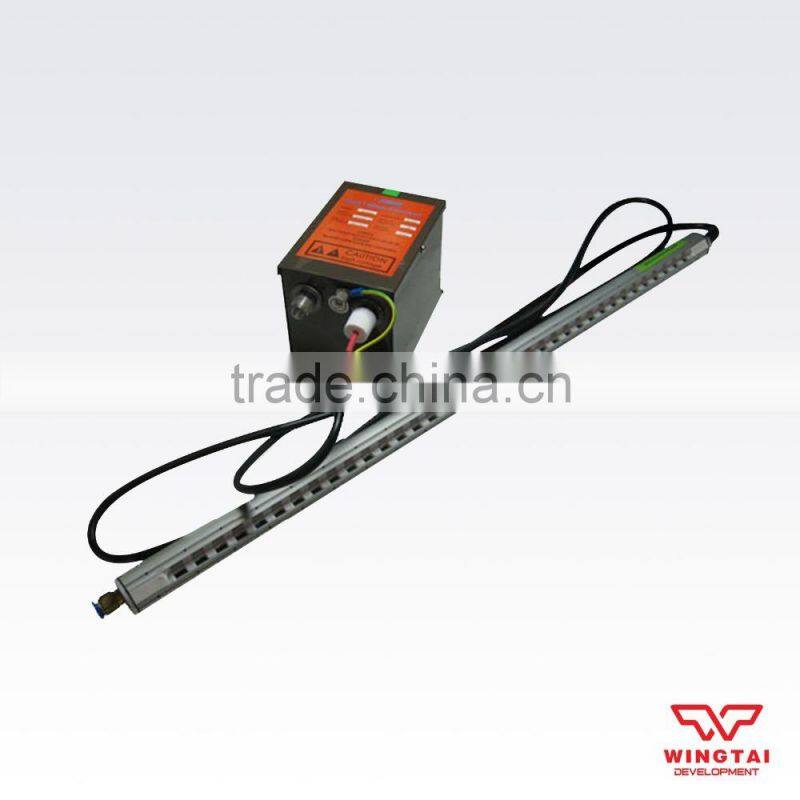

Anti-static Ion Bar | Anti-static Brush | Antistatic Belt |
|
|
|

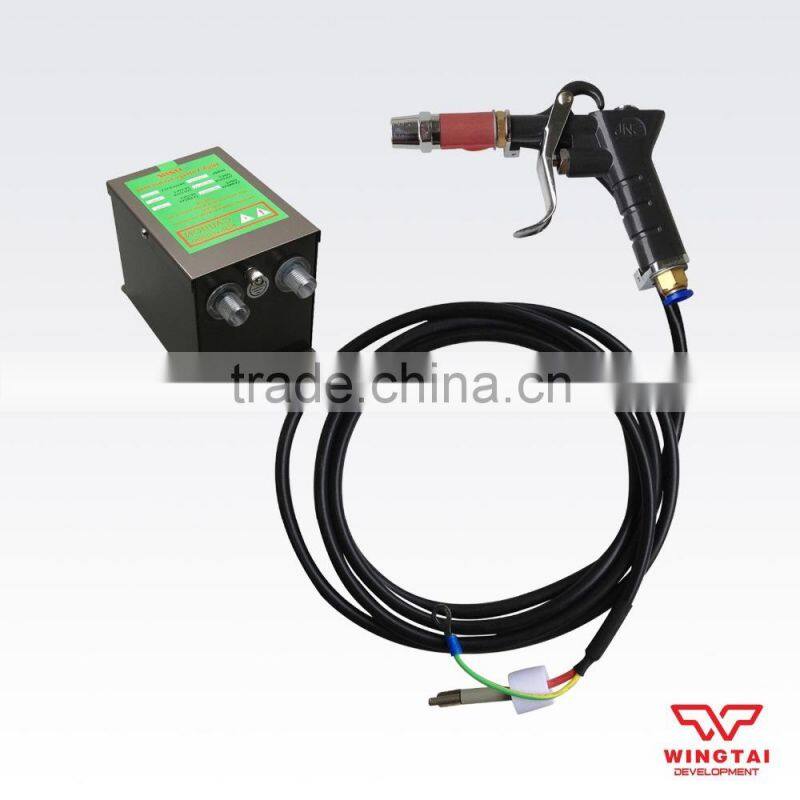

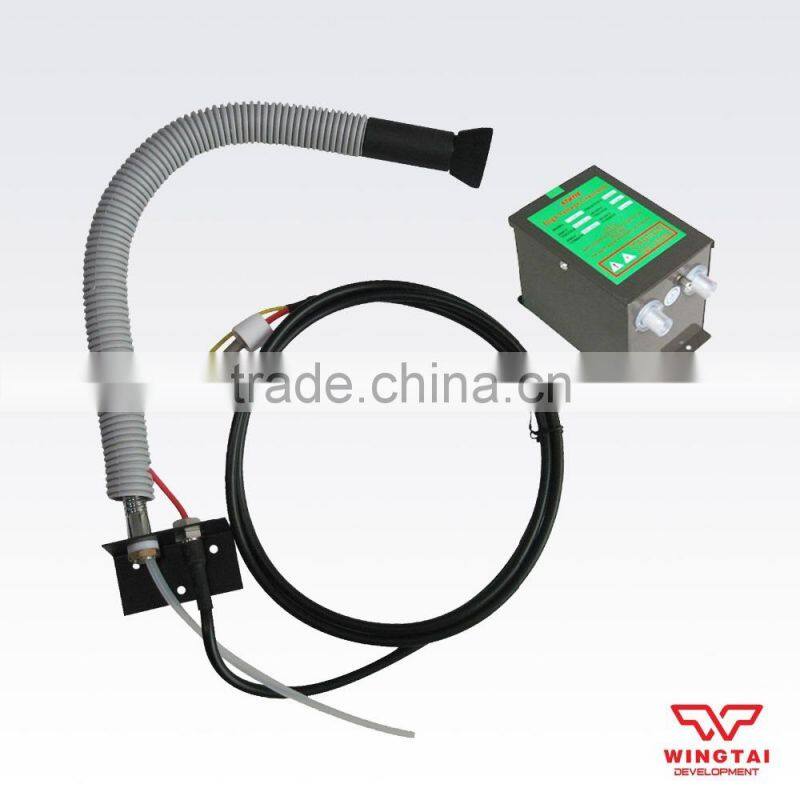

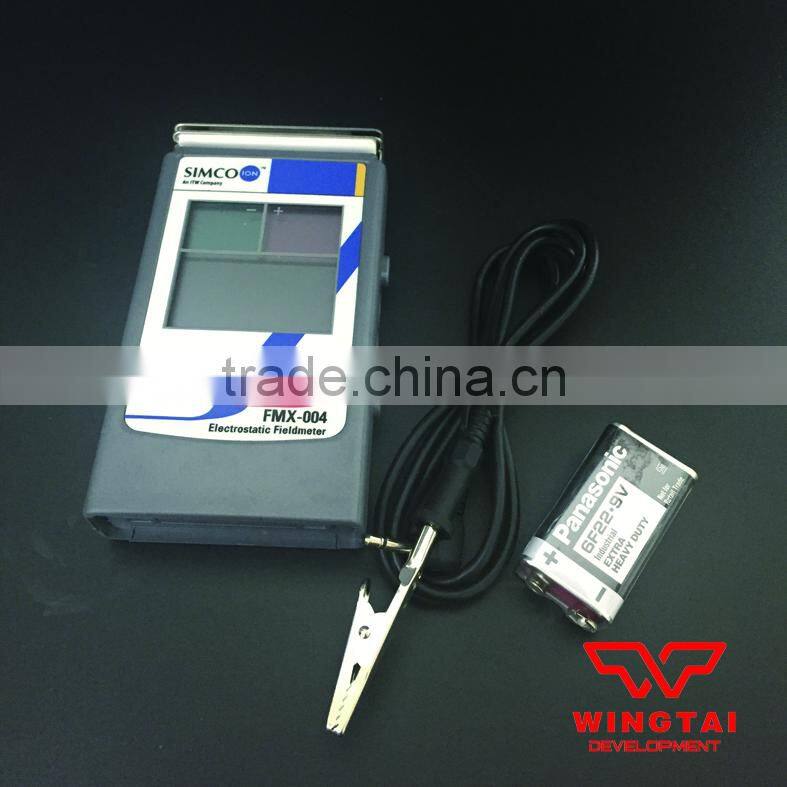

Anti-static Ion Air Gun | Anti-static Ion Nozzle | Simco Fildmeter FMX-004 |
