Professional Cold Storage Cooling Freezer Room

Professional Cold Storage Cooling Freezer Room photo-1
Professional Cold Storage Cooling Freezer Room photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Model Number:
ANE-002
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Model Number ANE-002
Certification CE/SGS
Warranty 1-2 Years
After-sales Service Provided Engineers available to service machinery overseas

Product Description:

Modular Cold Room / Tunnel Freezer Room / CA Cold Storage/Combined Cold Room/Cold Storage Panel Sliding Door /Cold Room Storage/ Blast Freezer Room

Detailed Product Description
"Top-10 brands in China"
Bitzer Germany compressor
Dafoss Denmark controller


Features:
1. Temperature range: -40ºC~ + 20ºC are all available

2. Size: Customization
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency.
7. Adjustable indoor temperature saves up to 30% electricity.


Classification:
Cold storage temperature: -5ºC ~ + 10ºC
Freezer storage temperature: -25ºC ~ - 18ºC
Quick-frozen storage temperature: -40ºC ~ - 18ºC

Constant temperature: Customer's request
Storage of produce: Customer's request


Components:
Condensing unit: Bitzer, Copeland, Maneurop, Fusheng , Hanbell
Evaporator: Meluck air cooler.
Insulation Panel: PU, EPS
Other accessories:World-famous brands, like Danfoss, Castle, Every Control,Siemens,LG

Cooling Type

Air Cooled Type

Condenser Fan

Water Cooled Type

Water Cooled Condenser and Cooling Tower

Evaporative Cooled Type

Evaporative Condenser



Room Size Type

Room Size

Small

Middle

Big

Volume Range

<50m³

50m m³~300 m³

>300 m³





   Temperature Table for Reference

Cold Storage Goods

temperature range

Processing Room

10ºC

Fruit, Vegetable, Dry food

0ºC  ~-5ºC

Medicine, Cake, Pastry, Chemical Material

0ºC  ~-5ºC

Ice Storage Room

-5ºC  ~-10ºC

Fish, Meat Storage

-18ºC~-25ºC

Deep Freezer.

-25ºC  ~-35ºC



Compressor Type and Condenser

Compressor Type

Bitzer(Germany)

Refcomp(italy)

Copeland(US)

Manurope(France)

Condenser

Air Cooled

Water Cooled

Evaporating

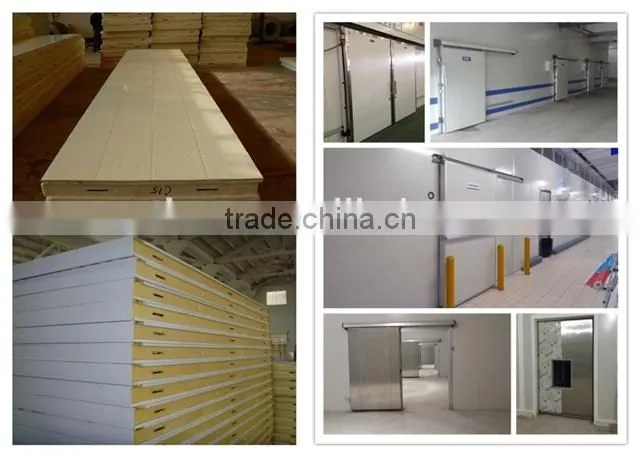

Panels' Information

Office Foam Panel

50mm thickness

Processing Room 10ºC

50mm/ 75mm PU

5ºC

75mm/ 100mm PU

-18ºC

100mm/ 150mm PU

-25ºC / -35ºC

150mm/200mm PU

Panel Steel Cover

SS, GI, aluminum etc

 Professional Cold Storage Cooling Freezer RoomProfessional Cold Storage Cooling Freezer Room
