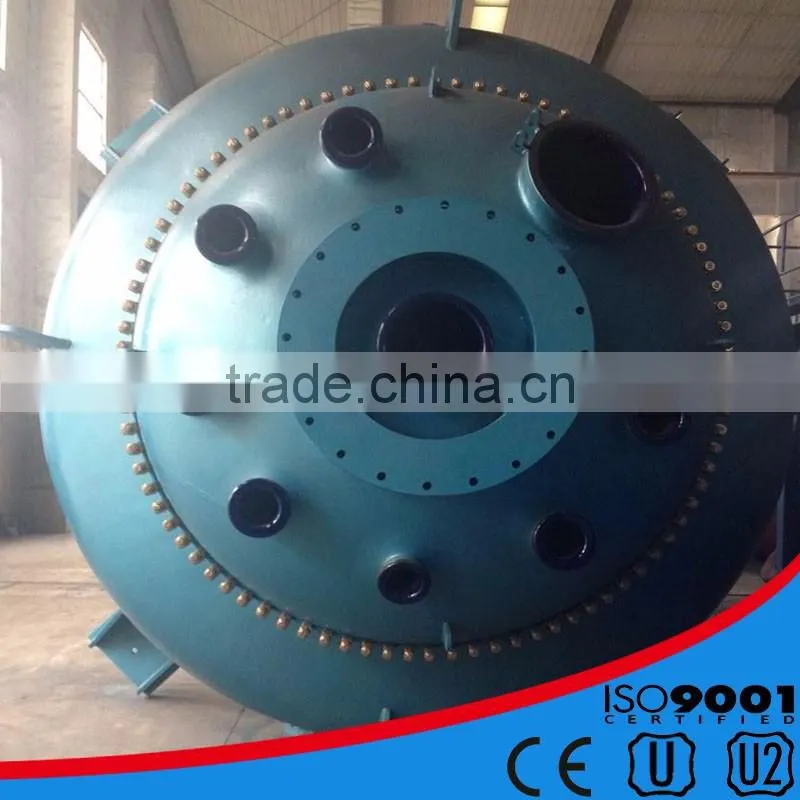

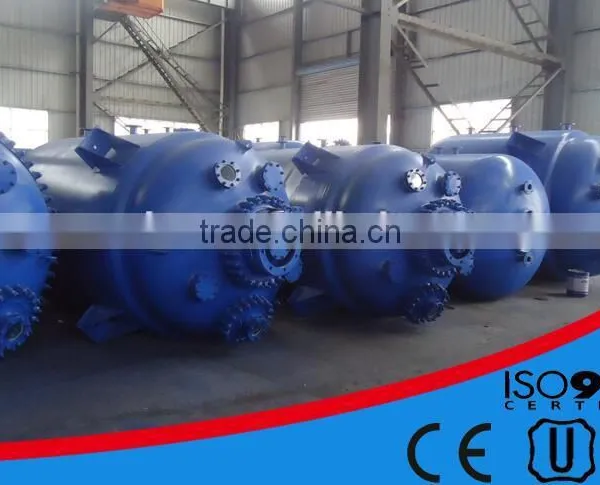

Glass-Lined Reaction Tank
is widely used in the petroleum, chemical, light industry, pesticide, pharmacy, dyestuff, the food processing industry.
Specification as below
1. Design pressure: 0.1-1.0Mpa
2. Operating pressure:0.1-1.0
3. Design temperature: 0~200 °C
4. Operating temperature: 0-200 °C
5. Glass layerthickness:0.8~2.0mm
6. Capacity: 50—50000L
7. Dimensions:shell DN from 50mmto 4500mm,height from 600to 10000 mm length
8. Agitator: paddle / turbine / frame/anchor/ impeller / wing type axial-flow /combination also can supply according customers requirement
9. Speed reducer: planetary cycloid pin gear reducer / helical gear reducer / bevel gear reducer / variable speed reducer mechanical controlled
10. seals: Padding seal (0.2Mpa),Single mechanical seal (0.4Mpa) , Double mechanical seal (0.6Mpa, 1.0Mpa)
10. Resistance to sharp temperature variation: Cool shock 110°C
hot shock 120°C
11. If the the Equipment pressure surpasses 1.0Mpa, and the temperature under 0 °C or above 200 °C, we will design specially.
Advantage of our Glass-Lined Reaction Tank:
1. Glass powder techn ical is come from USA, which is better than most china factory.
2. Unique glass-lining formula ensure high anti-corrosion performance
3. Most client choose from bigginning till now.
4. The designated visiting enterprise of 21st international enamel congress.
