Help CenterLiquid Oxygen Storage Tank
Related Products
-
ASME Crude Oil Storage TankUS$ 1,000,000 - 3,000,000MOQ: 1 Set -
3000m3 Oxygen Spherical TankUS$ 1,000,000 - 3,000,000MOQ: 1 Set
-
LNG Cryogenic Double Wall Storage TankUS$ 200,000 - 1,900,000MOQ: 1 Set
-
ASME LNG Spherical Storage Tank Made by a China ManufacturerUS$ 1,000,000 - 3,000,000MOQ: 1 Set
-
Competitive Price Widley Used Spherical Storage LPG Gas TanksUS$ 1,000,000 - 3,000,000MOQ: 1 Set
Liquid Oxygen Storage Tank Product Application

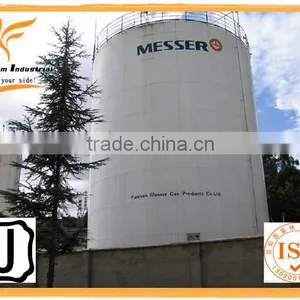

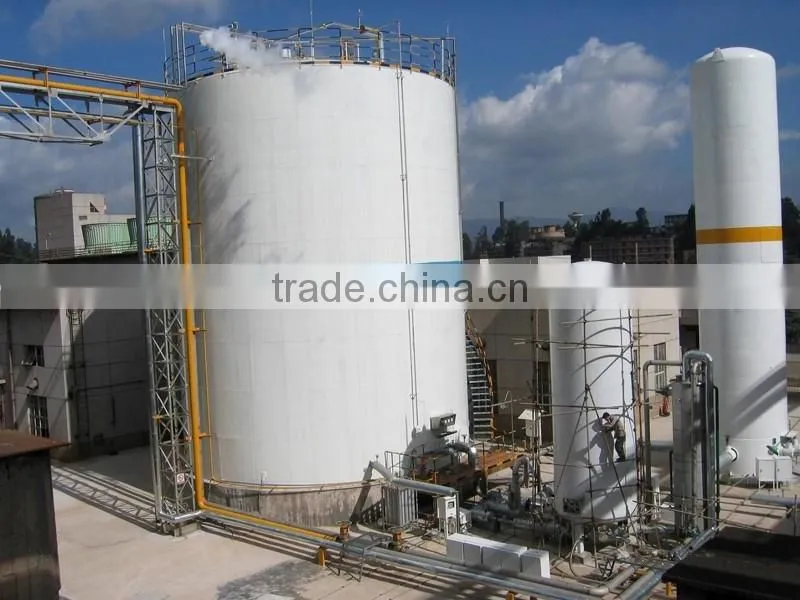

Big Cryogenic tank, Double wall tank.For liquid Oxygen, liquid nitrogen, liquid argon, liquid Gas
GB150, ASME, EN standard.
It is widely used for liquid oxygen ( LOX / LO2 ), liquid nitrogen ( LIN ), liquid argon ( LAR ), liquid carbon dioxide ( LCO2 ), and liquid natural gas ( LNG ), and etc.
Water volume: 200M3 - 35000M3
Working pressure: 0.8Mpa, 1.6Mpa, 2.0Mpa, 2.2Mpa, 2.4Mpa etc.
Main Features

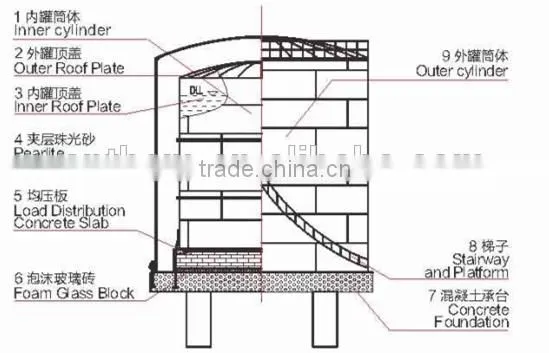

Inner Vessel ----stainless steel for cryogenic temperatures with optimized design for light weight.
Outer Jacket----carbon steel outer with a combined leg and lifting lug system designed for safe transport ,easy lifting and low cost erection.
Insulation a proven high quality vacuum- perlit system ensures long term vacuum performance, backed by a 3 years warranty on vacuum integrity.
Liquid Nitrogen Tank Piping----stainless steel piping for reliability and durability; ergonomically designed layout with flow diagram and gauges at eye level..
Valves----modular configuration bronze valves with welded-on connections (other valves, such as stainless steel and/or screw-on connections are optional)
Pressure Control---an easily adjustable multifunction regulator serves as pressure regulator, economizer and check valve, An aluminum pressure building coil is standard, Other types of PBUs, including high capacity PBU or stainless steel core vaporizers are optional.
Instrumentation----high quality pressure gauge and differential pressure contents gauge are standard with optional switches, transmitter and /or telemetry unit.
Safety---tanks are equipped with dual relief valves with a variety of options, including additional relief valves and /or rupture discs, Easily accessible valves and safety relief valve outlets directed away from the operating area.
ASME Design Liquid Nitrogen Tank--- We has been awarded ASME certificated, which is widely accepted all over the world. Cryogenic Liquid Tank
Liquid LNG Tank,LPG tank

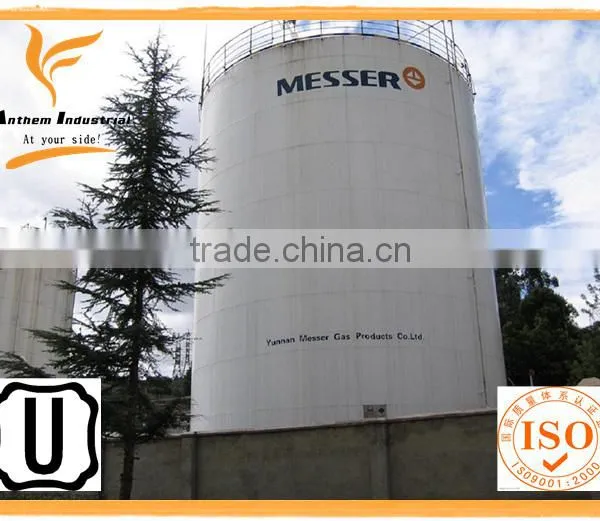

Major Clients: Messer, Airliquid, Airproducts,yinde, and other international famous company
Machine Parts

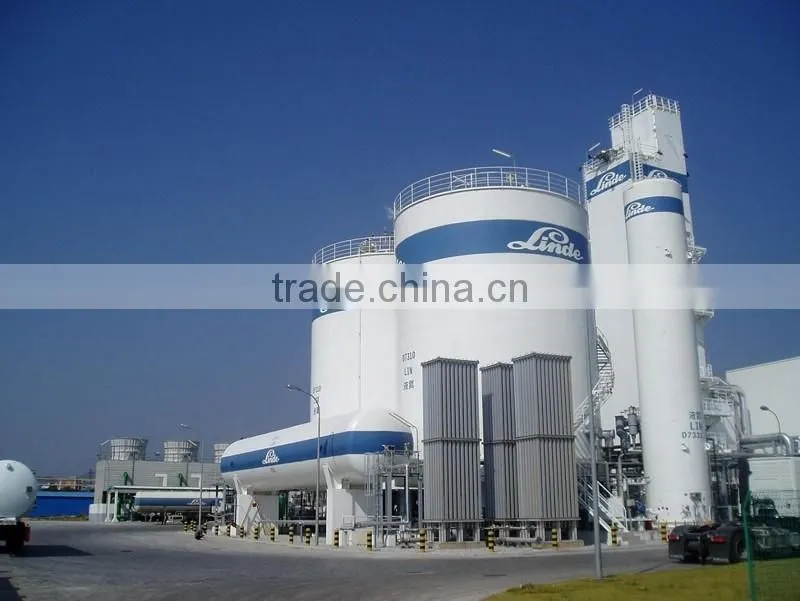

Name: Cryogenic Storage Tank
Brand: YDVC
Original: China
Double wall, with pearlite layer
Main Features
Name: Automatic Cutting
Original: China
Automatic cutting to guarantee size accurate.
Machine Parts

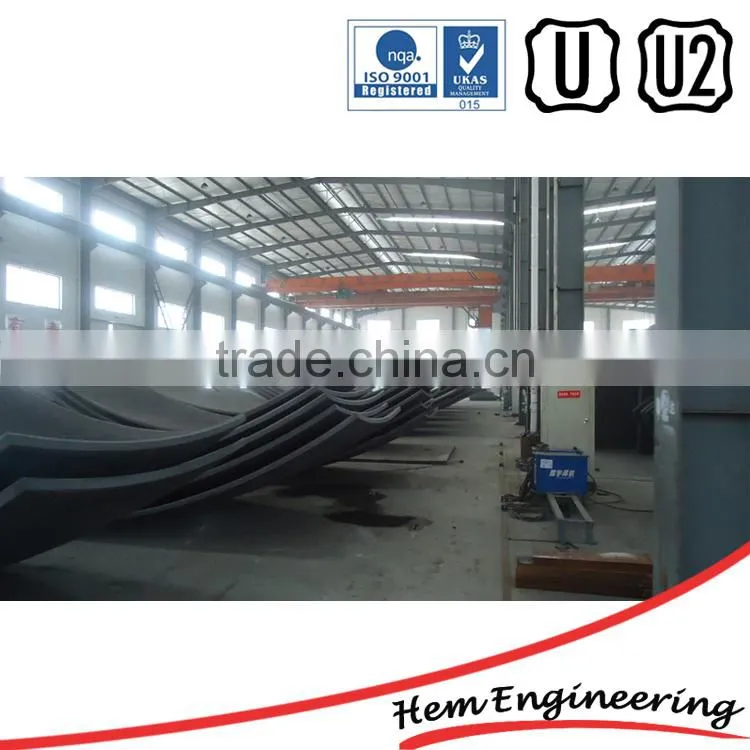

Name: double wall tank plate
Brand: YDVC
Original: China
We could design, fabricate, tranpsport, install for crygenic tank, double wall tank.
Pre-Sales Service
* Design for drawing.
* Free consultant service.
* reasonable commerical proposal.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
