Specifications
1.JW500 concrete/cement batch plant2.High efficient batch
3.Short cycle batch
4.Long life batch plant
Mixer
Main Technical Parameters:
Model |
Dia. Of Cylinder (m) |
Cpacity(kg/cylinder) |
Power(kw) |
weight(kg) |
JB130 |
1.3 |
100 |
5.5-4 pole |
500 |
JB150 |
1.5 |
150 |
7.5-4 pole |
800 |

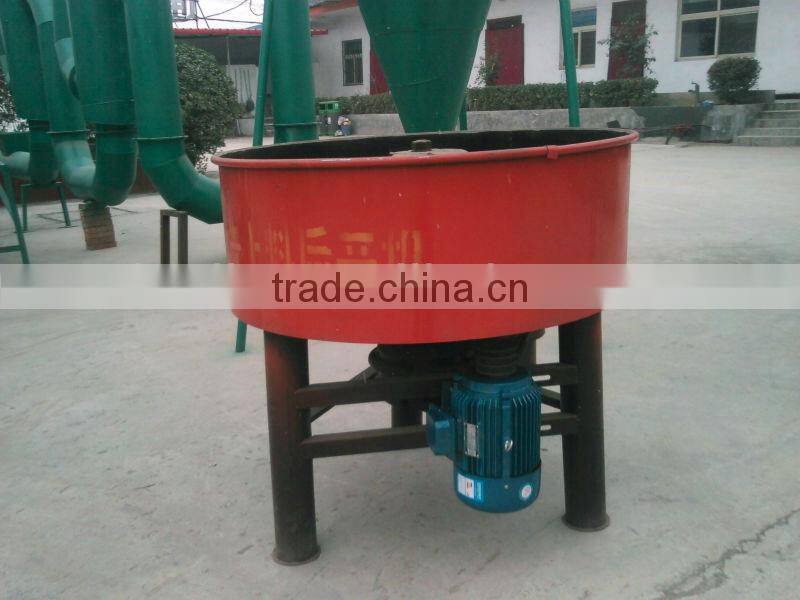

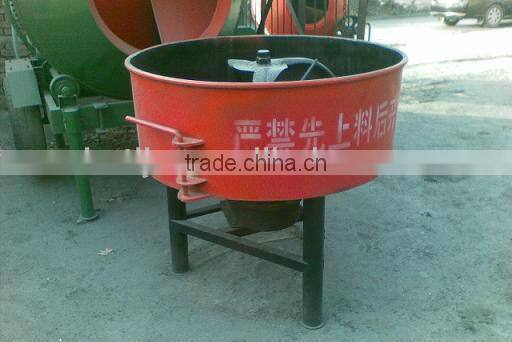

PanMixer
Pan mixers are specially designed sturdy in construction and easy for maintenance to mix the sand and other coarse aggregates. The Green Sand mixed in sand mixer improves the finish and strength due to attrition exerted by the pressure of the cast iron rollers.
The quality of mixing is ensured by inner and outer scrappers and C.I. Rollers. The roller pressure can be adjusted by compressed springs. Best quality and tested raw materials re used and hence long life is ensured even at high working rate.
Shell : Shell is protected with resisting replaceable bottom plates and the side walls Within the zone of the scrappers are provided with renewable and adjustable.
Scrappers : The inner and outer scrappers are so designed that one brings the mix
A material under the roller and the other takes out. The scrappers are braced With tungsten carbide tips or fully hardened special steel.
Rollers : The rollers are made up of special casting fitted with antifriction bearings, oil Seals and ‘O’ rings to last long
Drive : Electric motor coupled to worm reduction gear box through ‘V’ belts.
Loading of
Raw materials : Manual or by skip loader.
Unloading of Mix : Bottom discharge through sliding door operated by rack and pinion manually or motorized.
Optionals : a. Raw materials loading skip charger.
b. Discharge door motorized opening and automatic closing
c. Built in aerator is driven by motor.
d. Discharge door is operated by pneumatically.
