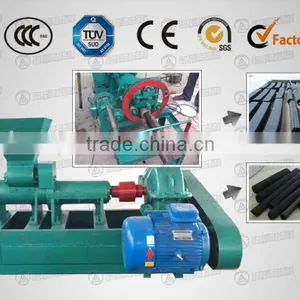

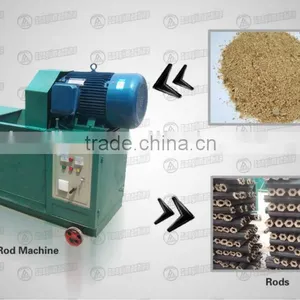

Professional charcoal rod machine / briquette making machine for BBQ
WhatsApp:008613937134928
Skype:tonglimachine2
Wechat ID:TongLiMachine
Website:
1, Raw material of charcoal briquette machine
Sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.
2, Features of charcoal briquette machine
Making briquette is fast(the briquette is 60cm/20s), Large extrusion density, propeller with special wear-resistant materials, precision casting, life was over ten times more rapid than conventional.
Forming the sleeve with a specially formulated alloy casting, life span of a year. This sophisticated technique not only lowers the cost greatly but also saves manpower.
3, Working principle of charcoal briquette machine
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The self bonding of biomass to form a briquette involves the thermo plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
4, Technical parameters of charcoal briquette machine
Model |
ZBJ9-60 |
ZBJ9-70 |
ZBJ9-80 |
Capacity |
200-240kg/h |
280-350kg/h |
350-380kg/h |
Power |
15+4.5kw |
18.5+4.5kw |
18.5+4.5kw |
Weight |
620kg |
680kg |
750kg |
Diameter of briquette |
60mm |
70mm |
80mm |
Spare parts |
Propeller, Forming tube, Heating ring |
||
Shapes of finished product |
Hexagonal and Square |
||
Raw materials |
Moisture (8-12%), Diameter(3-5mm) |
||
5, Product Flow of charcoal briquette machine
1. Crushing the raw materials into size no bigger than 5mm.
2. Dry the crushed materials to 8-12%.
3. Pressing to raw material into briquette.
8, Finished products
