Briquette machine for hot sale / ball press machine
Introduction of our machine:
Our charcoal making machine,with advanced technology, reliable quality and strong pressure, is suitable
for large, medium and small enterprises to establish a production line with certain production scale.
Mainly used for processing charcoal/coal dust, sludge, coke breeze, cooking coal, refractory materials
and metallurgical powder cold-pressing ball, and some powder materials that are difficult to shape.
The machine is widely used in fireproof industry, power plant, metallurgy, chemistry industry, etc.
Advantages and superiority:
Materials molded by our machine have the characteristics of energy-saving, environmental protection and easy to transport, and improve the utilization of waste, having
good economic and social benefits. Our machine also have these functions: reducing dust, controlling the volume, recycling, improving
transportation characteristic, etc. After years of industrial use and improvement, our ball press machine have these obvious advantages:
high rate of ball making, low power consumption, compact structure and easy maintenance compared
with other similar products.
Main parameters
Type |
Power |
Capacity |
Rollers’ width |
Rollers’ diameter |
Weight |
Qxjx290 |
5.5kw |
2T/h |
200mm |
290mm |
0.75T |
Qxjx360 |
7.5kw |
4T/h |
250mm |
360mm |
1.67T |
Qxjx400 |
11-15kw |
6-8T/h |
250mm |
400mm |
2.7T |
Qxjx500 |
18.5-22kw |
8-15T/h |
300mm |
500mm |
4.1T |
Qxjx650 |
22-30kw |
18T/h |
330mm |
650mm |
5.7T |
Qxjx750 |
55kw |
25T/h |
400mm |
750mm |
8.9T |
Qxjx850 |
75kw |
45T/h |
500mm |
850mm |
11T |
Production line in words
Picture of production line
Formation and working principle:
Formation: our charcoal making machine consists of three parts: the feed section, the transmission
part and the molded part.
The working principle of the charcoal briquette machine is:
firstly, the motor transmits power to transmission through the belt;
at the same time, the transmission output shaft power to propeller through the floating coupling;
then, the thruster of propeller push forward coal through forming die to produce the high density coal balls.

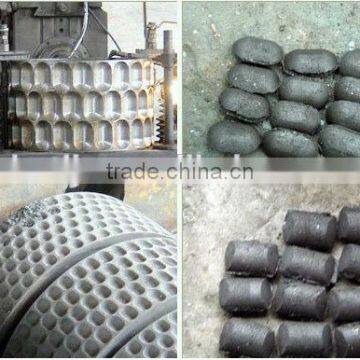

Finished products
There are some basic informations aboutour machine, if you want to know more, please contact freely.
Skype:tonglimachine2
WhatsApp:008613937134928
008613592505674
Wechat ID:TongLiMachine
