CM550-54w 3G zigbee Modbus RTU gateway z-wave rs232/rs485 & i/o

 Design for Industrial Application

1. High-powered industrial cellular module
2. High-powered industrial ZigBee module
3. High-powered industrial 32 bits CPU
4. Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
5. Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
6. Housing: iron, providing IP30 protection
7. Power range: DC 5~35V

8. Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
9. RS232/RS485/RS422 ports:15KV ESD protection
10. SIM/UIM port: 15KV ESD protection
11. Power port: reverse-voltage and overvoltage protection

12. Antenna port: lightning protection(optional)

 Standard and Convenience

1. Adopt terminal block interface, convenient for industrial application

Stability and Reliability
1. Support hardware and software WDT
2. TTL logic level RS232 interface can be customized
3. Support intellectual mode, enter into communication state automatically when powered
4. Provide management software for remote management
5. Support several work modes

6. Convenient configuration and maintenance interface

High-performance
1. Support data transfer by cellular and ZigBee network
2. Support TCP server and support multi TCP client connection(optional)

ZIGBEE Parameters:
Item	Content
Wireless module	use industrial ZIGBEE wireless module
Frequency Bands	2405MHZ  ~ 2480MHZ
Main Chip	CC2530F256+CC2591
Addressing Mode	64 bit IEEE address,8 bit IP address
Channel Access	CSMA-CA and CSMA-CA of time slot
Channel Number	16



Hardware system:
Item	Content
CPU	Industrial CPU,stable and reliable performance
MMU	CPU with MMU memory management unit, can prevent memory overflow exception
Flash	64Mbits, a large enough memory to store programs and data
SDRAM	256Mbits, a large enough cache to improve system operation speed
Operating System:
Item	Content
Operating System	Using LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable;
Interface Type:
Item	Content
Serial port	1 RS232 serial port  (supports RS422/TTL)
	Data bits: 5,6,7,8 bit
	Stop bits: 1, 1.5,2 bit
	Parity: none, odd , even , space and mark
	Baudrate: 110bps ~ 115200bps
Ethernet	1xLAN(One 10/100 Base-T Ethernet ports), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection.
USB	1xUSB, USB2.0, HOST interface, speed at 12Mbps
Indicator	“POWER”,  “Link / ACT”,“COMM” and “ONLINE”
Antenna Interface	Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers.
UIM interface	1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
Power Interface	Block interface,power supply over-voltage protection and reverse current protection.
Analog input	Resolution:16 bit,input voltage(-10V-+10V),input current(0-20mA),sampling rate(1.365kSPS),Accuracy±0.5% or better
Switch input	Input range(0-3.3V low level,5-30V high level)conatins all the way count function(1KHz)
Relay output(dry contact)	Drive ability 5A/30VDC,5A/250VAC
Optocoupler digital output	Open collector output,Max  30V,max current 40mA,Max power 125mW
Optocoupler PWM output	Open collector output,Max  30V,max current 40mA,Max power 125mW,output frequency 0-1KHz,adjustable duty cycle
Power supply:
Item	Content
Supply voltage	Wide voltage design, DC 7V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection

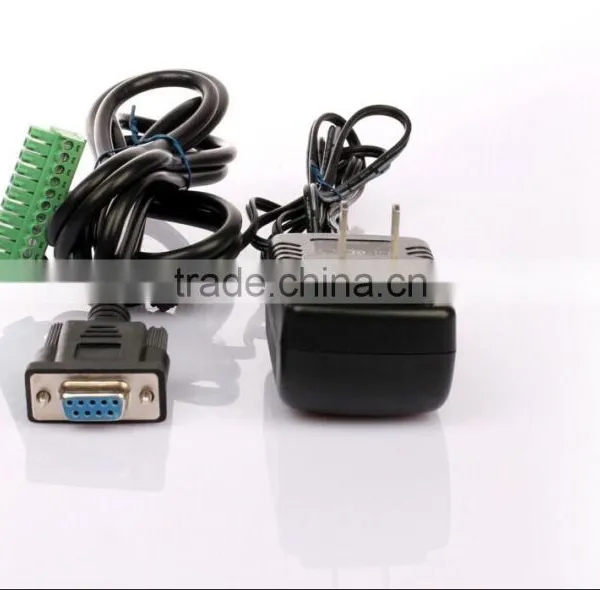

Standard power supply	DC9V/1.5A
Current while Communicating	Average communication current :200mA @ +9 VDC;
	Communicating  instantaneous peak current: 1.0A @ +9 VDC
Standby current	Standby average current:0.15A@+9VDC
Physical features:
Item	Content
Shell	Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30;  particularly suit for harsh industrial control environments.
Product Dimensions	167*104*26mm(not including the antenna and the fixed parts)
Packing Size	350*215*88mm
Weight	0.52Kg
Other parameters:
Item	Content
Operating Temperature	-25ºC ~+75ºC
Storage Temperature	-40~+85ºC
Relative  Humidity	95%(No condensation)
