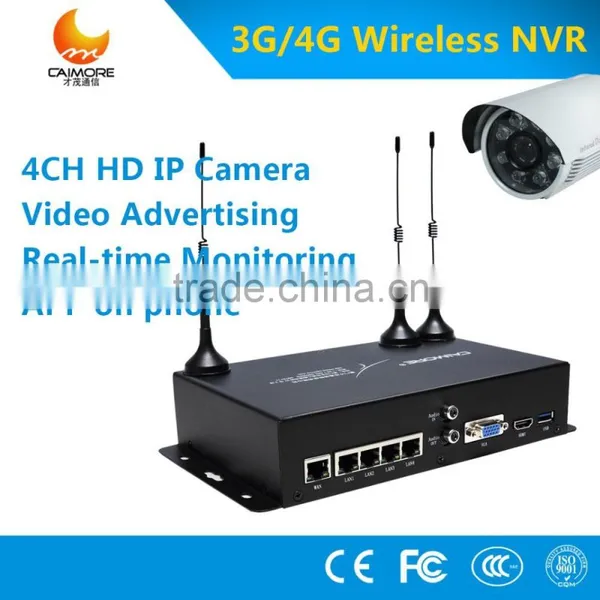

CM530-82F 4G FDD ip Nvr 4ch Dome Camera Home/office/store Use P2P Wireless 2mp ip Camera KIT Wifi hd 2mp 1080p Dome ip Camera
US$ 368 - 445
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Caimore
Model Number:
CM530-82F
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CM530-82F 4G FDD Mobile NVR Standalone DVR H.264 4ch Full D1 Realtime Usb DvrUS$ 368 - 445MOQ: 2 Sets -
3G Mobile NVR Support Real Time Video Monitor GPS Track, IO, G-sensor for ATM,koisk,vending Machine MonitoringUS$ 426.3 - 426.3MOQ: 1 Set
-
3G Mobile NVR System Support 3G/4G Opitional to Connect IP Camera to Remote MonitorUS$ 426.3 - 426.3MOQ: 1 Set
-
4 CHANNEL GPS 3G 4G SD CARD MNVR for Security With IP CameraUS$ 426.3 - 426.3MOQ: 1 Set
-
3G Mobile Digital MNVR for Video Recorder 4ch Mnvr HD for Remote ControlUS$ 426.3 - 426.3MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Caimore
Model Number
CM530-82F
CM530-82F 4G FDD ip nvr 4ch dome camera home/office/store use P2P wireless 2mp ip camera KIT wifi hd 2mp 1080p dome ip camera
Product Description
Product Feature
- 4CH real-time video and recording with 720P/1080P HD resolution.
- The video encryption function
- Automatically to switch Ethernet or 3G/4G wireless communication.
- voice intercom; GPS positioning option; alarm function
- Manual capture, timed capture, lock linkage capture
Support 3G/4G wireless router function
The phone / PC unit wall image viewing
-
Support remote configuration, remote upgrades, remote centralized management
Easily and effectively to combine a networking with the expressing box,
vending machines, ATM machines, AD player, and automatic cabine
Specification
| Cellular Parameters | |
| Item | Content |
| Cellular | LTE-FDD/HSPA+/UMTS/HSDPA/HSUPA/WCDMA/EDGE/GSM |
|
Standards and frequency bands (FDD) |
LTE FDD: 2600/2100/1800/DD800MHz |
| UMTS: 2100/900MHz | |
|
RxDiv Band: UMTS 2100/900MHz LTE FDD 2600/2100/1800/DD800MHz | |
| RxDiv Band:UMTS 2100/900MHz LTE TDD 2600/2300MHz | |
|
Communication bandwidth (FDD) |
LTE FDD:DL 100Mbps/UL 50Mbps |
| DC_HSPA+:DL 42Mb/s(Category 24) | |
| HSPA+:DL 28Mb/s(Category 18) | |
| HSDPA: DL 14.4Mb/s(Category 8) | |
| HSUPA+:DL 5.76Mb/s(Category 6) | |
| WCDMA CS:UL 64kbps/DL 64kbps | |
| WCDMA PS:UL384kbps/DL384kbps | |
| Transmit power | WCDMA/HSDPA:24dBm LET:23 dBm |
| Receiver sensitivity | <-109dBm |
| Function support | Support data, voice, SMS and fax |
| Video Parameters | |
| Item | Content |
| Wireless Network Transmission | LTE-FDD/HSPA+/UMTS/HSDPA/HSUPA/WCDMA |
| Video Compression Standards | H.264 |
| Video Resolution | 1080P/720P(Optional) |
| Total Resources | 1080P@100fps;720P@100fps |
| Video Input Channels | 4CH |
| Video Input Interface | BNC(Level:1.0Vp-p,impedance:75Ω) |
| Video Frame Rate | 1-25 frame/s(adjustable) |
| Stream Type | Video streaming/(video/Audio)composite stream(dual-stream) |
| Compression Output Rate | 6K~1M(ajustable) |
| Video Output Channels | 2 CH CVBS output, can directly connect to TV or monitor |
| Video speed | 960H @ 25fps;4D1 @ 25 fps |
| Audio Input Channels | 4CH |
| Audio Input Interface | RCA connector (Level: 2Vp-p,impedance: 4.7kΩ) |
| Audio Compression Standard | G.726/G.711A |
| Audio Compression Rate | 16Kbps |
| Talkback Input/Output | 1Group |
| GPS Parameters | |
| ITEM | CONTENT |
| GPS Module | Use industrial GPS wireless module |
| Receiver type |
Receive GPS,48 channels, Frequency L1 , chip speed 1575.42MHZ,C/A code, chip speed 1.023MHZ. |
| Positioning accuracy | Positioning:2.5m CEP SBAS:2.0m CEP |
| Speed accuracy | Speed accuracy < 0.01m/s(high speed)<0.01° (heading),( 50 % @ 30 m/s ) |
| Capture time | Cold start: 35S,Auxiliar start <3S;Hot start:1S |
| Output informaiton | NMEA,UBX BIN:GGA GSA GSV RMC VTG GLL |
| Navigation data update rate | 1Hz |
| Sensitivity | Track:-163dBm;Navigation:-160dBm;Acquisition:-147dBm |
| Operating limit | Speed:500m/s Height:50000m |
| Hardware system | |
| Item | Content |
| CPU |
Industrial high-performance embedded processingARM9, 400MPS, with 16KB Dcache, high-speed cache data speed up data access , with 16KB Icache, high-speed instruction cache, enhanced instruction processing speed |
| MMU |
CPU with MMU memory management unit, can prevent memory overflow |
| Flash | 32Mbits , have enough memory to store programs and data |
| SDRAM |
256Mbits, a large enough cache to improve system operation speed |
| Operating System | |
| Item | Content |
| Operating System |
Using LINUX operating system with memory management unit and real-time feature, fast upgrades and stable system |

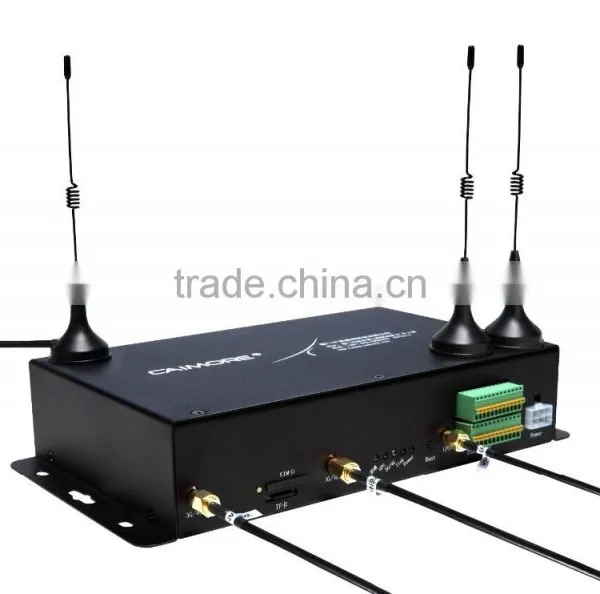

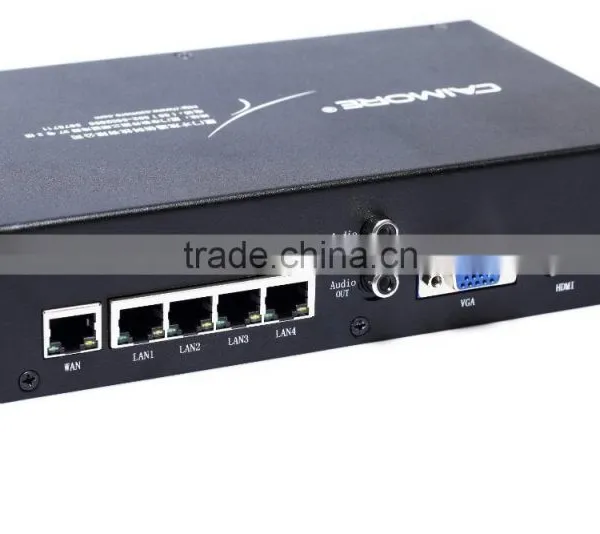

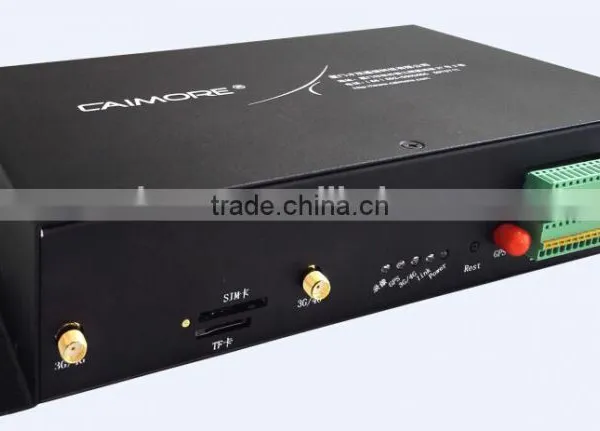

| Interface Type: | |
| Item | Content |
| Video input/output | 4 video signal input ,2 CVBS output |
| Audio input/output | 4 CH audio input,1 audio output |
| Alarm and I/O |
7 CH Opticoupler isolation high/low trigger input, 2 CH high/low trigger output, 1 CH switch/dry contact output |
| TF card | 1 TF card,max 128G |
| Hard disk | 1 SATA hard disk,max 2T |
| WAN port | one WAN port (Line0), supports PPPOE |
| Ethernet | 4 10/100M Ethernet |
| Serial port | 1 RS232 and 1 RS485 |
| Data bit: 7,8 bit | |
| Stop bits: 1, 2-bit | |
| Parity: none parity,even,odd | |
| Serial speed: 110-230400bps | |
| Flow Control: None flow control | |
| HDMI | Yes |
| VGA | Yes |
| USB interface | one USB interface, USB2.0, HOST interface, speed at 12Mbps |
| Indicator LED | “POWER” , "3G","4G","GPS",“LINK ”"RECORD" |
| Antenna Interface | 1 3G/4G antenna,1 GPS antenna |
| UIM interface | 1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection |
| Power Interface | Standard 3-pin vehicle power jack |
| RESET button | Reset button to restore factory settings |
| Power supply: | |
| Item | Content |
| Supply voltage |
wide voltage power supply design, adaptive range of power is from DC5V to DC35V,built-in power reverse supply protection and over-voltage and overcurrent protection |
| Standard power supply | DC12V/2A |
| Communication Current | Average communication current : 400mA@+12VDC |
| Communicating instantaneous peak current:1.5A@+12VDC | |
| Standby current | Standby average current: < 230mA@+12VDC |

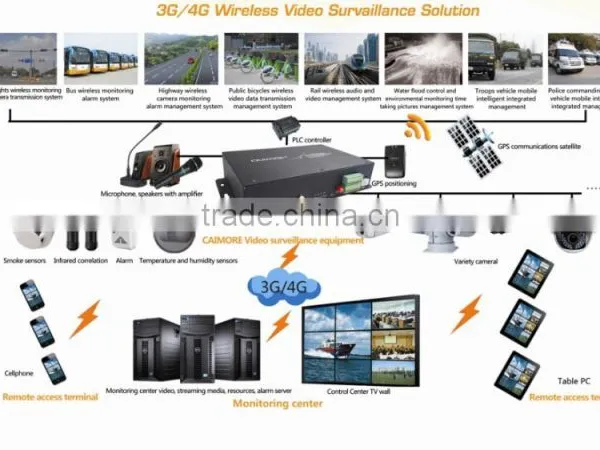

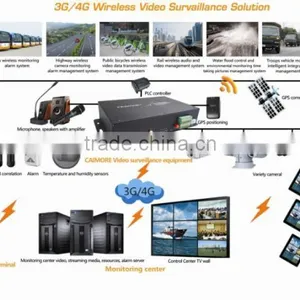

Topology
