Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > Mobile DVR Wireless Industrial Grade 3G WCDMA IN CCTV DVR

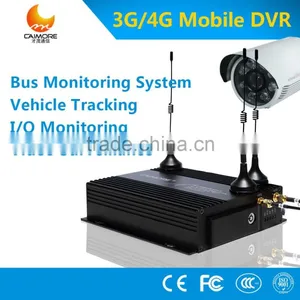

Mobile DVR Wireless Industrial Grade 3G WCDMA IN CCTV DVR
US$ 260 - 400
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Caimore
Model Number:
CM530-62W
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GPS 3G WCDMA WIFI 4CH MDVR for Fleet Management SystemUS$ 220 - 258MOQ: 1 Piece -
Mobile DVR for School Bus Security SolutionUS$ 220 - 258MOQ: 1 Piece
-
Mobile Hard Disk for School Bus Security SystemUS$ 220 - 258MOQ: 1 Piece
-
GPS Mobile Car Recorder for Bus Surveillance SolutionUS$ 220 - 258MOQ: 1 Piece
-
Mobile Car Recorder DVR for Bus Surveillance SystemUS$ 220 - 258MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
Caimore
Model Number
CM530-62W

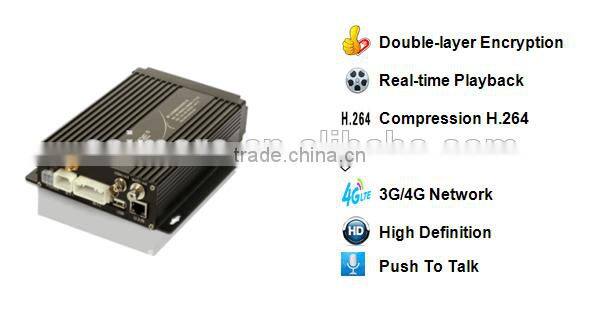

Mobile DVR wireless industrial grade 3G WCDMA IN CCTV DVR
Product Description

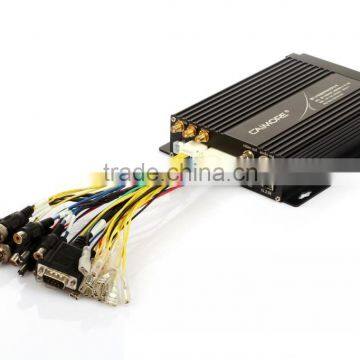

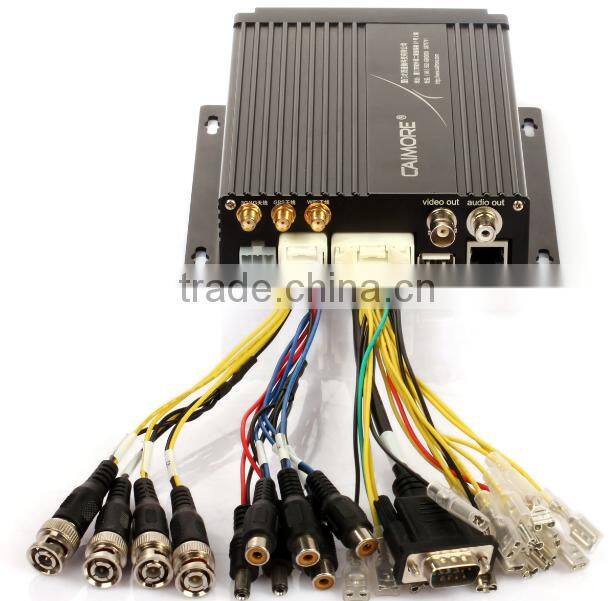

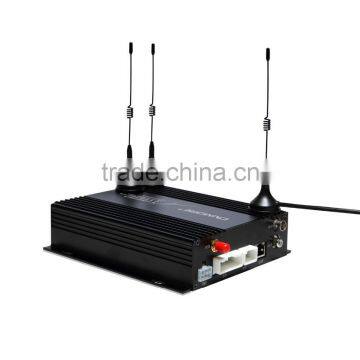

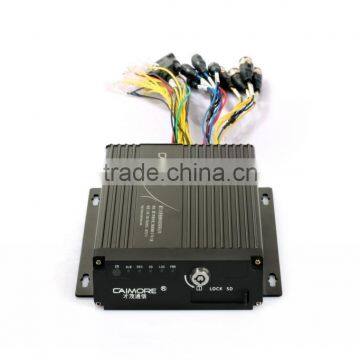

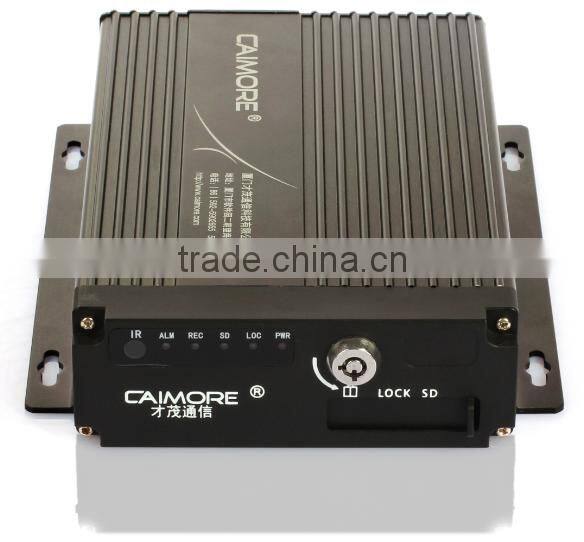

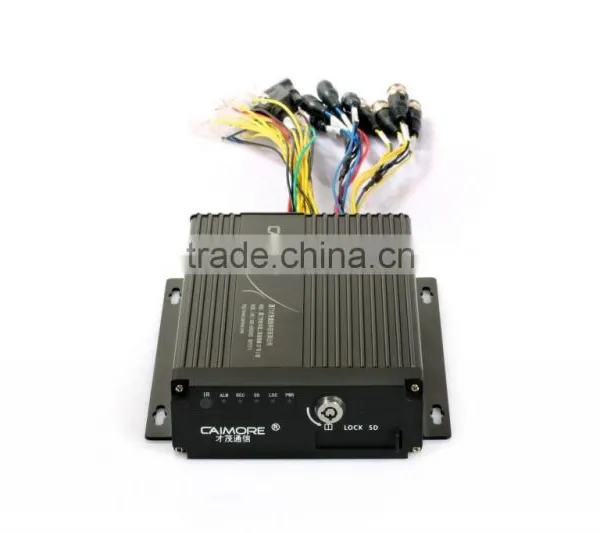

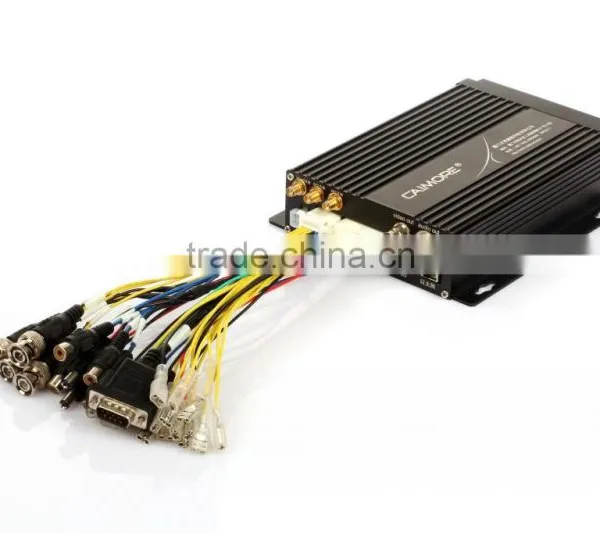

Product View
Detail specifications
| Cellular Parameters | |
| Item | Content |
| Cellular | WCDMA/EDGE/GPRS/CSD mode |
| Standards and frequency bands (WCDMA) | Supports UMTS/HSDPA/WCDMA 850/1900/2100MHz |
| Dual-band EGSM 850/900/1800/1900MHz | |
| Supports GPRS/EDGE CLASS 12 | |
| Communication bandwidth(WCDMA) | HSDPA/HSUPA mode:Downlink up to 7.2Mbps,Uplink up to 5.76Mbps |
| WCDMA mode:Downlink/Uplink up to 384Kbps | |
| Transmit power | <24dBm |
| Receiver sensitivity | <-109dBm |
| Function support | Support data, voice, SMS and fax |
| GPS Parameters | |
| ITEM | CONTENT |
| GPS Module | Use industrial GPS wireless module |
| Receiver type | Receive GPS,48 channels, Frequency L1 ,chip speed 1575.42MHZ,C/A code,chip speed 1.023MHZ. |
| Positioning accuracy | Positioning:2.5m CEP SBAS:2.0m CEP |
| Speed accuracy | Speed accuracy < 0.01m/s(high speed)<0.01° (heading),( 50 % @ 30 m/s ) |
| Capture time | Cold start: 35S,Auxiliar start <3S;Hot start:1S |
| Output informaiton | NMEA,UBX BIN:GGA GSA GSV RMC VTG GLL |
| navigation data update rate | 1Hz |
| sensitivity | Track:-163dBm;Navigation:-160dBm;Acquisition:-147dBm |
| Operating limit | Speed:500m/s Height:50000m |
| Video Parameters | |
| Item | Content |
| Wireless Network Transmission | TDD LTE/FDD LTE/HSPDA/WCDMA/EVDO/TD-SCDMA |
| Video Compression Standards | H.264 |
| Video Resolution | 960H(960x576),D1(704*576)&CIF(352*288) |
| Total Resources | 960H @ 25fps;4D1 @ 25 fps |
| Video Input Channels | 4CH |
| Video Input Interface | BNC(Level:1.0Vp-p,impedance:75Ω) |
| Video Frame Rate | 1-25 frame/s(adjustable) |
| Stream Type | Video streaming/(video/Audio)composite stream(dual-stream) |
| Compression Output Rate | 6K~1M(ajustable) |
| Video Output Channels | 1 CH CVBS output, can directly connect to TV or monitor |
| Video speed | 960H @ 25fps;4D1 @ 25 fps |
| Audio Input Channels | 4CH |
| Audio Input Interface | RCA connector (Level: 2Vp-p,impedance: 4.7kΩ) |
| Audio Compression Standard | G.726/G.711A |
| Audio Compression Rate | 16Kbps |
| Talkback Input/Output | 1Group |
| Hardware system | |
| Item | Content |
| CPU | Industrial high-performance embedded processingARM9, 400MPS, with 16KB Dcache, high-speed cache data speed up data access , with 16KB Icache, high-speed instruction cache, enhanced instruction processing speed |
| MMU | CPU with MMU memory management unit, can prevent memory overflow |
| Flash | 32Mbits , have enough memory to store programs and data |
| SDRAM | 256Mbits, a large enough cache to improve system operation speed |
| Operating System | |
| Item | Content |
| Operating System | Using LINUX2.6 operating system with memory management unit and real-time feature, fast upgrades and stable system |
| Power supply: | |
| Item | Content |
| Supply voltage | wide voltage power supply design, adaptive range of power is from DC5V to DC35V,built-in power reverse supply protection and over-voltage and overcurrent protection |
| Standard power supply | DC12V/2A |
| Communication Current | Average communication current : 550mA@+12VDC |
| Communicating instantaneous peak current: 1.5A@+12VDC | |
| Standby current | Standby average current: < 65mA@+12VDC |
| Physical features: | |
| Item | Content |
| Housing | Metal case: metal case, anti-radiation, anti-interference; case and system security isolation, lightning protection design; meet the power requirements of safety regulations, protection rating IP41; particularly suit for harsh industrial control environments. |
| Product dimensions | 190x145x40mm(not including the antenna and the fixed parts) |
| Packing Size | 320x205x80mm |
| Weight | 0.48kg |
| Other parameters: | |
| Item | Content |
| Operating Temperature | -25ºC ~ +70ºC |
| Extended operating temperature | -35 ºC~+75ºC |
| Storage Temperature | -40~+85ºC |
| Relative Humidity | 95%(No condensation) |

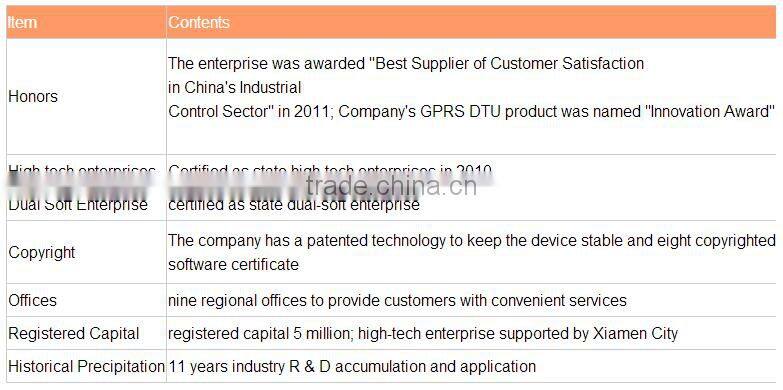

Certification and Honor
