Home > Industrial Equipment & Components > Valve > Ball Valve > Factory Price Personalized High Quality 2-way Solenoid Valve

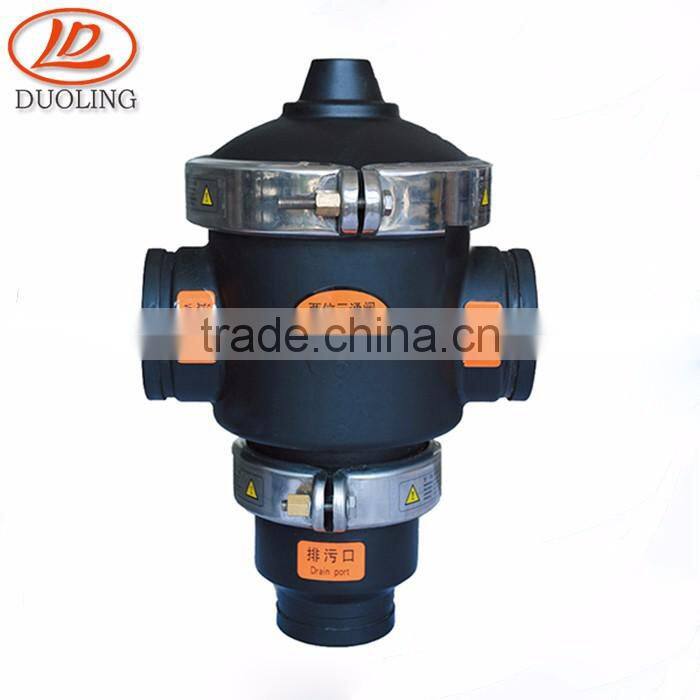

Factory Price Personalized High Quality 2-way Solenoid Valve

Name: Factory Price Personalized High Quality 2-way Solenoid Valve
Brand: Duoling
SKU: 138274841
Availability: InStock

Factory Price Personalized High Quality 2-way Solenoid Valve thumbnail-1

Factory Price Personalized High Quality 2-way Solenoid Valve photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Structure:

Diaphragm

Pressure:

Medium Pressure

Power:

Hydraulic

Contact Supplier Request Quote Chat Now

Changzhou Duoling Water Treatment Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Structure Diaphragm

Pressure Medium Pressure

Power Hydraulic

Material Plastic

Temperature of Media Normal Temperature

Media Water

Port Size 2" 3" 4" 5" 6"

Place of Origin Jiangsu, China

Model Number solenoid valve

Brand Name Duoling

Product Description

2 Position 3 Way Valve Coupling Connection

Type	Inlet	Outlet	Drain	a	b	c	d	e
DN80-B	3”	3”	2”/2.5”/3”	219	204	252.4	126.2	126.2
DN100-A	4”	4”	3”/4”	172	172	315	187.4	127.6
DN100-B	4”	4”	4”	280	240	315	157.5	157.5
DN125-B	5”	5”	4”/5”	267	253	315	157.5	157.5
DN150-B	6”	6”	6”	286	286	388	194	194

PS: 2”=60.3mm;2.5”=76.1mm,3”=89mm;4”=114.3mm;5”=140mm;6”=165mm

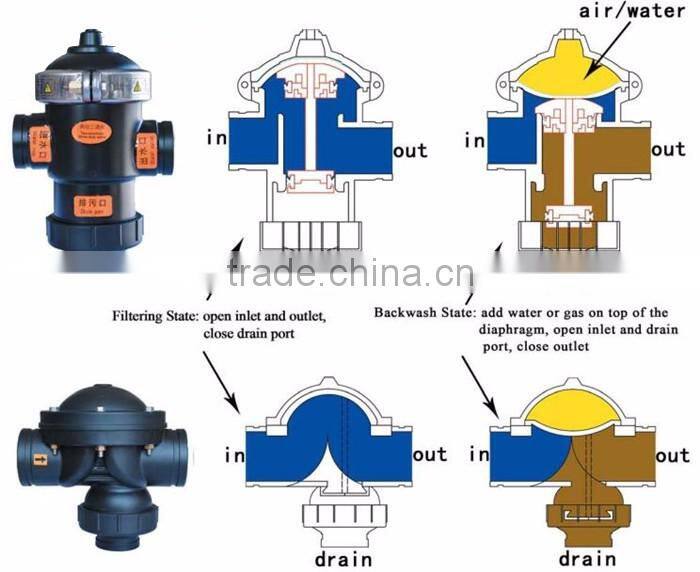

Control Valve for Backwash of Filter / 2 Position 3 Way valve

This valve is widely used in automatic backwash disc filtration system, driven by the pressure of pipelines and realize filter’s backwash automatically. It is simple-structured, practical, and can run for a long time without maintenance. The diaphragm can change the direction of stream quickly and stably. When backwash inlet is open, the water inlet is closed, or vice versa. It can avoid overflow of filter or mixing of clean water and waste water.

Features of 2 Position 3 Way Valve:

1. It can be used in sand filters, replacing two sets of electric or pneumatic valves, easy to be controlled;

2.Made of PA6 (Nylon) material, max working pressure is 1.0MPa;

3. Clamp connection, easy installation and removal;

4. Never rust, corrosion resisting, can be used in weak acid environment;

5. Good aging resistance, can be used in the open air;

6. Switch quickly, good operation stability;

7. Easy to replace parts, low maintenance costs;

8. The diaphragm is made of advanced rubber material which has good elasticity, between rubber is the imported high strength net cloth with good rebound performance;

9. With the bilateral dovetail waterproof rubber seal ring, it prevents water leakage of operation;

10. With the hold hoop on top, it’s much safer and is convenient to change the parts inside;

11. External uses professional nylon paint treatment, excellent appearance.
