Specifications
1. Lower investment and higher profit2. No pollution
3. Lifelong service after sale
Hot-selling waste plastic recycling machine
1. The main parts of

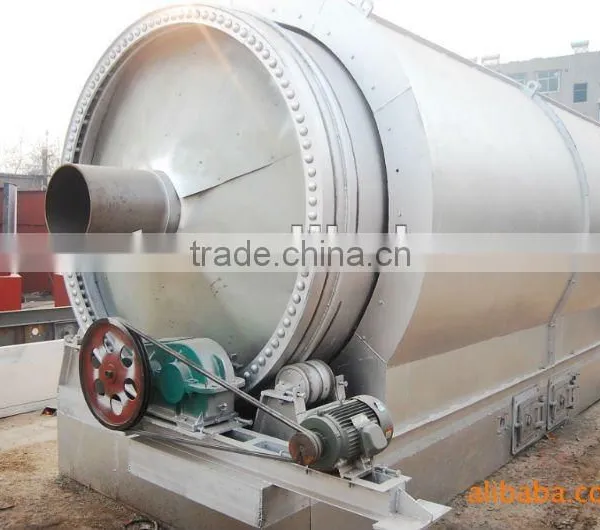

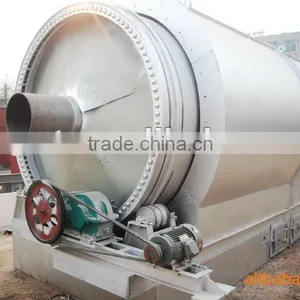

1.1. Rotary pyrolysis device
1.2. Automatic security environmental protection slagging system
1.3. Oil steam cyclone dust removal device
1.4. Quick condensing system
1.5. Waste gas purifying and reclaim burning system
1.6. Heat source supply system
1.7. Heat source environmental protection system
1.8. Central electronic control system
2. Technological Process
Crush waste tires and send them to rotary processor with negative pressure to catalyze and heat in order to get oil steam; oil steam shall pass light and heavy oil steam separator; light oil steam shall enter into the condenser and meanwhile residues shall be discharged automatically in succession. the liquefied part shall be condensed to rubber oil; and the part that cannot be liquefied shall be input into heating supply system for burning by way of combustion gas purification system.
3. Environmental Protection
Treatment of the three wastes in the course of production.
1. Exhaust gas
By means of the two safety devices: water seal and gas nozzle , to eliminate pollution , which can saves a lot of fuel; for Soot emissions ,use water spraying desulfurization filter, which can remove the sulfur and meet the GB13271-2001 boiler air pollutants emission standard.
2. Waste liquid
Faintly acidic waste water shall be produced in the course of treatment of oil products (about 50 kg/ton oil, small volume and tractable); after neutralization by adding faintly alkaline liquid, the neutral waste water shall be harmless with three-grade filtration and be discharged into special evaporation processor to vapor (heat source is the flue residual heat of main processor).
3. Waste solid
The residue left after pyrolysis of waste tires is carbon black; there is no waste solid left
