2015new good price Numerical Control Rebar Straighten and cutting Machine 0086 15238032864

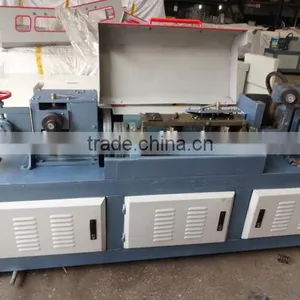

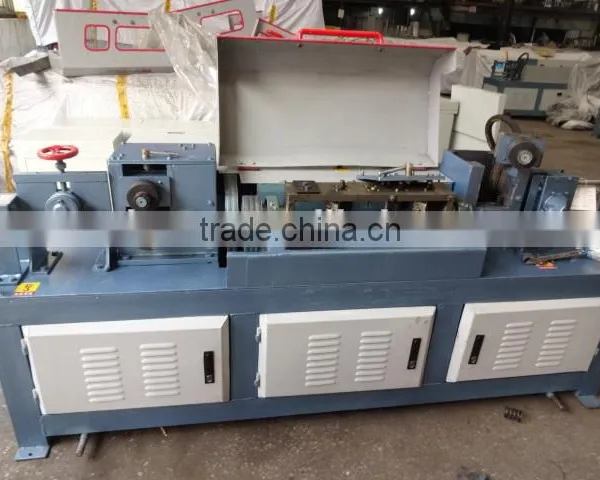

Rebar Straightening and cutting Machine
Rebar Straightening and cutting Machine for bar is used to straightening galvanized wire or rebar with 4mm-16mm, and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine. So it is widely accepted to the factory who is dealing wire wires and wire mesh. Also widely used in construction area.
No. |
Item |
Specifics |
1 |
|
Φ6-14mm round steel |
2 |
|
Φ6-12mm currogated steel |
3 |
cutting length |
500mm to up |
4 |
cutting error |
±1cm |
6 |
speed |
38m/min |
7 |
straighten motor power |
11KW |
|
traction motor |
5.5KW |
8 |
voltage |
380V/50HZ/3phase |
9 |
straightening degree |
±2mm/m |
10 |
whole weight |
1500KG |
14 |
control box |
CNC control box |
Q : What's the Application scope ?
A : Hot rolled steel,cold rolled steel , low carbon steel, copper wire up to Φ6mm
Q :What's the main function ?
A : 1. Unwinding steel from the coils
2. Straightening steel
3. Cleaning surface of steel
4. Cutting into length (according to the established length)
Q : What's the Quick wear parts of Rebar Straightening and cutting Machine ?
A : Material feeding part; straightening wheels; traction wheels; cutting blades

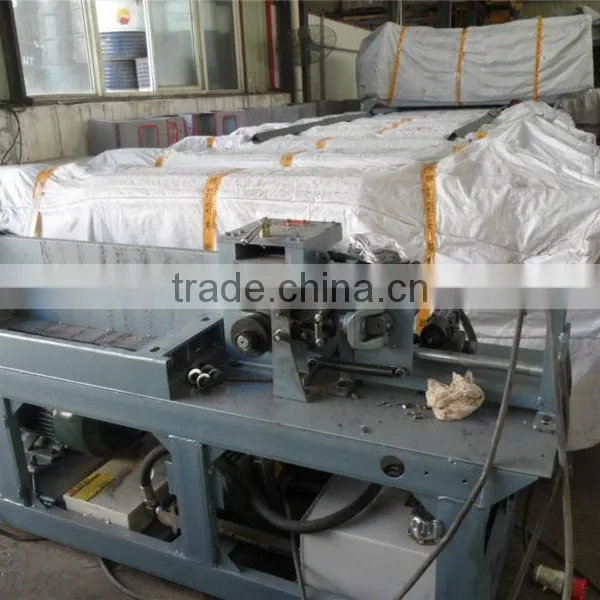

Wooden case
1.One year warranty for whole machines.
2.Providing free quick-wear partc.
3.Low charge for continue maintenance when warranty is expired.
4.Exclusive engineer support at any time.
5.We can provide free training to end-users
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
