Rolling Mill With Fly Shear
US$ 20,000 - 20,000,000
/ Set
1 Set(Min. Order)
- QingDao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | HengYuan | |
| Model Number | ZGJ-1 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Billets size:100x100mm or 120x120mmFinal products: 8-32mm deformed bar
or wire rod :5.5-8mm or section steel
Top quality
Main introduction
Billets size:100x100mm or 120x120mm
Final products: 8-32mm deformed bar
or wire rod :5.5-8mm or section steel
Rolling mill
Roughing rolling mill ---middle rolling mill ---Final rolling mill
The following is one example of one type rolling mill detail technical data
| Name | Description | Specification | Weight |
| fly wheel: | 1300×1200 | 4T | |
| 250three rollers rolling mill | roller dia:270×600 | 1000×1000×1250 | 10T |
| 250two rollers rolling mill | roller dia:270×500 | 1000×1000×950 | 10.5T |
| ZD60reducer | center distance:600 | 1280×960×1200 | 3T |
| man-type gear box | center distance :250 | 1000×1000×1250 | 4.5T |
| rolling gear box | 1650×1000×950 | 8T | |
| universal shaft | 12PCS | 700 length | 2T |
| connecting parts,guide parts | two package | 1000×1000×500 | 2T |
| water pump 2sets | 1T | ||
| fan 10sets | 1T | ||
| motor | 245KW 1set | 1500×750×750 | 3T |
| 90KW 1set | 1500×750×550 | 2T | |
| Electric control box | 2sets | 600×800×1500 |

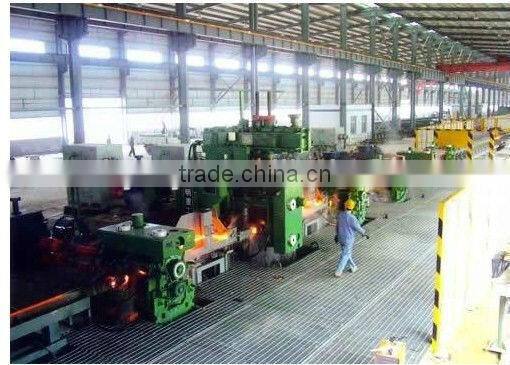

The following picture is in operating
