High Quality Wood Pellets Mill Making Line

If match whole line pellets mill, we need  to match it from the beginning of the crusher

hammer mill

Model:FS-6 Hammer mill The final size: 1-6mm

Power: 18.5kw Capacity: 600-700KG/h

Size: 1.2x1.0x0.8mWeight: 600kg it is mainly for crush the wood chips, wood waste and so on, raw materials size could be less than7cm, final products size could be less than 5mm

The structure inside is the cutter and hammer

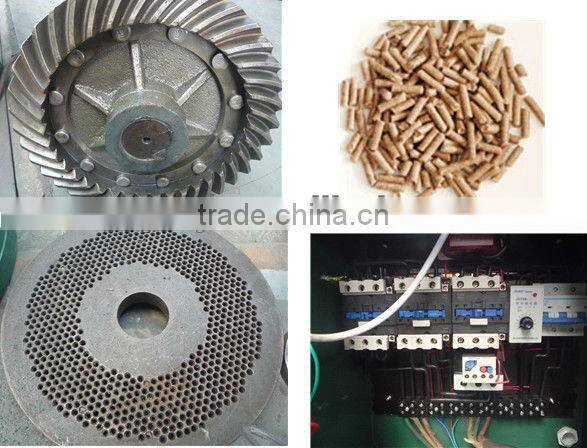

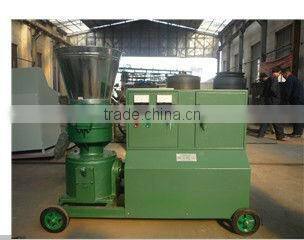

Pellets mill

Model: K-400 Capacity:900-1000kg/h Power:30kw

Size:1.27x0.52x1.07m

Three rollers type Weight:500kg

The KL serial granular fodder-processing machine can be powered by both diesel engine and E-motor. We adopt the new design of direct connection of motor shaft and the main shaft that overcome the loose defect of belt connecting as long time using. When the fodder is added in, the template, pressing roller and fodder will be heated to 60-80 °C by the friction among them. After being pressed through the template, the fodder will be thrown from the machine in a state of granular. You can choose the size of the granules by using different template with different size of holes in it.

Cooling system

The hot pellet materials are accumulated gradually in the middle storage house with the help of the material dispersing equipment. Let the pellets cool quickly

Capacity: 1.5-2ton The ambient cooling-air flows vertically through the discharge- mechanism and the layer of pellets

. If retention time and cooling air-flow settings are optimal,

an outlet temperature of the pellets of 2-5 ºC above the ambient temperature can be achieved.

Containing Following Parts:

*With one Air Lock at the top of Cooler; Model: SGFYm20, Powr: 0.75kW, 380V 50Hz; total power is:7.5kw Touching part are made of Stainless steel; *With One Set of Pellet Distributing Device;

*With Inspection Windows and door, easy to maintenance;

*With eight--square Cooler Body;

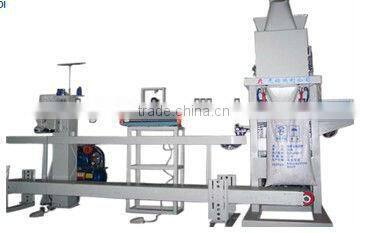

Package machine

1.Manual bag placing-->Auto filling-->Auto weighting-->Auto bag discharge-->Auto bag conveyor-->Semi-Auto Bag stitching 2.Precision: +/-0.2%

Packing speed : 140~180bags per hour

Weighing scale: 5~40kg per bag

Power Supply: 220Va.c and 4N-380Va.c,50Hz

Power Dissipation : 3.5kW Compressed , total: 7.5kw Air: 0.4MPa~0.6MPa Compressed

Air Consume: 0.5m3  per hour

conveyor and other systems

Welcome to contact with me at any time
