Stable Quality Screw Charcoal Press Making Line

Name: Stable Quality Screw Charcoal Press Making Line
Brand: HengYuan
SKU: 138256947
Availability: InStock

US$ 3,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

HengYuan

Gongyi Hengyuan Industry&Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name HengYuan

Model Number ZBJ-1

After-sales Service Provided Engineers available to service machinery overseas

screw charcoal press making line

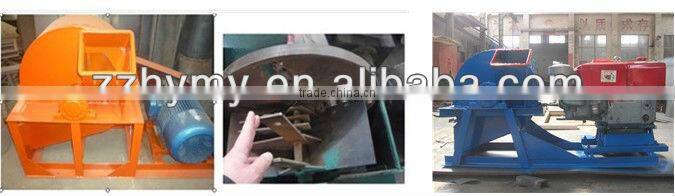

First step: crushing

If the raw materials is the wood chips, which size is bigger than 6mm, we need to crush them into sawdust,

we have two types crusher, wood crusher and hammer mill, the capacity is as following

Second step is to dry the raw materials, we have vertical and rotary dryer

Model	HGJ-4	HGJ-6	HGJ-7(rotary type)	HGJ-10(Rotary type)
Capacity	300-400kg/h	400-500kg/h	600-800kg/h	900-1200kg/h
Water evaporation quality	60-80kg/h	60-80kg/h	180-220kg/h	180-220kg/h
Consumption of wood	15-20kg/h	15-20kg/h	25-30kg/h	25-30kg/h
Working temperature in pipes	150-180°C	150-180°C	150-180°C	150-180°C
Input moisture	20-30%	20%-30%	30%-60%	30%-60%
Final drying	8-14%	8-14%	8-14%	8-14%
Barel diameter	400mm	600mm	700mm(rotary body)	1000mm(rotary body)

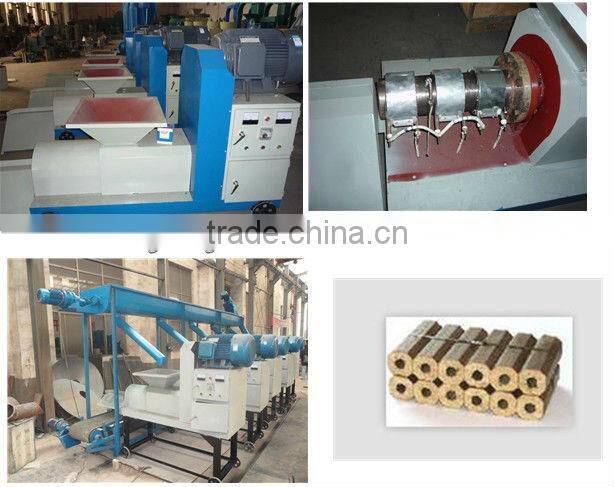

Third step is to making the briquettes

The final step is to making the charcoal, our furnace type is the new model, when has no smoke and no pollution when it works

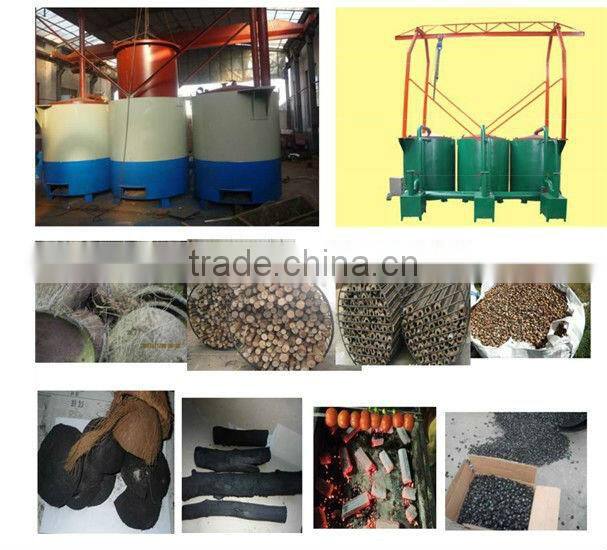

New model carbonization furnace
Main introduction	Capacity: get 3ton charcoal /24hours per set
	we could put 2ton raw materials per inner basket, the carbonizing time is 8hours per
	baskets, so we will carbonize 6ton raw materials, and get 3ton charcoal.
	Main structure: There has three inner baskets and main furnace per set,we also
	match hoisting tools or crane for operating.
	The furnace is our new design, also have the oil collecting tools
	How to operate: We put the inner basket into main furnace by hoisting tools
	or crane, after carbonizing 8hours, then take inner basket out, let it cool by nature
	at the same time, we put another inner basket inside, this is the continuouse process
