Water Sprinkler Irrigation Machine
Specifications:
Galvanized layer thickness |
100um(0.1mm) |
Pipeline diameter |
DN165mm (65/8inch) |
Pipeline thickness |
3mm(0.118inch) |
Min working pressure at the end |
1.5bar |
Tiepiece above the ground |
2.89m |
Tire size |
14.9x24 |
Tire Diameter |
1.2m |
Motor Power(KW) |
1.1KW AC |
Voltage |
3-phase 380V 50Hz |
Motor reducer velocity ratio |
40:1 |
Wheel reducer velocity ratio |
50:1 |
Sprinkler |
Nelson |
Sprinkler space |
2.48m |
Max walking speed |
2.5m/min |
Daily irrigation depth |
6-12mm/d |
Gradeability |
± 5~30° |
Features:
(1)world brand sprinkler applied (2)high wind resistance performance,with even water distributions
(3)monopile inlet mouth,improving anti-blocking (4)special demand customized
Components:

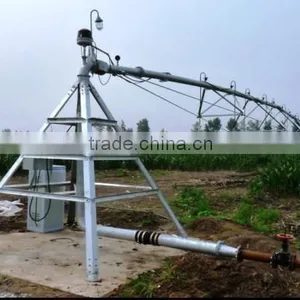

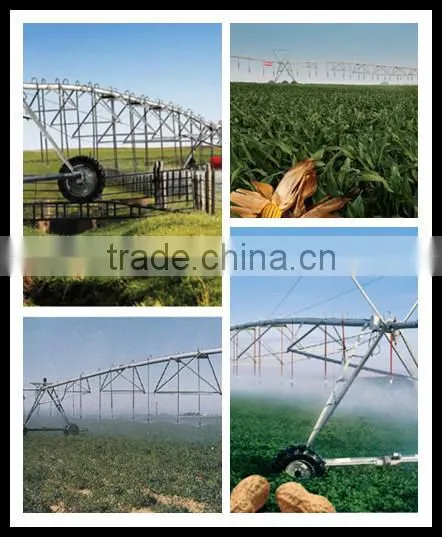

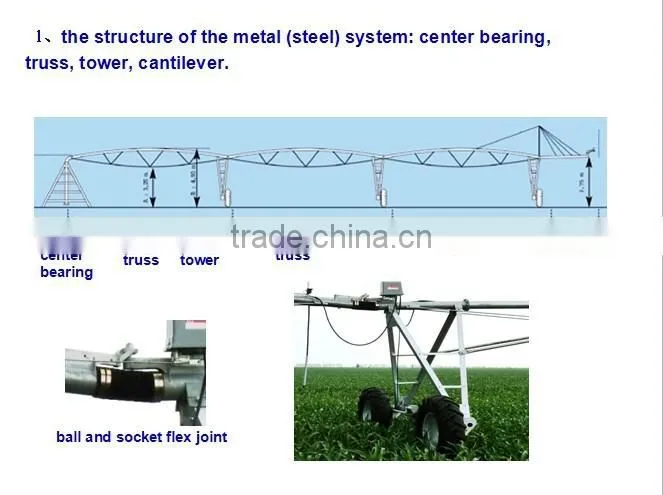

(1)center pivot irrigation system

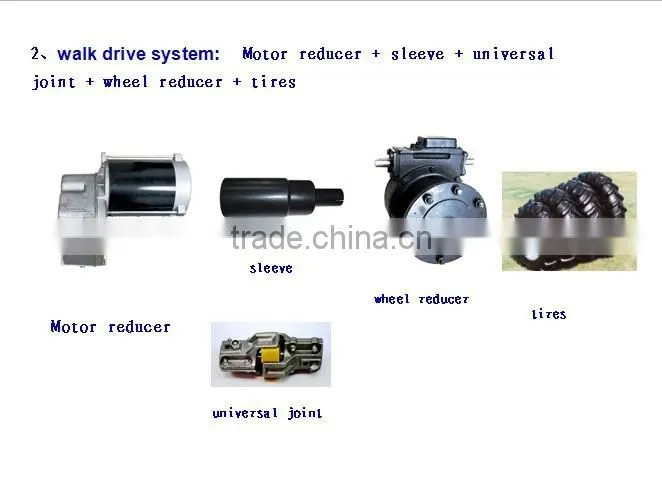

(2)drive unit

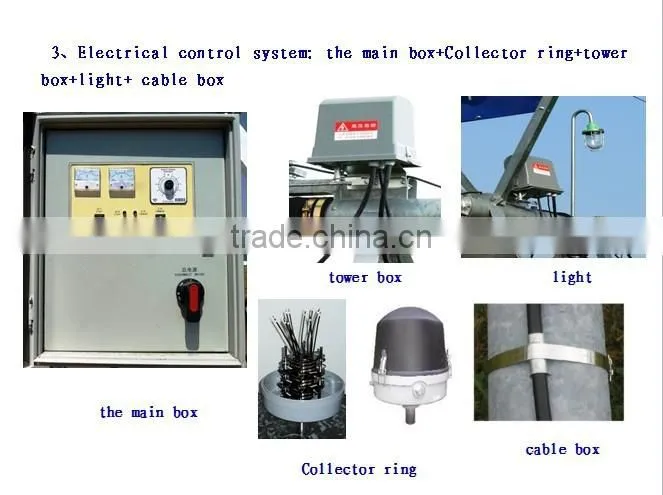

(3)electrical control system

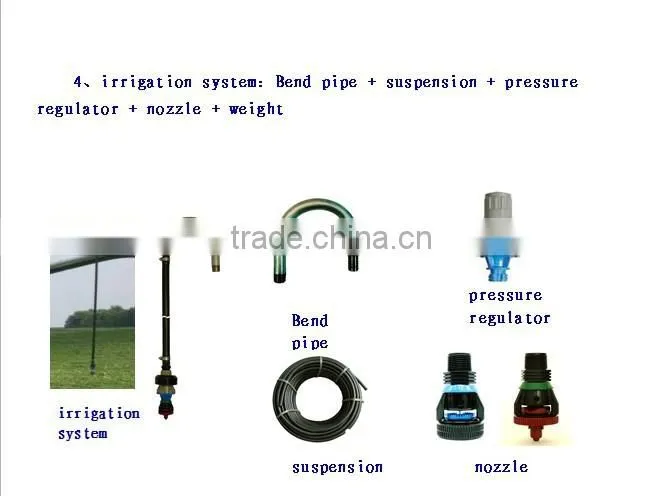

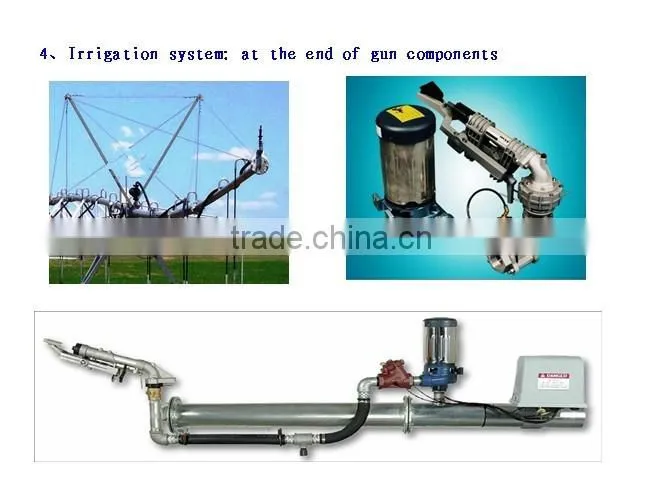

(4)irrigation system
