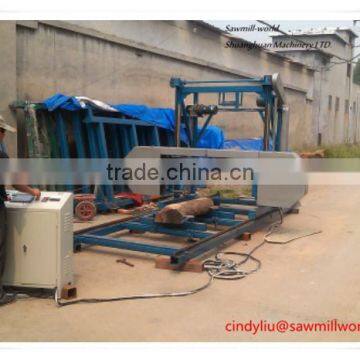

Sawmill Wood Cut Bandsaw Machine

Shandong Zouping Shuanghuan Machinery Manufacturing Co., Ltd.
Sawmill Wood Cut Bandsaw Machine thumbnail-1
Sawmill Wood Cut Bandsaw Machine thumbnail-2
Sawmill Wood Cut Bandsaw Machine thumbnail-3
Sawmill Wood Cut Bandsaw Machine thumbnail-4
Sawmill Wood Cut Bandsaw Machine thumbnail-5
Sawmill Wood Cut Bandsaw Machine thumbnail-6
Sawmill Wood Cut Bandsaw Machine photo-1

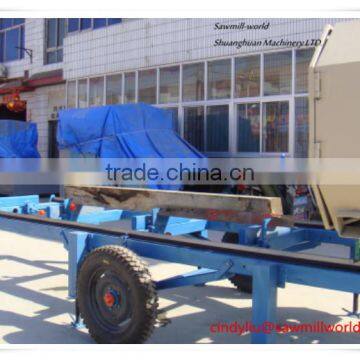

Sawmill Wood Cut Bandsaw Machine photo-2

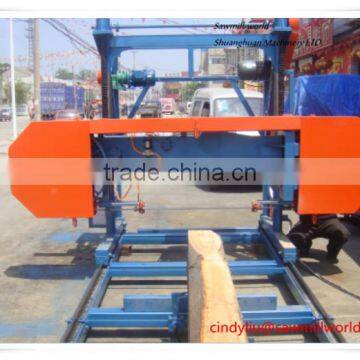

Sawmill Wood Cut Bandsaw Machine photo-3
Sawmill Wood Cut Bandsaw Machine photo-4

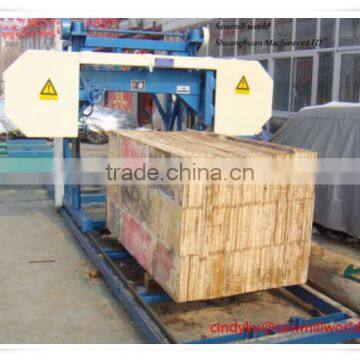

Sawmill Wood Cut Bandsaw Machine photo-5
Sawmill Wood Cut Bandsaw Machine photo-6
US$ 5,500 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Band Saw
Use:
Woodworking
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Band Saw
Use Woodworking
Style Horizontal
Place of Origin Shandong, China
Brand Name sawill world
Model Number MJ700
Usage woodworking
Voltage 380V
Power(W) 7.5kw
Dimension(L*W*H) 3250*3150*900mm
Weight 1100kg
Certification ISO
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Sawmill wood cut bandsaw machine

Portable horizontal band saw is used to cut wood logs into large square timber,various kinds of wood planks.The glancing flatness and  standardization of the sawn timber surface are high.The diameter of the logs range from 20cm to 3.5m.The length of the logs are unlimited,it depends on the length of the track.It is suitable for cutting large diameter wood logs.
                                                   PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL
Technical Parameter
MJ700E
MJ1000E
MJ1300E
MJ1600E
Max. Sawing Wood Diameter
700mm
1000mm
1300mm
1600mm
Saw Wheel Diameter
600mm
700mm
700mm
700mm
Max. Sawing Wood Thickness
260mm
300mm
300mm
300mm
Blade speed
20-25m/s
20-25m/s
20-25m/s
20-25m/s
Max. Sawing Wood Length
4500mm
4500mm
4500mm
4500mm
Main Motor Power
7.5KW
11KW
15KW
18.5KW
Lifting Motor Power
1.1KW
1.1KW
1.1KW
1.1KW
Rail length(standard model)
5900mm
5900mm
5900mm
5900mm
Total Weight(standard model)
900KG
1100KG
1300KG
1400KG

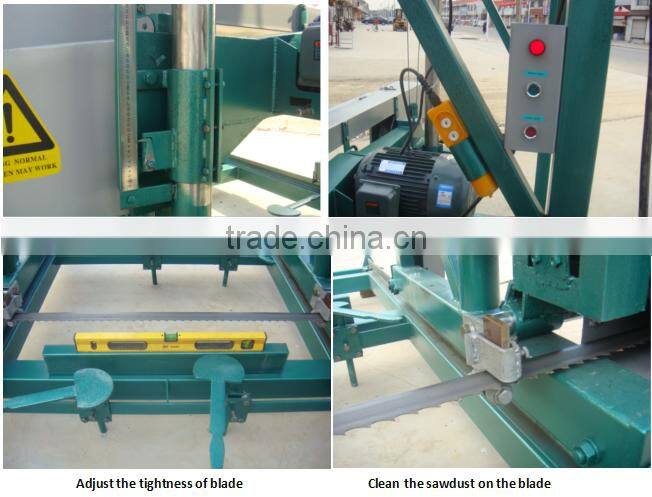

Detailed Images

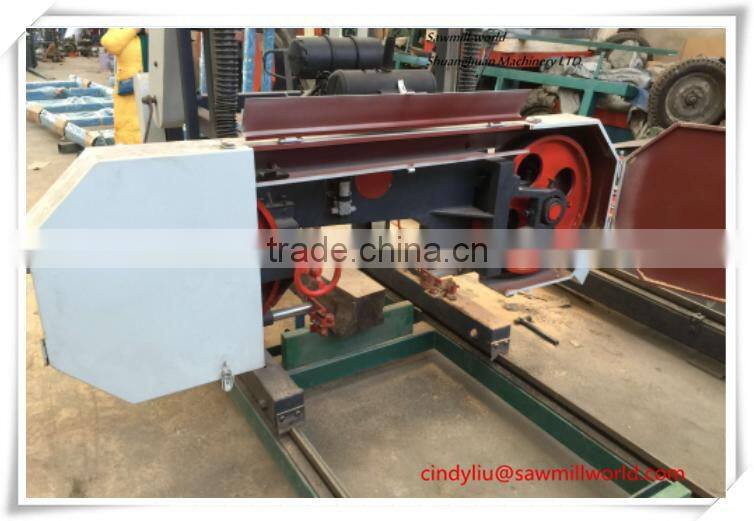

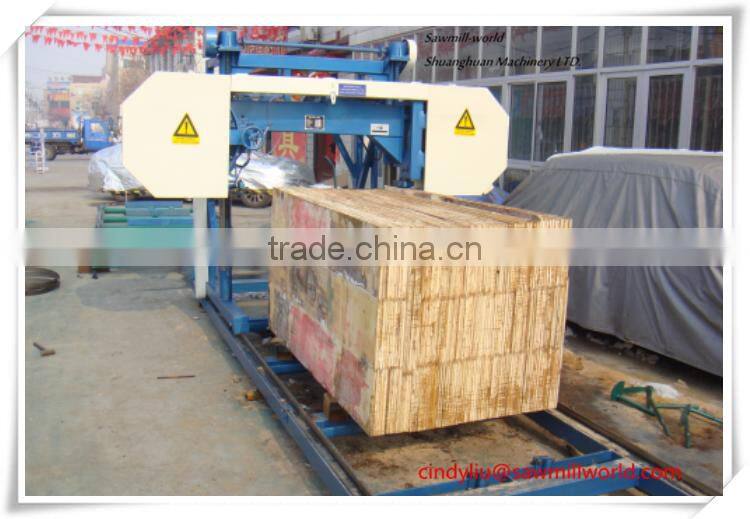

Double Cut Sawmill

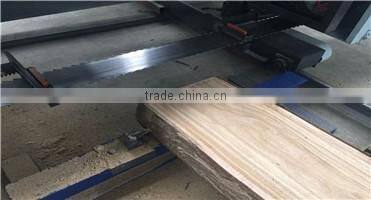

Double Cut Carbide Band Saw Blade

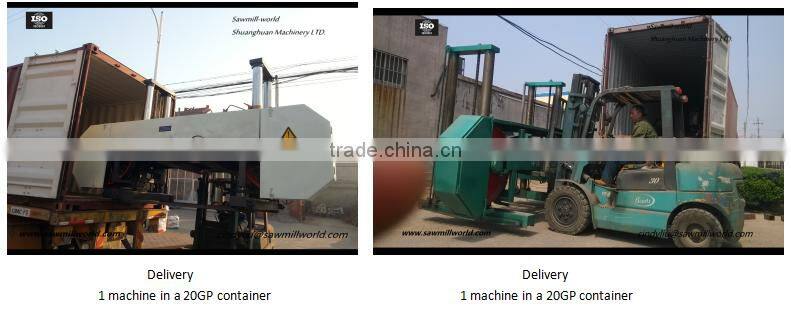

Packing & Delivery
Working Video

Horizontal Big Wood CNC Band Saw MJ3500

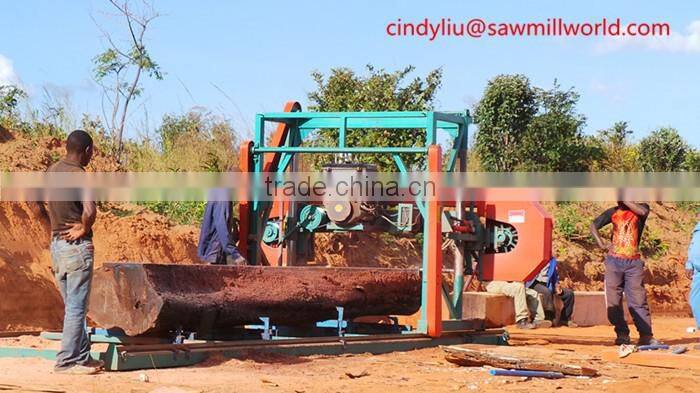

Large Size Wood Cutting Horizotnal Band Sawmill
/watch?v=Ouzf-y9DbNQ
Extend the rail length to cut 3 logs at one go.
/watch?v=qfvMJwVo2c8
Large Size Horizontal Band Saw For Hard Wood
/watch?v=14GqwxArr4E
Double Cut Large Wood Band Sawmill
https://youtu.be/8F_l6El1GA8

Auxiliary Machines

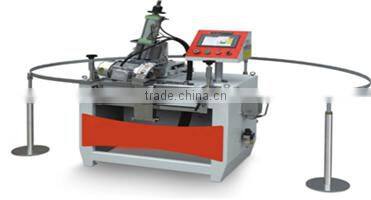

Automatic Band Saw Blade Sharpener For Carbide Blade

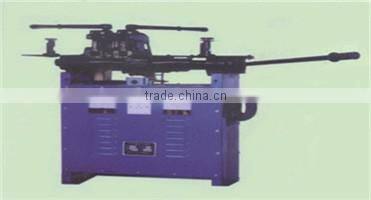

Flash Seal Welding Machine

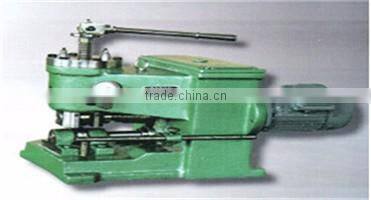

Band Saw Blade Roll Machine

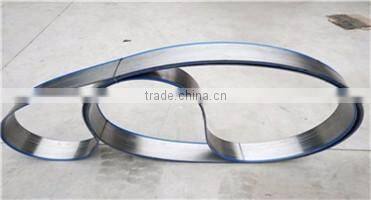

Carbide Band Saw Blade

Related Products

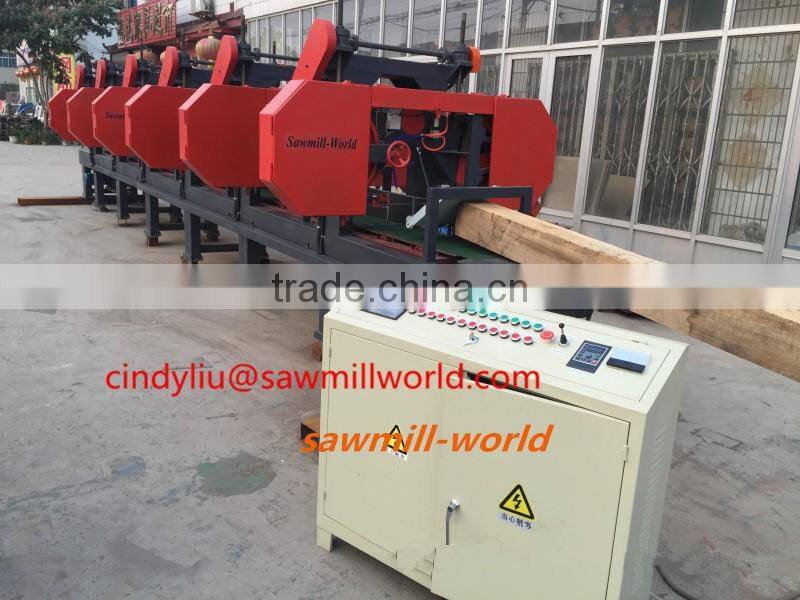

Multiple Heads Horizontal Resaw Band Saws

Heads Quantity From 1 to 6
Touch screen setting EACH sawing thickness.
Variable Frequency Speed Adjustable Feeding Conveyor

Full Automatic Band Saw

Max Sawing Wood Diameter:1000MM
Touch Screen setting sawing thickness,
Hydraulic Log Loader
Hydraulic Chain Turnover

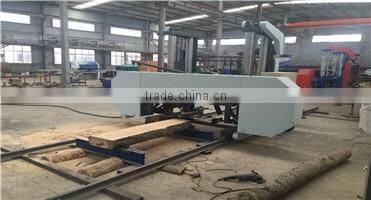

Large Horizontal Band Sawmill

Max Sawing Wood Diameter 1200-3500MM
Forward/backward: Manual or Electric
Setting Sawing Thickness:Electric/ Touch Screen

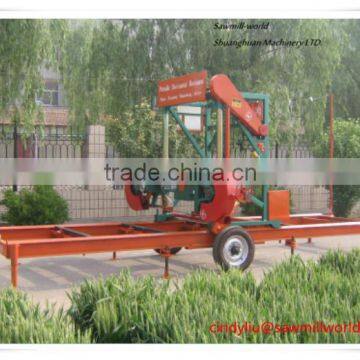

Portable Band Sawmill (Diesel Model)

Max sawing wood diameter 700-1600MM(27-60")
Manual Forward/backward &
Hydraulic Up/down for Setting sawing thickness
Easy to Install,Operate,Move around.
Popular in Virgin Forest Areas.

Precision Wood Horizontal Band Saw

Max sawing wood width:400-800MM
Max Sawing Wood Height:110MM
Min Sawing Wood Thickness:2MM

Low Cost /Cheap Price Portable Band Sawmill

Max sawing wood diameter 680 MM (27")
Manual Forward/backward &
Hydraulic Up/down for Setting sawing thickness
Power Option:Electric/Gasoline/Diesel
Certifications
Our Company

We are the Chinese leading manufacture and exporter of woodworking machines since 1985.

Our machines are highly trusted in:
Africa:Angola,Cameroon,Ivory Coast,Congo,Ethiopia,Gabon,Ghana,Gambia,Kenya,Mauritius,Mozambique,

Nigeria,South Africa,Tanzania,Zambia,Zimbabwe,Togo.
Oceania:Australia,New Zealand,Papua New Guinea,Fiji,Vanuatu,Solomon,
America:Brazil,Ecuador,Guatemala,Honduras,Nicaragua,Panama,Peru,Suriname,USA
Asia:India,Sri Lanka,Thailand,Burma,Vietnam,South Korea,Malaysia,Philippine,Qatar,Oman,Jordan,Kuwait
Europe:Russia,Turkey,Italy,Bulgaria,UK,Finland,Cyprus,Estonia

--
